Choose open-bed, enclosed-gantry or fully enclosed exchange-table machines around the material you actually process and how you load it.
AXIS & SENFENG FIBRE LASERS
Flat-Bed Fibre Laser Cutters
Compare AXIS and SENFENG sheet and plate cutters — from compact open-bed machines to enclosed exchange-table production systems and ultra-large-format plate lasers — by format, laser power and production requirement.
AXIS FLAT-BED RANGE
AXIS fibre laser cutters
AXIS machines are built as a matched BOCHU system — BOCI cutting head, CypCut or HypCut control and BOCHU motion — with a Maxphotonics G5 source as standard, partitioned suction on every bed, and wiring finished and verified to Australian Standards.
AXIS AT A GLANCE
Compare the AXIS series
| Series | Format | Laser power | Motion | Gas control |
|---|---|---|---|---|

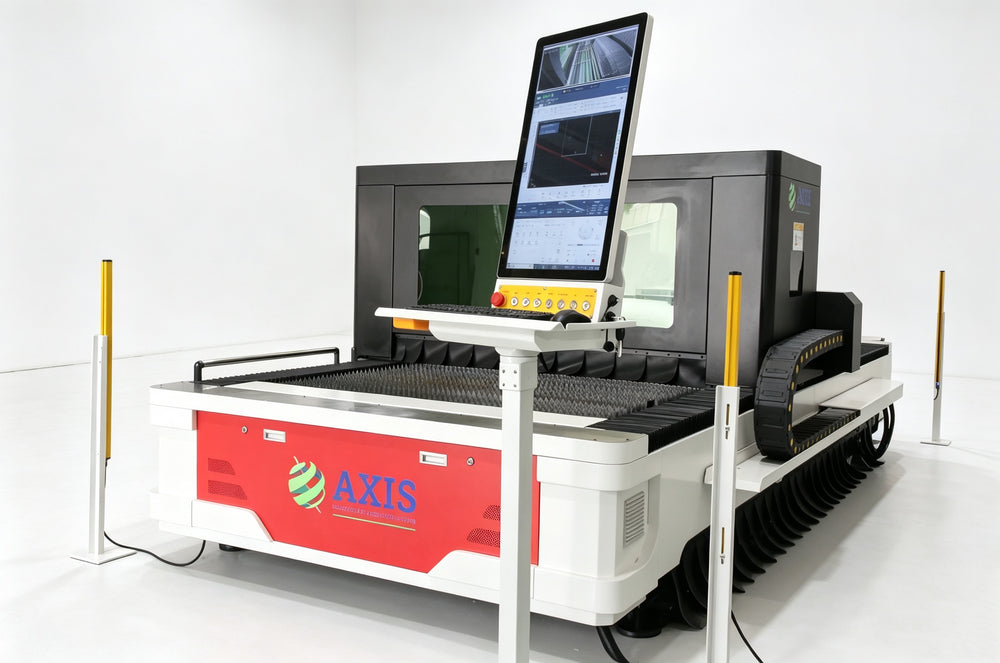

| SAN-EG Advanced | Open bed, enclosed gantry | 3–12 kW | BOCHU servo, ball-screw Z | Proportional O₂ / N₂ / air |
Indicative comparison only. Bed sizes, options and warranty are listed on each machine page; Plasquip confirms the final configuration before quotation.
SENFENG SHEET-CUTTING RANGE
SENFENG fibre laser cutters
Start with the format and production style that best matches your work. Plasquip will then confirm the correct power, bed size, extraction and automation configuration.
SENFENG · OPEN FLAT-BED

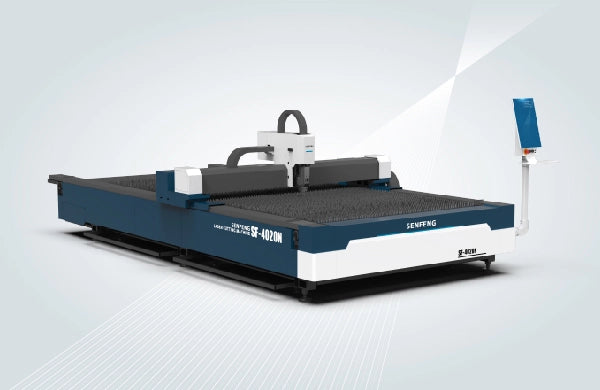

N Series
A practical open-format sheet cutter for general fabrication, available from 1.5 to 6 kW.
Explore N Series →SENFENG · COMPACT CUTTERS
SF1313N & SF1530NP
Space-efficient machines for smaller sheet sizes, precision parts and workshops entering fibre laser cutting.
Explore compact machines →
SENFENG · ENCLOSED PRODUCTION

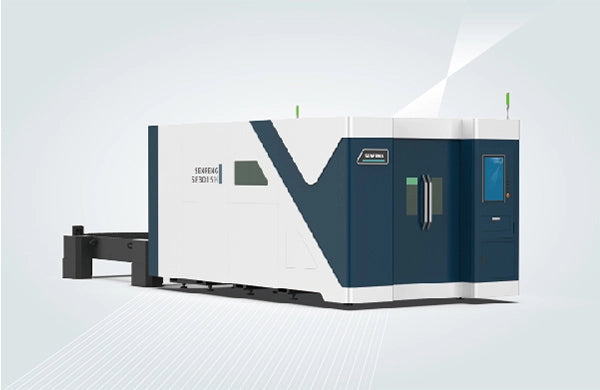

HC & NP Series
Enclosed exchange-bed systems for productive sheet cutting, with power options extending to 12 kW.
Explore HC and NP machines →
SENFENG · HIGH-POWER CUTTING

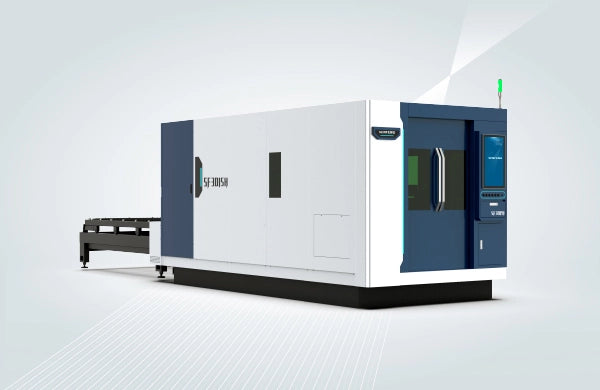

H4 Series
High-performance enclosed cutting for larger sheets and demanding production, from 6 to 30 kW.
Explore H4 Series →
SENFENG · ULTRA HIGH POWER

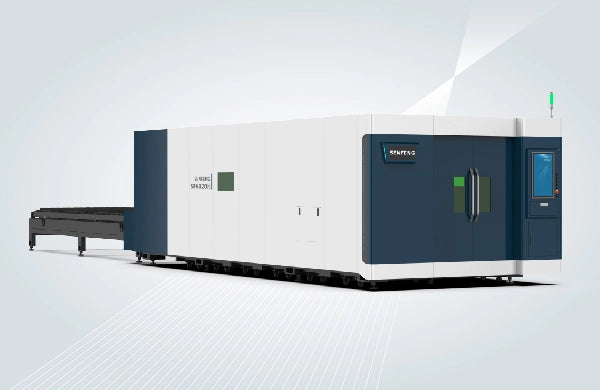

H4 Ultra
Ultra-high-power sheet processing from 30 to 80 kW for exceptional throughput on heavy material.
Explore H4 Ultra →SENFENG · PREMIUM PRODUCTION
H5 Series
Premium enclosed systems combining high power, automation readiness and production-focused performance.
Explore H5 Series →
SENFENG · ULTRA-LARGE FORMAT

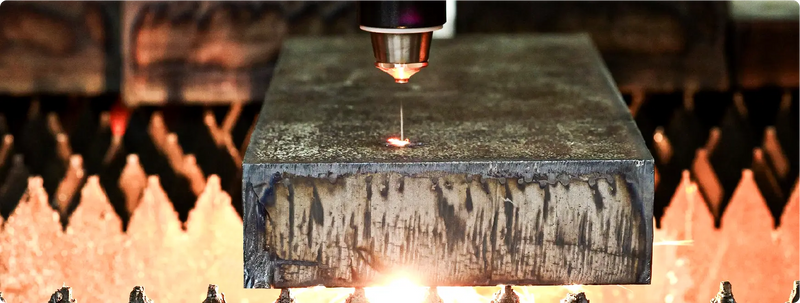

R Series
Ultra-large-format cutting platforms for long and wide plate, available in high-power configurations.
Explore R Series →
SENFENG · BEVEL CUTTING

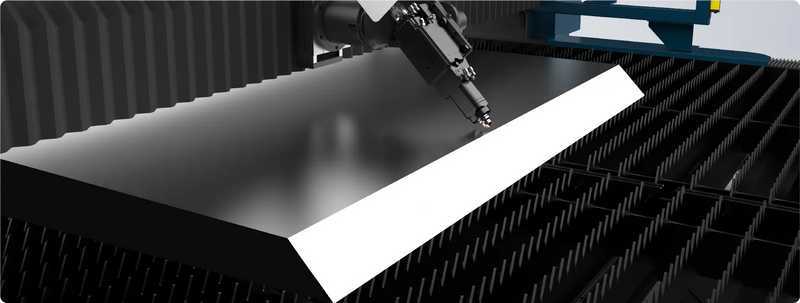

TX Series
Ultra-large laser cutting with bevel capability for weld preparation and complex plate processing.
Explore TX Series →
SENFENG · HYBRID CUTTING

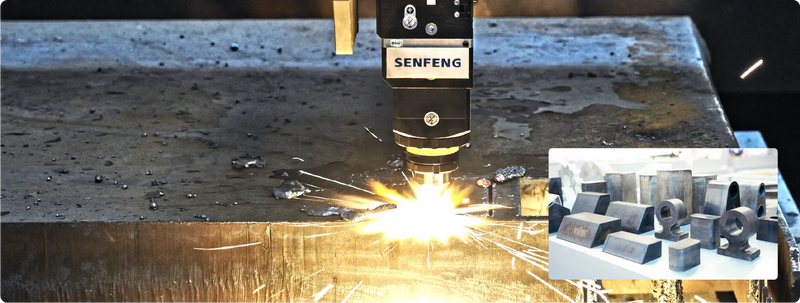

TXP Series
A laser-and-flame hybrid platform for very large plate and broad material-thickness requirements.
Explore TXP Series →SENFENG AT A GLANCE
Compare the SENFENG flat-bed ranges
Use this table to identify the most likely machine family. Final configuration depends on material, maximum thickness, sheet size, required throughput and site services.
| Series | Power range | Maximum cutting area | Best suited to |
|---|---|---|---|
| N Series | 1.5–6 kW | Up to 6050 × 2030 mm | General open-format sheet cutting |
| SF1313N / SF1530NP | 1.5–6 kW | Up to 3030 × 1510 mm | Compact workshops and smaller components |
| HC / NP Series | 1.5–12 kW | Up to 6050 × 2030 mm | Enclosed exchange-bed production |
| H4 Series | 6–30 kW | Up to 12100 × 2530 mm | High-output large-sheet processing |
| H4 Ultra / H5 | 12–80 kW | Up to 12050 × 2530 mm | Ultra-high-power production |
| R / TX / TXP | 6–60 kW+ | Up to 50000 × 3000 mm | Ultra-large plate, bevel and hybrid cutting |
Indicative comparison only. Available specifications vary by model and market; Plasquip will confirm the current Australian configuration before quotation.
SPECIFY THE RIGHT SYSTEM
More than laser power alone
The best machine is determined by the complete application: material mix, thickness range, sheet dimensions, required edge quality, production volume, loading method, extraction and available site services.
Power affects thickness capability and cutting speed, but the best return comes from matching it to your real production profile.
Assist gas (oxygen, nitrogen, compressed air or mixed gas), dust extraction and compressed air supply all shape running cost and cut quality.
Plasquip reviews power, air, extraction, delivery, commissioning and operator training as one complete system.
SELECT WITH CONFIDENCE
From cutting requirement to machine configuration
Send us representative drawings and your material schedule. We will recommend the right AXIS or SENFENG machine before confirming the final configuration and options.
1
Define the workMaterial, thickness, sheet size and production volume.
2
Choose the machine familyMatch format, enclosure and power to the job.
3
Confirm the complete systemReview extraction, services, delivery, commissioning and training.
