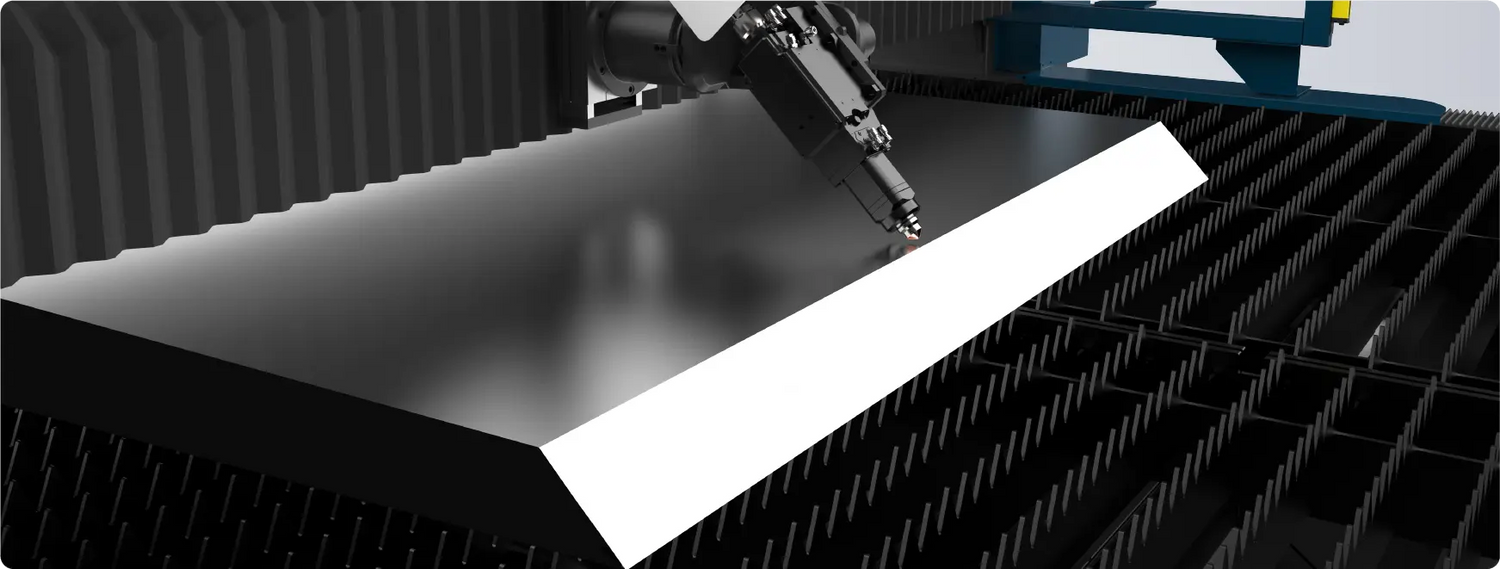

SENFENG TX Series Ultra-Large Beveling Laser Metal Cutter
Ultra-large-format cutting with ±45° beveling built in — for welding-ready edges on massive plate.
Shipyards, bridge construction, and heavy machinery producers needing standard-compliant bevel prep on huge plate.
Available in 7 standard configurations, 12-60kW.
- ±45° bevel laser cutting head with 3D five-axis bus-based control cuts V, X, Y, and K bevel shapes
- Both straight-cut and bevel-cut supported on every bed size (bevel working area runs slightly smaller than straight-cut)
- Ground-rack, modular spliced bed for stability and easy transport of huge workpieces
- Anti-burning graphite bed plates protect against heat and slag
- Optional fully-enclosed beam chamber contains fume and laser radiation
- Same process-technology suite and optional marking/scribing add-ons as the R Series
Size & Power Comparison
| Model | Laser Power (kW) | Straight-Cut Area (mm) | Bevel-Cut Area (mm) | Max. Load (kg) | Overall Dimensions (mm) |
|---|---|---|---|---|---|
| SF6030TX | 12-60 | 6000*3000 | 5400*2000 | 14130 | 8360*4746*1950 |
| SF8040TX | 12-60 | 8000*4000 | 7400*3000 | 25120 | 10680*5746*1950 |
| SF12030TX | 12-60 | 12000*3000 | 11400*2000 | 28260 | 15612*4746*1950 |
| SF14030TX | 12-60 | 14000*3000 | 13400*2000 | 32970 | 17830*4746*1950 |
| SF30040TX | 12-60 | 30000*4000 | 29400*3000 | 94200 | 36835*5746*1950 |
| SF36030TX | 12-60 | 36000*3000 | 35400*2000 | 84780 | 45500*4746*1950 |
| SF50030TX | 12-60 | 50000*3000 | 49400*2000 | 117750 | 63100*4746*1950 |
Frequently Asked Questions
How is the TX Series sized for my job?
The TX Series ships in seven standard bed sizes from 6000×3000mm up to 50000×3000mm, each rated 12-60kW, with both straight-cut and ±45° bevel-cut working areas. Because these are modular, shipyard-scale installations, always confirm your exact plate size, power, and platform load with our team before ordering.
