Automated deburring, chamfering, wire drawing and descaling in a single pass — replacing manual grinding across aerospace, medical device, NEV and shipbuilding production.

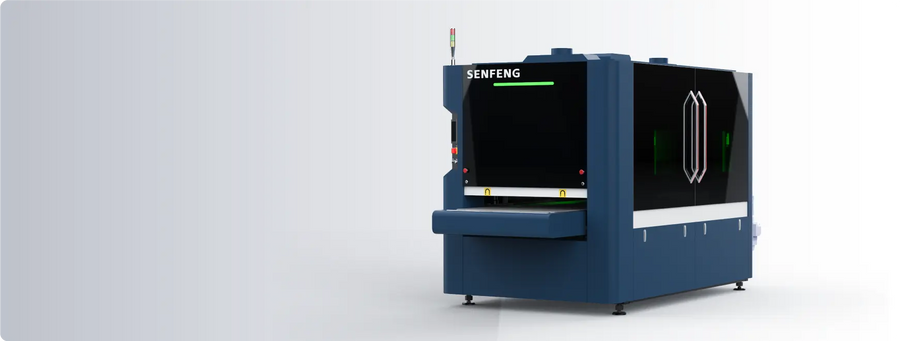

The SENFENG Sheet Metal Deburring Machine removes burrs and flashes automatically from metal workpieces while chamfering, wire-drawing and descaling in the same pass, lifting workpiece precision and surface quality ahead of coating or assembly.

Handles carbon steel, stainless steel, aluminium and copper
Workpiece thickness 0.5–80mm, minimum size 50×50×0.5mm (nonporous plate)
Variable frequency drive runs approximately 30% faster than conventional models
SIEMENS PLC control with 10″ touchscreen
Magnetic (SFD) or vacuum (SFZ) worktable options to suit magnetic vs non-magnetic materials
Long-life mortise-and-tenon machine bed construction

Worktable Options

SFD (Marble Magnetic): magnetic adsorption worktable for carbon steel.

SFZ (Vacuum): vacuum adsorption worktable for non-magnetic materials — stainless steel, aluminium and copper.

Deburring & Finishing

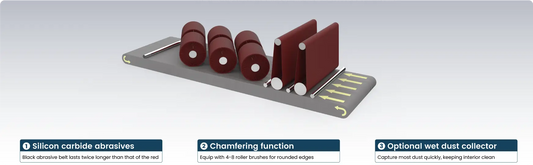

Two deburring belts with silicon carbide (black) abrasive, plus 4–8 universal roller brushes (depending on model) for chamfering. The black abrasive belt lasts roughly twice as long as red belts, cutting consumable costs.

Control & Safety

SIEMENS PLC and a 10″ touchscreen give centralised control over feed speed and belt/roller speed. Automatic fault diagnosis, overload alarm and abnormal shutdown protection minimise downtime risk. An optional 7.5kW wet dust collector is available.

Technical Parameters

Model	Worktable Width	Workpiece Thickness	Feeding Speed	Belt/Roller Speed	Max. Load	Overall Dimensions (L×W×H)
SFD800 / SFZ800	800mm	0.5–80mm	0.5–6 m/min	0–1450 r/min	300kg	3550×1500×2200mm
SFD1000 / SFZ1000	1000mm	0.5–80mm	0.5–6 m/min	0–1450 r/min	500kg	3860×1830×2250mm
SFD1300 / SFZ1300	1300mm	0.5–80mm	0.5–6 m/min	0–1450 r/min	500kg	4480×2180×2250mm
