Automated deburring, chamfering, wire drawing and descaling in a single pass — replacing manual grinding across aerospace, medical device, NEV and shipbuilding production.

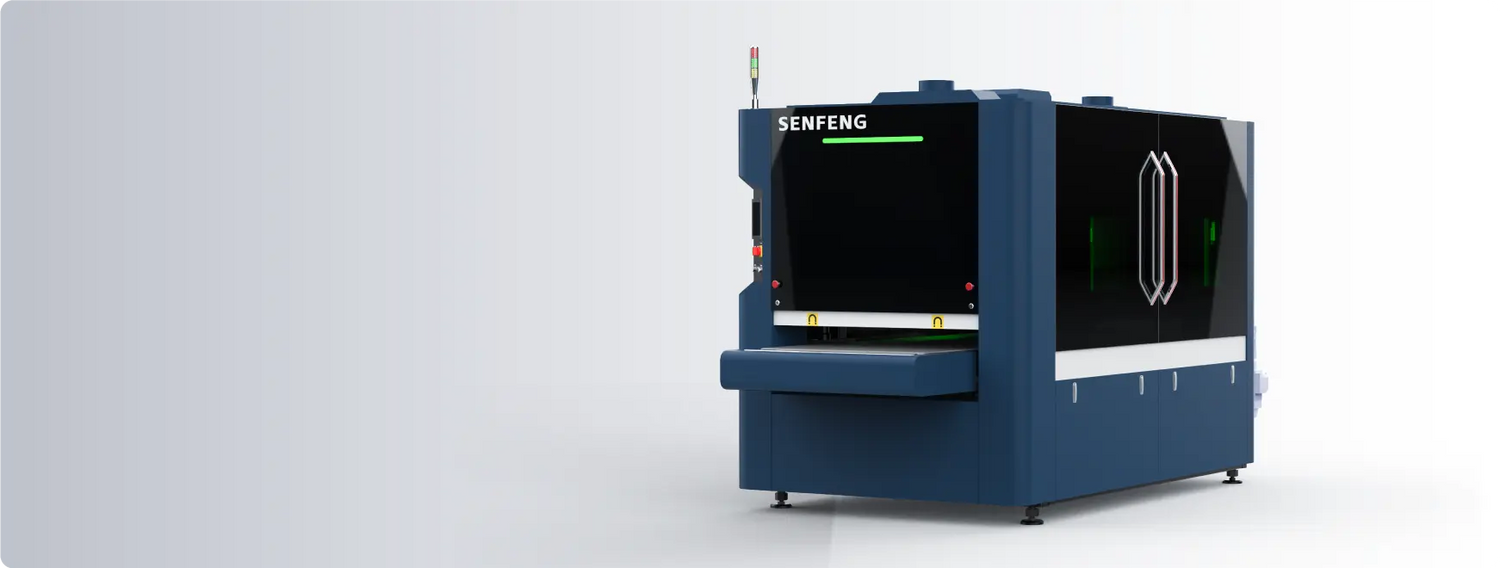

The SENFENG Sheet Metal Deburring Machine removes burrs and flashes automatically from metal workpieces while chamfering, wire-drawing and descaling in the same pass, lifting workpiece precision and surface quality ahead of coating or assembly.
SFD (Marble Magnetic): magnetic adsorption worktable for carbon steel.
SFZ (Vacuum): vacuum adsorption worktable for non-magnetic materials — stainless steel, aluminium and copper.

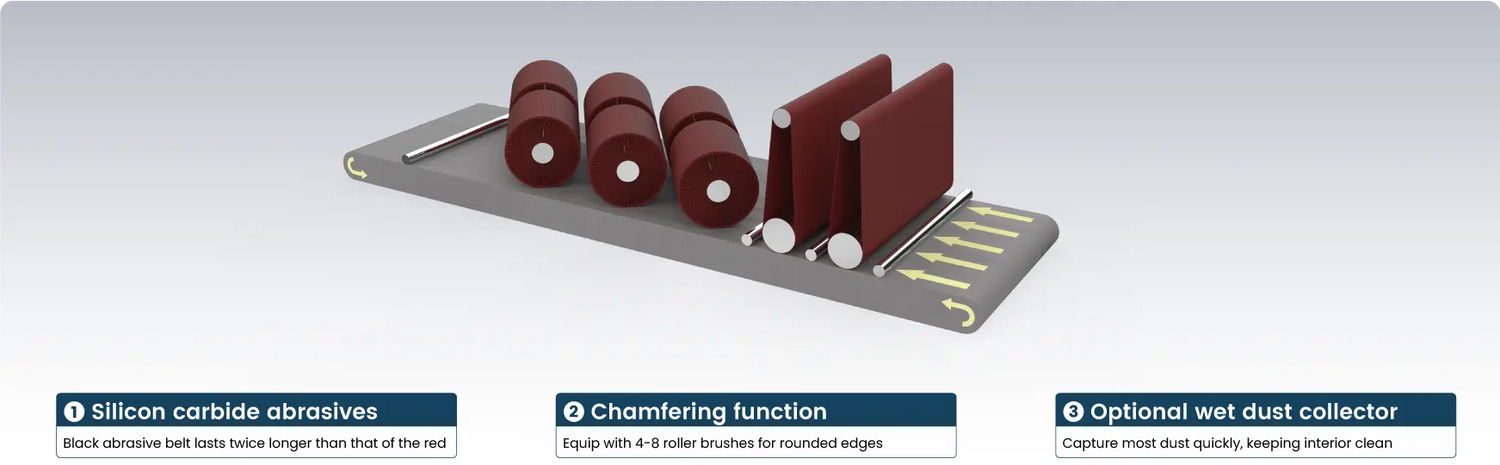

Two deburring belts with silicon carbide (black) abrasive, plus 4–8 universal roller brushes (depending on model) for chamfering. The black abrasive belt lasts roughly twice as long as red belts, cutting consumable costs.

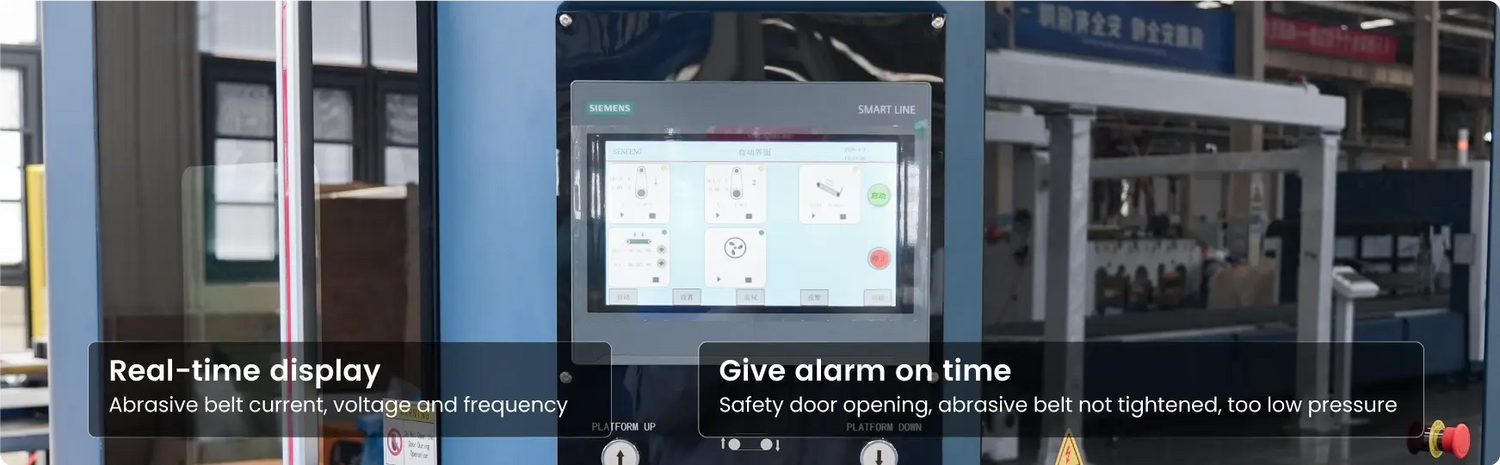

SIEMENS PLC and a 10″ touchscreen give centralised control over feed speed and belt/roller speed. Automatic fault diagnosis, overload alarm and abnormal shutdown protection minimise downtime risk. An optional 7.5kW wet dust collector is available.
| Model | Worktable Width | Workpiece Thickness | Feeding Speed | Belt/Roller Speed | Max. Load | Overall Dimensions (L×W×H) |
|---|---|---|---|---|---|---|
| SFD800 / SFZ800 | 800mm | 0.5–80mm | 0.5–6 m/min | 0–1450 r/min | 300kg | 3550×1500×2200mm |
| SFD1000 / SFZ1000 | 1000mm | 0.5–80mm | 0.5–6 m/min | 0–1450 r/min | 500kg | 3860×1830×2250mm |
| SFD1300 / SFZ1300 | 1300mm | 0.5–80mm | 0.5–6 m/min | 0–1450 r/min | 500kg | 4480×2180×2250mm |
Contact us for a detailed quote and configuration for your application.
