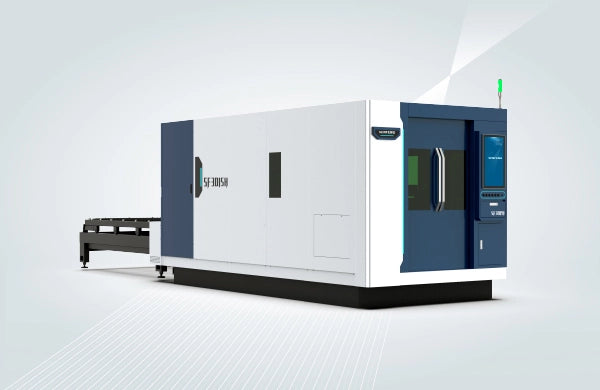

SENFENG H4 Series Fiber Laser Cutter — 6-30kW

SKU: SENFENG-H4-SF12025H4-12KW
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD

SENFENG's flagship, global sales champion for medium-to-thick plate cutting.

Part of SENFENG's H4 series — 6kW-30kW High Power Plate Laser Cutter — H4 Series, built for Medium-to-thick carbon steel, stainless steel, aluminium alloy, and brass plate (≥20mm) demanding high cutting efficiency. Available in 6 bed sizes and 3 power configurations (12.0kW, 20.0kW, 30.0kW) — choose your combination below.

  • Special heavy-duty thermally isolated hollow bed handles loads up to 18,860kg while resisting deformation
  • Anti-burning graphite plates and a firebrick trolley extend durability under high-power cutting
  • Intelligent smoke-free dust extraction with dual-channel, zoned exhaust
  • Reinforced rack-and-pinion Z-axis for stable high-speed motion
  • Vision-based nesting, automatic nozzle changing, and a full process-technology suite (Perfect Finish Cut, Flash/Smooth/Progressive/Deslag Piercing, Smooth MicroJoint, Jump Function, Auto Edge Detection, Countersink Cutting)
  • Optional Intelligent Air Cutting configuration and optional dual gantry loading/unloading (up to 85% efficiency gain on 0.8-14mm steel plate)

Compare H4 Series bed sizes

Model Working Area (L×W) Max. Load of Platform Overall Dimensions (L×W×H)
SF3015H4 3080×1530 mm 3000 kg 8440×2270×2340 mm
SF4020H4 4100×2030 mm 5000 kg 10795×3191×2410 mm
SF6020H4 6100×2030 mm 7550 kg 14980×3191×2410 mm
SF6025H4 6100×2530 mm 9000 kg 14734×3781×2410 mm
SF8025H4 8100×2530 mm 12000 kg 18926×3781×2410 mm
SF12025H4 12100×2530 mm 18860 kg 27770×3781×2410 mm

All bed sizes share the same core specification regardless of size or power: X/Y-axis positioning accuracy ±0.05mm, X/Y-axis repositioning accuracy ±0.02mm, max. no-load speed 200 m/min, max. acceleration 2G, three-phase 380V 50/60Hz power supply (custom-made).

Frequently Asked Questions

What power options are available for the H4 Series?
The H4 Series is offered in 12.0kW, 20.0kW, and 30.0kW configurations across all 6 bed sizes, covering the series' full 6-30kW power range. Always confirm your exact material, thickness, and platform load requirements with our team before ordering.

What can the H4 Series cut?
Medium-to-thick carbon steel, stainless steel, aluminium alloy, and brass plate (≥20mm), with bed sizes from 3080×1530mm up to 12100×2530mm.

Have more questions about SENFENG metal sheet cutters? See our SENFENG Metal Sheet Cutters FAQ.

SENFENG's flagship, global sales champion for medium-to-thick plate cutting.

Part of SENFENG's H4 series — 6kW-30kW High Power Plate Laser Cutter — H4 Series, built for Medium-to-thick carbon steel, stainless steel, aluminium alloy, and brass plate (≥20mm) demanding high cutting efficiency. Available in 6 bed sizes and 3 power configurations (12.0kW, 20.0kW, 30.0kW) — choose your combination below.

  • Special heavy-duty thermally isolated hollow bed handles loads up to 18,860kg while resisting deformation
  • Anti-burning graphite plates and a firebrick trolley extend durability under high-power cutting
  • Intelligent smoke-free dust extraction with dual-channel, zoned exhaust
  • Reinforced rack-and-pinion Z-axis for stable high-speed motion
  • Vision-based nesting, automatic nozzle changing, and a full process-technology suite (Perfect Finish Cut, Flash/Smooth/Progressive/Deslag Piercing, Smooth MicroJoint, Jump Function, Auto Edge Detection, Countersink Cutting)
  • Optional Intelligent Air Cutting configuration and optional dual gantry loading/unloading (up to 85% efficiency gain on 0.8-14mm steel plate)

Compare H4 Series bed sizes

Model Working Area (L×W) Max. Load of Platform Overall Dimensions (L×W×H)
SF3015H4 3080×1530 mm 3000 kg 8440×2270×2340 mm
SF4020H4 4100×2030 mm 5000 kg 10795×3191×2410 mm
SF6020H4 6100×2030 mm 7550 kg 14980×3191×2410 mm
SF6025H4 6100×2530 mm 9000 kg 14734×3781×2410 mm
SF8025H4 8100×2530 mm 12000 kg 18926×3781×2410 mm
SF12025H4 12100×2530 mm 18860 kg 27770×3781×2410 mm

All bed sizes share the same core specification regardless of size or power: X/Y-axis positioning accuracy ±0.05mm, X/Y-axis repositioning accuracy ±0.02mm, max. no-load speed 200 m/min, max. acceleration 2G, three-phase 380V 50/60Hz power supply (custom-made).

Frequently Asked Questions

What power options are available for the H4 Series?
The H4 Series is offered in 12.0kW, 20.0kW, and 30.0kW configurations across all 6 bed sizes, covering the series' full 6-30kW power range. Always confirm your exact material, thickness, and platform load requirements with our team before ordering.

What can the H4 Series cut?
Medium-to-thick carbon steel, stainless steel, aluminium alloy, and brass plate (≥20mm), with bed sizes from 3080×1530mm up to 12100×2530mm.

Have more questions about SENFENG metal sheet cutters? See our SENFENG Metal Sheet Cutters FAQ.
