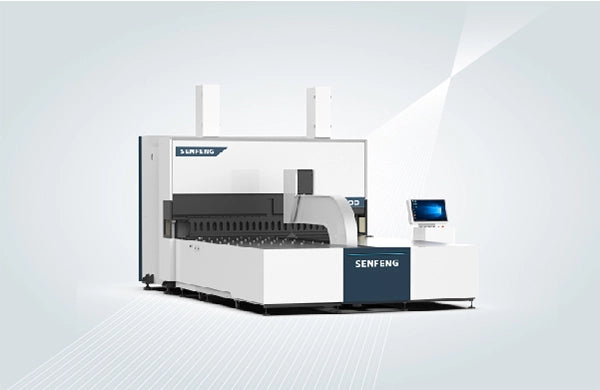

Collection: Senfeng Panel Benders
SENFENG panel benders automate sheet metal bending with programmable, multi-axis machines that eliminate manual press-brake handling. Four series cover everything from scratch-free suction feeding for decorative work to heavy-duty press-down arm machines with automatic tool changing for high-mix production.
Compare SENFENG Panel Bender Series
| Series |
Best For |
Feeding Method |
Max. Length |
Axes |

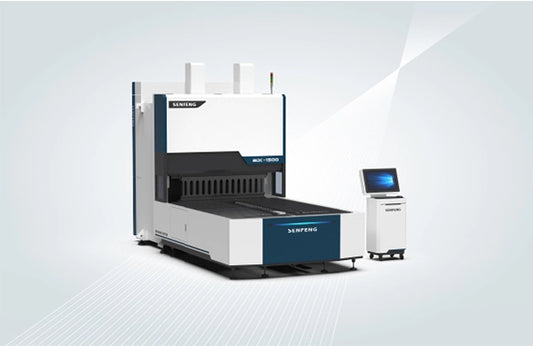

| Suction |
High-precision decorative work, small enclosures, scratch-free finishes |
Vacuum suction cup |
1200–1500 mm |
10-axis |

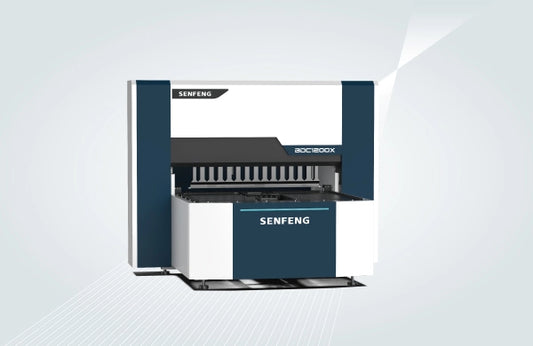

| BDC-X |
Filing cabinets, parcel lockers, kitchenware — high-volume thin sheet bending |
Manual / optional gantry loading |
1200–2000 mm |
9 axes |
| Press-Down Arm |
Electrical enclosures, HVAC panels, server racks — large-format fabrication |
Press-down arm, optional robotic or gantry loading |
1500–4200 mm |
13–16 axis |

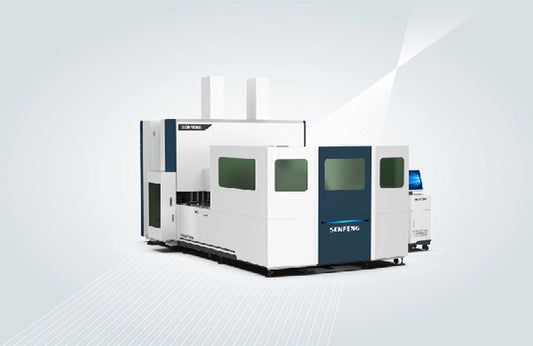

| Automatic Tool Changer |
High-mix production runs needing frequent tooling changes |
Press-down arm with automatic tool changer |
2000 mm |
23-axis |
Frequently Asked Questions
Can a panel bender run unattended?
Yes. Once sheets are stacked and the program is set, the machine can automatically pick up, bend, and stack parts. Configured as a fully automatic system (with optional robotic or gantry loading), a SENFENG panel bender can run 24/7 with little to no human supervision.
Does an automatic panel bender require skilled operators?
No. An automatic panel bender shifts the operator's role from manual bending to programming and supervision. It can be operated after simple training, without years of stamping or bending experience.
How precise is a panel bender?
Very precise. SENFENG panel benders achieve positioning accuracy up to ±0.01mm. Automated operation eliminates human error, ensuring consistent and repeatable bending angles across every part in a batch.
Can a panel bender be integrated with other equipment?
Yes. SENFENG panel benders can be integrated with laser cutting systems or connected to ERP systems, enabling a fully automated workflow from cutting through to bending and stacking.
How does a panel bender improve production efficiency?
It automates loading, positioning, and bending, completing multiple bends in seconds. Bending speed reaches 0.2s per stroke — about 3x faster than a traditional press brake — increasing production speed by 30-50% in high-volume runs.
Is a panel bender suitable for bending complex parts?
Yes. Panel benders excel at complex geometries — large panels, U-shaped components, and boxes — using programmable sequences and universal tooling, making them well suited to enclosure and appliance manufacturing.
