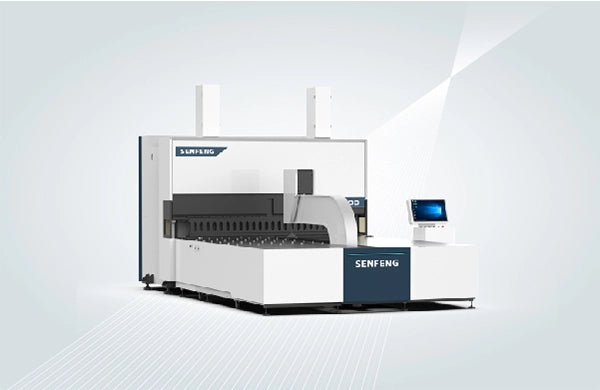

SENFENG Press-Down Arm Panel Bender BDC2500
Flexible bending of large, thin sheets — the workhorse of the SENFENG panel bender range.
Part of SENFENG's Press-Down Arm series — Press-Down Arm Panel Bender Series, built for Electrical enclosures, HVAC panels, server racks, large-format sheet metal fabrication.
The BDC2500 bends sheets up to 2500mm in length.
- Press-down arm feeding handles perforated, embossed, or irregular sheets
- Universal high-strength alloy steel dies support up/down bending, arc, closed, and return bends without frequent die changes
- Mortise-and-tenon frame with 80mm steel plate reinforcement for stability under high-tonnage bending
- Bending speed of 0.2s/stroke — about 3x faster than a traditional CNC press brake
- Optional robotic loading/unloading: adds a six-axis robot (150kg payload, 3200mm working radius) for fully unmanned operation
- Optional gantry loading/unloading: adds a gantry robotic arm (100kg load, 50/80 m/min) for continuous automated feeding
| Max. Bending Length | 2500 mm |
| Max. Bending Height | 200/300 (optional) |
| Max. Bending Size (L*W) | 2500*1250 mm |
| Max. Bending Thickness | 304 stainless steel: 1.5mm; Cold plate: 2.0mm; AL sheet: 2.5mm |
| Min. Bending Thickness | 0.35 mm |
| Number of Axes | 13-axis concurrent linkage |
| Rated Voltage | 380 V |
| Overall Dimensions (L*W*H) | 5700*3200*3050 mm |
| Gross Mass | 20 T |
Frequently Asked Questions
What can the Press-Down Arm BDC2500 bend?
The BDC2500 handles sheets up to 2500mm in length. Max bending thickness: 304 stainless steel: 1.5mm; Cold plate: 2.0mm; AL sheet: 2.5mm. Always confirm your exact sheet dimensions and material with our team before ordering, as tooling and automation options affect real-world capacity.
Have more questions about SENFENG panel benders? See our SENFENG Panel Benders FAQ.
