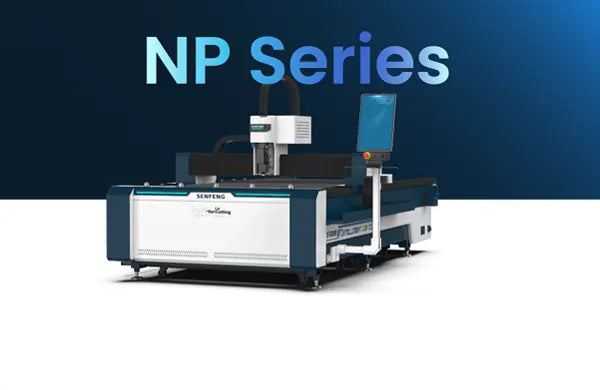

SENFENG's newest NP-line generation, with intelligent air-cutting technology bundled in.
Part of SENFENG's NP Air Cutting series — Intelligent Air Cutting NP Series — Next-Gen Cost-Effective Cutter, built for Entry-level to mid-tier fabricators wanting oxide-free, burr-free cuts with lower running costs. All 5 bed sizes run a fixed 12kW — choose your bed size below.
- Intelligent air cutting retains oxygen/nitrogen/air capability with closed-loop gas-cleanliness detection for an oxide-free, burr-free finish
- A8 intelligent bus-based CNC system unifies control of the air compressor, filtering, dust extraction, and servo motion with one-click startup
- Optional AI Process Cube stores thousands of proven process recipes, reducing reliance on highly-skilled operators
- Vision-based nesting, automatic nozzle changing, one-click drawing import by QR code, and automatic laser beam alignment
- Optional intelligent bus-based variable-frequency dust extraction auto-starts/stops with cutting
- Optional Laser Magic Box for MES integration and offline, USB-free multi-machine task dispatch
Compare NP Air Cutting Series bed sizes
| Model | Working Area (L×W) | Max. Load of Platform | Overall Dimensions (L×W×H) |
|---|---|---|---|
| SF3015NP | 3050×1530 mm | 1100 kg | 4500×2900×2100 mm |
| SF4015NP | 4050×1530 mm | 1400 kg | 5500×2900×2100 mm |
| SF4020NP | 4050×2030 mm | 1900 kg | 5500×3400×1900 mm |
| SF6015NP | 6050×1530 mm | 2100 kg | 8100×2900×1900 mm |
| SF6020NP | 6050×2030 mm | 2800 kg | 8100×3400×1900 mm |
All bed sizes share the same core specification: laser power 12kW, X/Y-axis positioning accuracy ±0.05mm, X/Y-axis repositioning accuracy ±0.02mm, max. no-load speed 120 m/min, max. acceleration 1.2G, three-phase 380V 50/60Hz power supply (custom-made).
Frequently Asked Questions
Why is there no power option on this series?
The NP Air Cutting Series is engineered specifically around a fixed 12kW configuration to pair with its intelligent air-cutting system — there's no lower-power option on this line. If you need a lower power point, see the standard NP Series instead. Always confirm your exact material, thickness, and platform load requirements with our team before ordering.
What can the NP Air Cutting Series cut?
Medium and thin sheet with oxide-free, burr-free air-cut finish, with bed sizes from 3050×1530mm up to 6050×2030mm.
Have more questions about SENFENG metal sheet cutters? See our SENFENG Metal Sheet Cutters FAQ.
