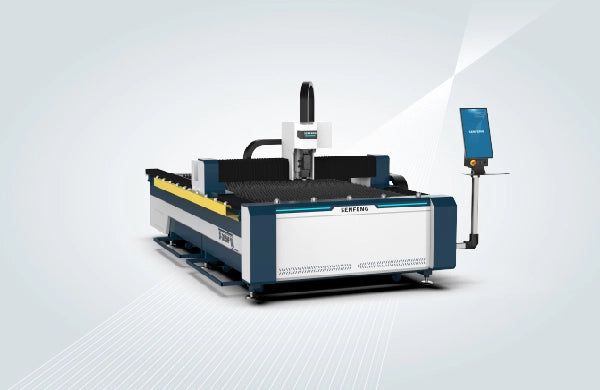

SENFENG NP Series Fiber Laser Cutter 6020NP
Contact and delivery details

Compact open-style cutter for medium and thin sheet, built for efficient container shipping.

Part of SENFENG's NP series — 1.5-12kW Fiber Laser Sheet Cutter — NP Series, built for Medium and thin sheet (up to 30mm) — job shops wanting an open-style machine with a small footprint. Available in 4 bed sizes. The compact SF3015NP offers a choice of 3.0kW, 6.0kW or 12.0kW; the larger SF4020NP, SF6015NP and SF6020NP beds are fixed at 12.0kW. Choose your combination below.

  • Ball-transfer-unit bed reduces friction and scratching, easing manual/semi-automatic loading
  • Hollow bed blocks heat transfer; high-strength aluminium alloy beam improves dynamic performance
  • Optional fully-enclosed beam housing with sliding door that moves in sync with the cutting head
  • Optional vacuum suction cups + truss manipulator for automated loading/unloading
  • Smooth MicroJoint, Smooth Piercing, Auto Edge Detection, Flash Piercing, and Jump Function process technologies
  • A 40HQ container fits 6 units of the smallest model for LCL freight savings

Compare NP Series bed sizes

Model Working Area (L×W) Power Options Max. Load of Platform Overall Dimensions (L×W×H)
SF3015NP 3050×1530 mm 3.0 / 6.0 / 12.0kW 1100 kg 4482×2760×1960 mm
SF4020NP 4050×2030 mm 12.0kW only 1900 kg 5482×3260×1960 mm
SF6015NP 6050×1530 mm 12.0kW only 2800 kg 8100×2760×1800 mm
SF6020NP 6050×2030 mm 12.0kW only 2800 kg 8100×3260×1800 mm

All bed sizes share the same core specification: X/Y-axis positioning accuracy ±0.05mm, X/Y-axis repositioning accuracy ±0.02mm, max. no-load speed 120 m/min, max. acceleration 1.2G, three-phase 380V 50/60Hz power supply (custom-made).

Frequently Asked Questions

Why does SF3015NP have more power options than the other beds?
Only the compact SF3015NP is offered across the series' full 3-12kW range (3.0kW, 6.0kW, 12.0kW). The larger SF4020NP, SF6015NP and SF6020NP beds are built specifically for the top-tier 12.0kW configuration. Always confirm your exact material, thickness, and platform load requirements with our team before ordering.

What can the NP Series cut?
Medium and thin sheet up to 30mm, with bed sizes from 3050×1530mm up to 6050×2030mm.

Have more questions about SENFENG metal sheet cutters? See our SENFENG Metal Sheet Cutters FAQ.
