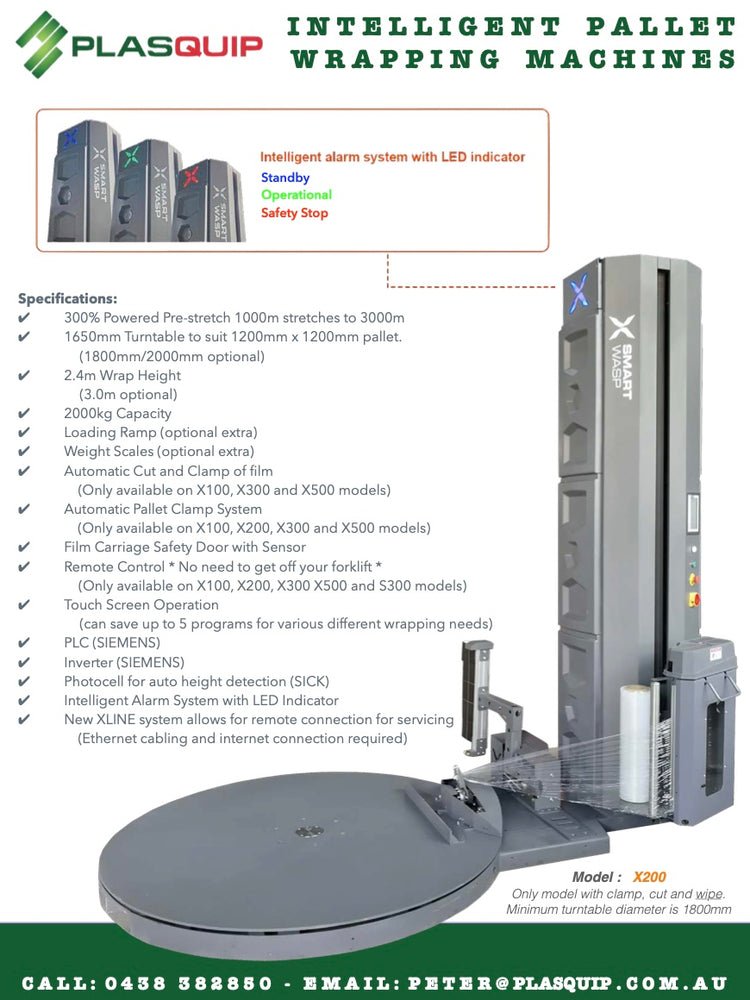

X200 Fully Automatic Pallet Wrapping Machine (Our Best Selling Model)

The X200 fully automatic pallet wrapping machine is a best-selling turntable wrapper designed for warehouses and production facilities that need reliable, hands-off pallet securing at a competitive price point. With a 2000 kg turntable capacity and fully automatic cut, clamp, and film wipe functions, the X200 removes the need for manual involvement once a wrap cycle begins - operators can load a pallet, press start from the forklift seat, and move straight on to the next task.

Key Features of the X200 Fully Automatic Pallet Wrapping Machine

The X200 is controlled by a Siemens PLC-driven touch screen and built with branded electrical components, giving operators precise and repeatable control over every wrap cycle. Features include:

\n

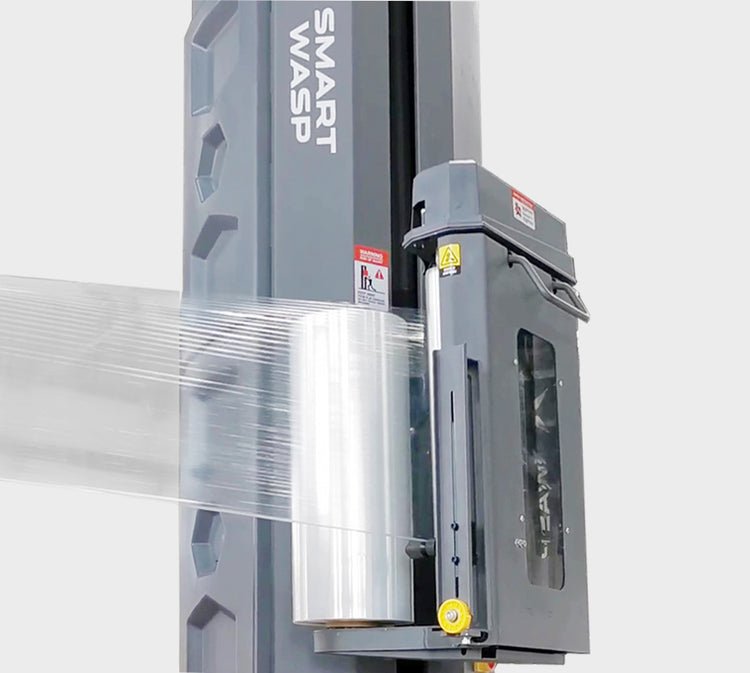

• 300% Powered Pre-Stretch: Every 1 m of film is stretched to 3 m, significantly reducing film consumption per pallet.
\n
• 1800mm Turntable: Suits standard 1200mm × 1200mm pallets. A 2000mm turntable is available as an option.
\n
• 2000 kg Turntable Capacity.
\n
• Wrap Height: Standard 2.4 m; 3.0 m available as an option.
\n
• Automatic Cut, Clamp and Film Wipe: The wiping arm presses the film tail against the wrapped pallet - no manual tucking required. Compressed air is required for this function.
\n
• Remote Control: Forklift operators can start a wrap cycle without leaving the seat, reducing manual handling risk.
\n
• Siemens Touch Screen with 6 Saved Programs: Wrapping speed, film carriage speed, and wrap force can all be set and saved for different product types.
\n
• Multi-Layer / Zone Wrapping: Up to 9 zones per pallet, each with independently set wrap circles and wrap force, for precise load containment.
\n
• Roping System: The film carriage can rope the bottom edge of the film into a thicker, stronger band at any height on the pallet. Available on machines built from 1 October 2022.
\n
• Photoelectric Sensor: Detects pallet height automatically. A black wrap sensor is available as an option.
\n
• Siemens PLC and X-LINE Inverter.
\n
• SICK, AUTONICS, WEIDMULLER and OMRON Components: Sourced from established brands available through local electrical wholesalers.
\n

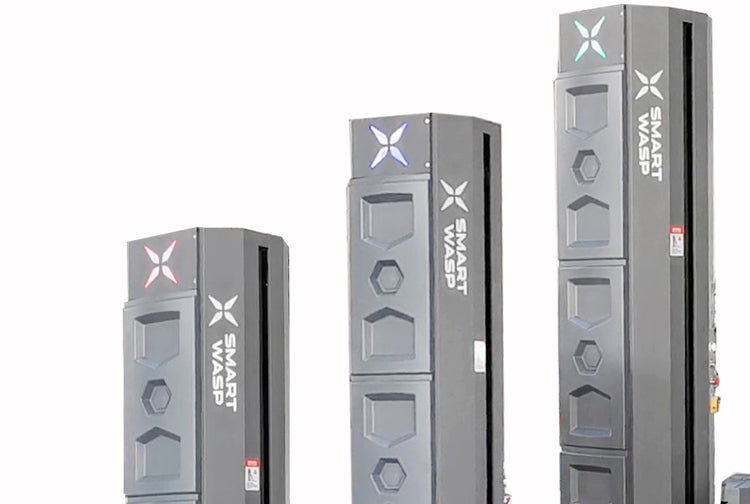

• Intelligent Alarm System: Tri-colour LED indicator (blue = standby, green = running, red = fault) plus on-screen fault description and step-by-step clearing instructions.
\n

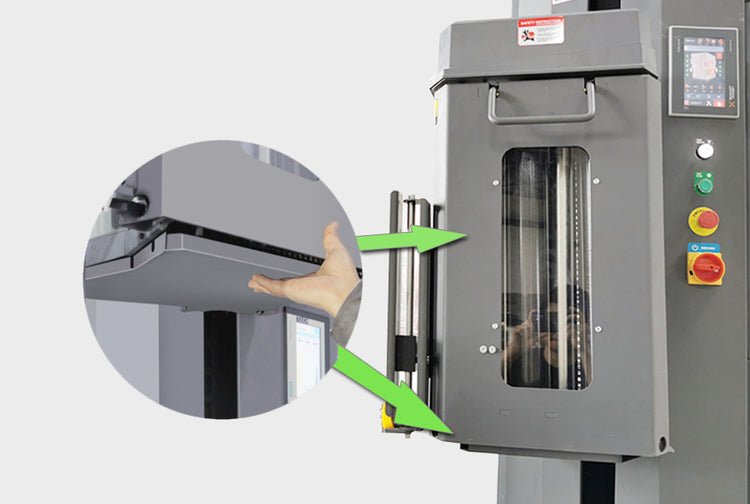

• Film Carriage Safety Door with sensor, and a safety device below the carriage to protect feet and heads.
\n
• Soft Start and Soft Stop on the turntable, plus auto reset of turntable after each cycle.
\n
• Forklift Pockets for repositioning the machine.
\n
• Optional Extras: Loading ramp and weight scales.
\n

Typical Applications

The X200 automatic pallet wrapping machine is used across food and beverage, manufacturing, glassware, tools, electrical and electronic goods, paper products, and pottery - any sector where consistent, hands-off pallet securing is needed. It is particularly well suited to operations with moderate-to-high pallet throughput where stopping to manually cut and attach film tails creates bottlenecks or increases manual handling risk. The six saved programs make it straightforward to switch between different pallet configurations or product types during a shift without re-entering settings each time.

The X200 is designed for facilities where a forklift operator loads pallets and needs the wrapping cycle to run and finish without any manual involvement. If your operation requires a conveyor-fed inline system or a rotary arm machine for very heavy or unstable loads, the X500 Model E Fully Automatic Pallet Wrapping Machine is worth considering as an alternative turntable option. Prices shown include GST where applicable at the current rate.
