The X1 pallet wrapping machine with auto film cutting is a practical, entry-level semi automatic wrapping solution designed for businesses that wrap pallets regularly and need a dependable machine their team can operate from day one. Built around quality electrical components including a Siemens touch screen PLC, the X1 delivers a consistent, repeatable wrap cycle with minimal operator input - making it a reliable step up from manual wrapping labour.

Key Features of the X1 Pallet Wrapping Machine With Auto Film Cutting

\n

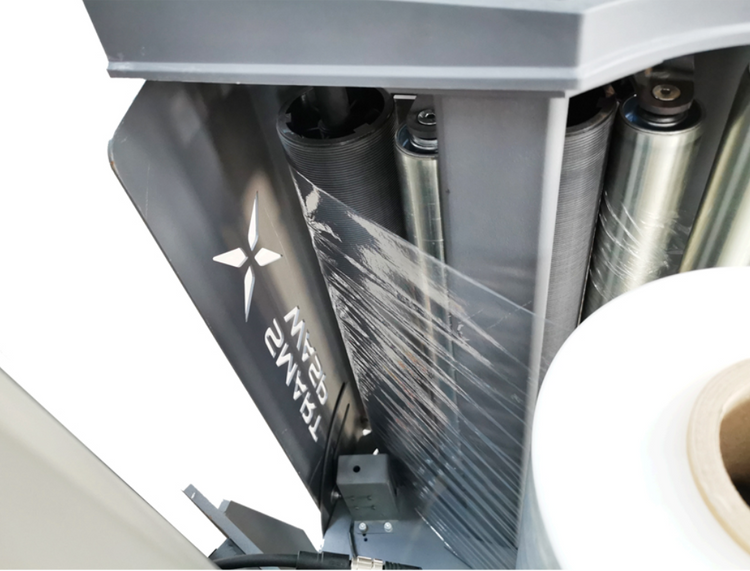

• 300% Powered Pre-Stretch: Stretches 1000m of film to 3000m, substantially reducing film consumption and the cost per pallet over time.
\n
• Automatic Film Cutting: The power head cuts the film automatically at the end of each wrapping cycle - no manual cutting required by the operator.
\n

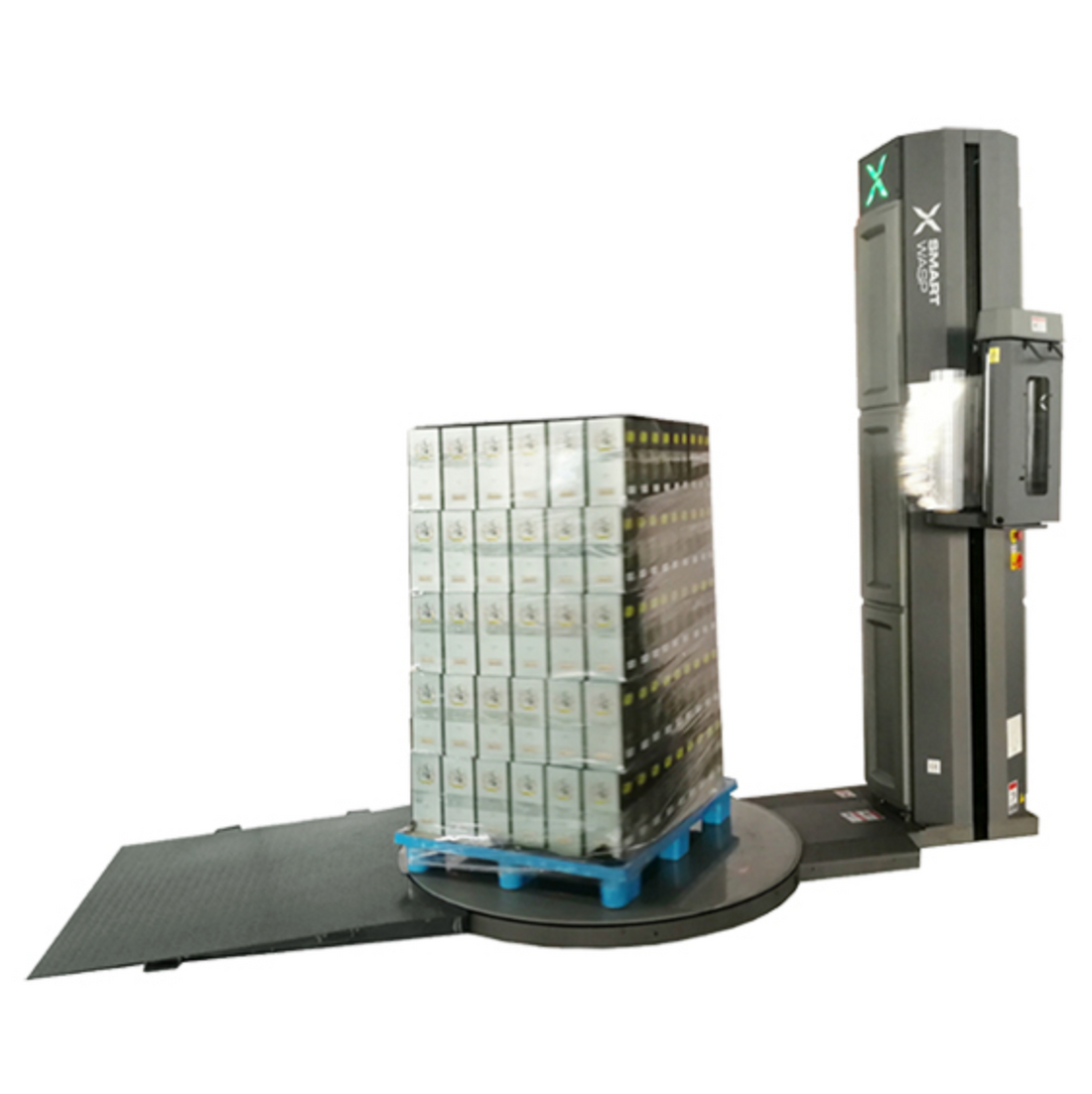

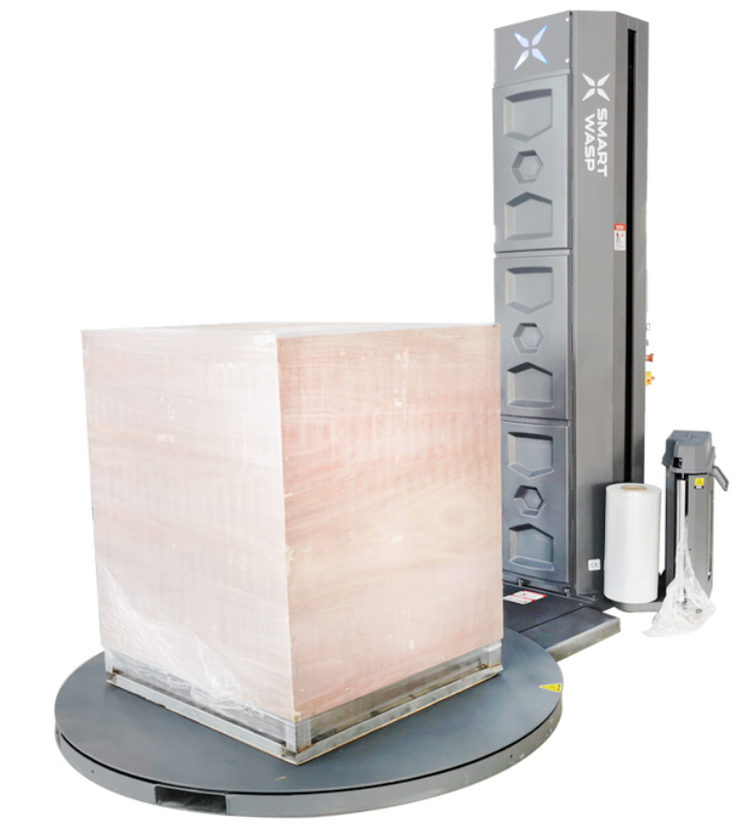

• 1650mm Turntable: Suits standard 1200mm x 1200mm pallets. Optional 1800mm and 2000mm turntable sizes are available to order.
\n
• 2000kg Turntable Capacity: Handles heavy industrial pallet loads across a wide range of industries.
\n
• Selectable Wrap Height: Standard 2.4m wrap height suits most loads; a 3.0m option is available for taller pallets.
\n

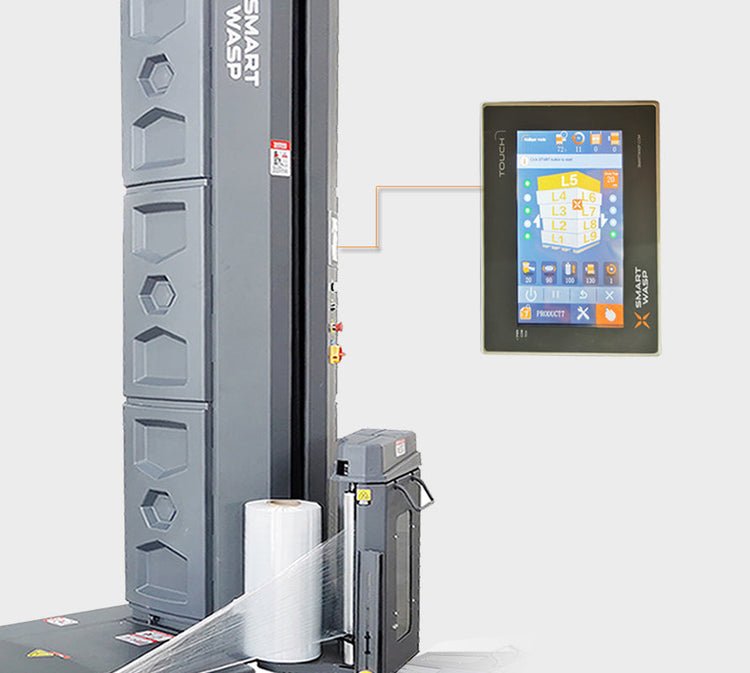

• Siemens Touch Screen PLC: Store up to 6 wrapping programs. Turntable speed, film carriage speed, and wrapping force are all configurable directly on screen, with on-screen fault diagnostics to guide operators through clearing errors.
\n
• Multi-Layer / Zone Wrapping: Set different wrapping circles and wrapping force across up to 9 zones on a single pallet - useful for loads requiring more reinforcement at the base or top.
\n
• Remote Control Operation: Operators can start a wrapping cycle without leaving the forklift.
\n
• Photoelectric Sensor for Pallet Height Detection: Automatically detects the top of the load. An optional black wrap sensor is also available.
\n
• Auto Turntable Reset and Soft Start / Soft Stop: Reduces mechanical wear and keeps loads stable at the start and end of each cycle.
\n

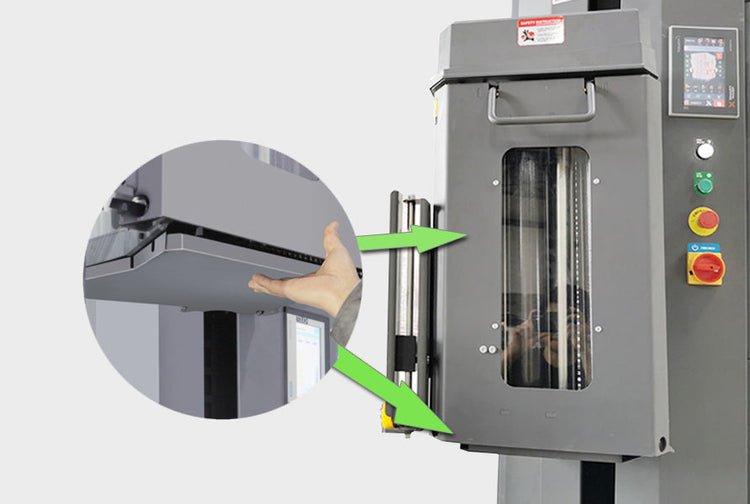

• Film Carriage Safety Door with Sensor: Prevents operation when the carriage door is open.
\n
• Safety Device Under Film Carriage: Protects operators from foot or head contact with the carriage during operation.
\n
• Alarm and Indicator Light System: Blue (standby), Green (running), Red (fault/emergency) - provides clear at-a-glance machine status.
\n

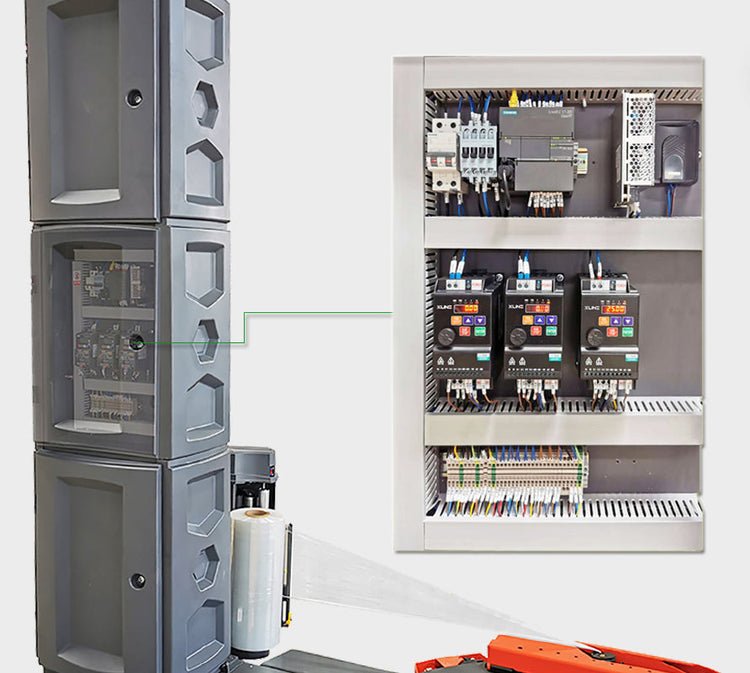

• Quality Electrical Components: Siemens PLC, X-LINE Inverter, SICK proximity switch, AUTONICS photoelectric switch, WEIDMULLER terminal block, and OMRON 24V DC power supply.
\n
• Forklift Pockets: The machine can be relocated easily using a forklift.
\n
• Optional Extras: Loading ramp and integrated weight scales - both selectable at the time of order.
\n

Typical Applications

The X1 semi automatic pallet wrapping machine is used across a broad range of industries where palletised goods need to be secured before transport or storage. Common applications include food and beverage, general manufacturing, glassware, tools and hardware, electrical and electronic goods, paper products, and pottery. The LLDPE stretch film used with the machine provides protection against dust, moisture, and movement during transit. The X1 is particularly well suited to warehouses and distribution facilities that load and dispatch pallets throughout the day and need a consistent, repeatable wrap without relying on manual wrapping labour.

The X1 is the entry point in the Smart Wasp semi-automatic range, offering a dependable combination of automation and operator control at a budget-conscious price point. If your operation requires a fully automatic solution - where the machine handles film attachment, wrapping, and cutting between pallets without any operator input - the X500 Model E fully automatic pallet wrapping machine may be worth considering. All prices include GST where applicable at the current rate.
