BOOSTER EX3 PLUS EXTRUSION WELDER
The WELDY booster EX3 Plus is a digital, high-output extrusion welder designed for consistent, professional-grade welding of PE and PP materials. Rated at 230V / 3000W and supplied as a complete kit, it builds on the proven Booster range (alongside the Booster EX2 and Booster EX3) with adjustable extrusion speed, a digital temperature display for real-time process monitoring, integrated LED work light, automatic cool-down and built-in overcurrent protection for stable, reliable operation. Supplied with an Australian plug fitted by Plasquip.
WHAT'S DIFFERENT FROM THE STANDARD BOOSTER EX3
- Digital display & control: real-time temperature and heating power readout, versus the standard EX3's open-loop analog control with no readout
- Adjustable extrusion speed on the fly, to adapt to different plate thicknesses or corner welding
- Higher maximum output: up to 3.6 Kg/h vs 3.4 Kg/h on the standard EX3
- Integrated LED work light to illuminate the welding zone (not fitted on the standard EX3)
- Added safety functions: automatic cooling/cool-down for standardised shutdown, overcurrent protection with auto-reset after 5 seconds, and anti-burn protection
MAIN APPLICATIONS
- Plastic tank fabrication
- Aquaculture construction and repair
- Boat construction and repair
- Reservoirs and canal waterproofing
- Landfill and mining membrane welding
KEY FEATURES
- Output up to 3.6 Kg/h (4mm rod) / 2.5 Kg/h (3mm rod), measured with PE
- Adjustable extrusion speed for precise welding across a wide range of PP and PE materials

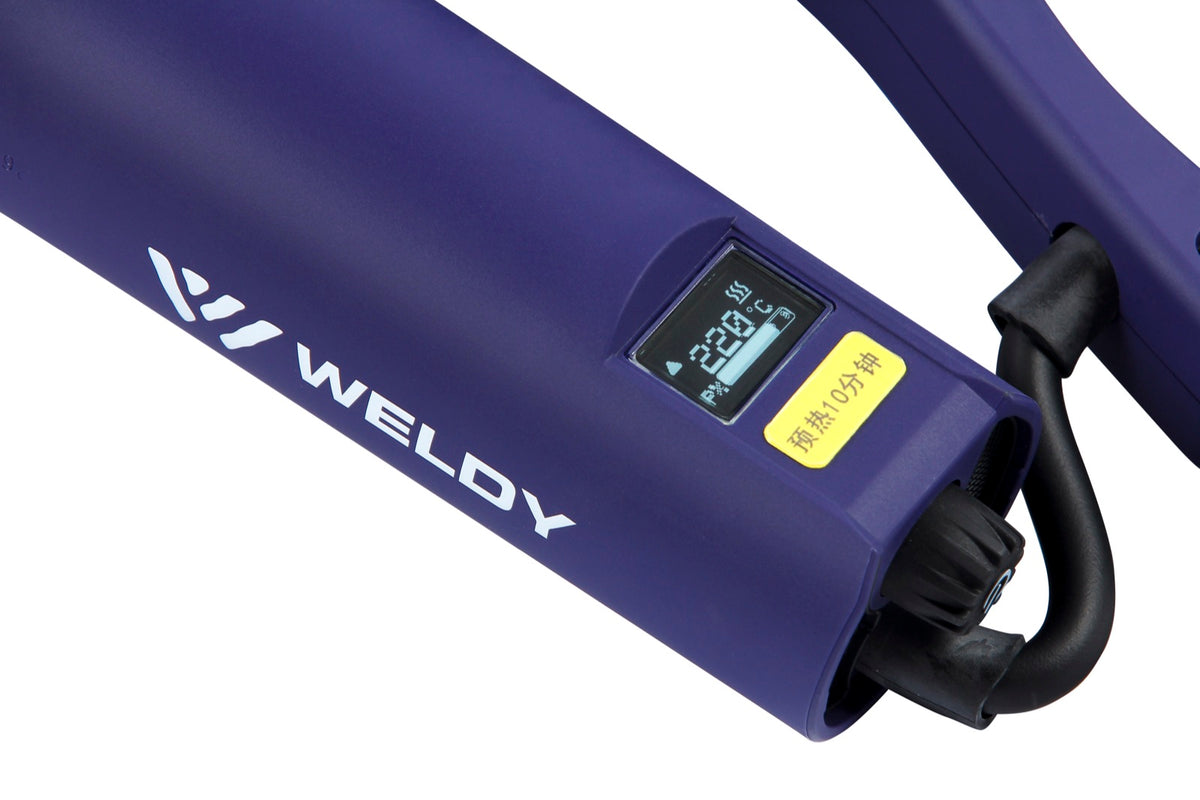

- Digital temperature display for real-time process control
- Integrated LED working light
- Automatic cool-down function
- Anti-burn protection and built-in overcurrent protection with auto-reset
- Welding shoe 360° adjustable
- Accepts 3-4mm welding rod
- Voltage 230V, 50/60Hz, 3000W
- Noise emission level 74 dB (A)
- Dimensions 645 x 247 x 265mm

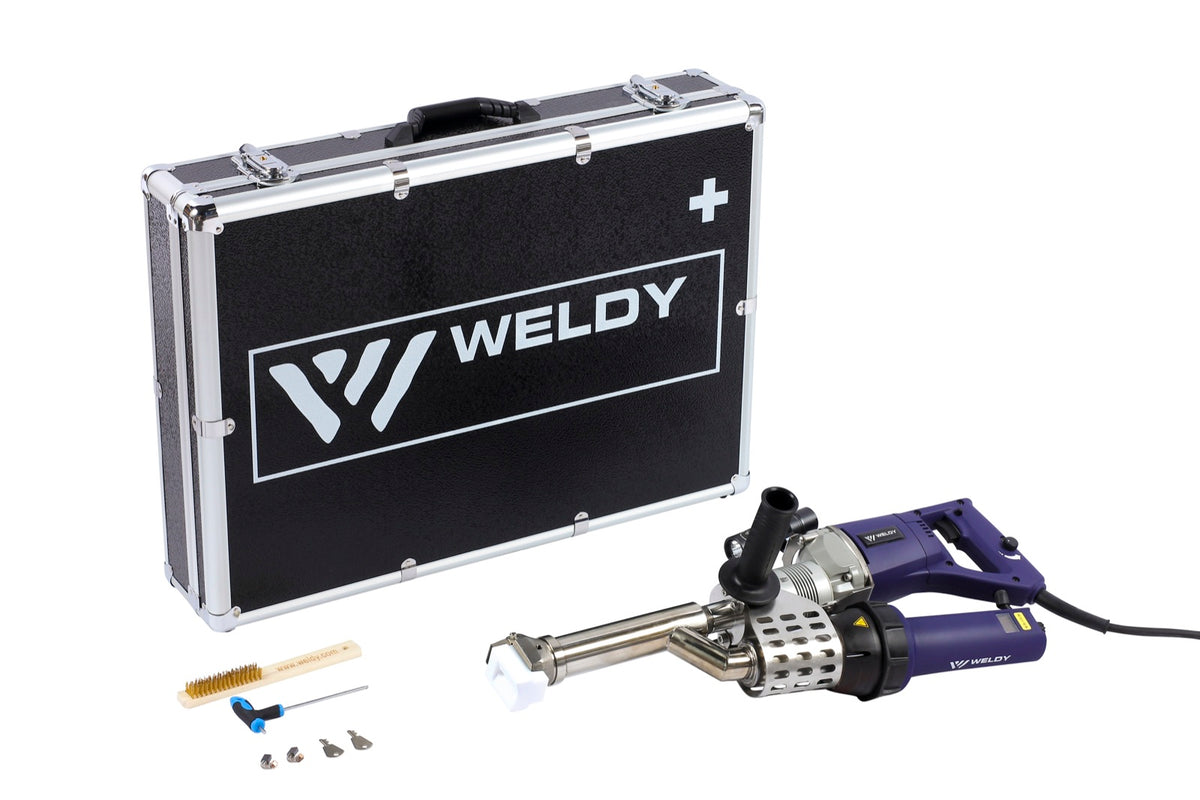

SCOPE OF DELIVERY
- Booster EX3 Plus extrusion welding gun
- Welding shoe
- Operating instructions
MACHINE ACCESSORIES
Browse compatible nozzles, welding shoes and consumables for this machine in our Plastic Welding Accessories collection.
GENERAL ACCESSORIES
See spare parts and general workshop consumables in our Plastic Welding Spare Parts collection.
