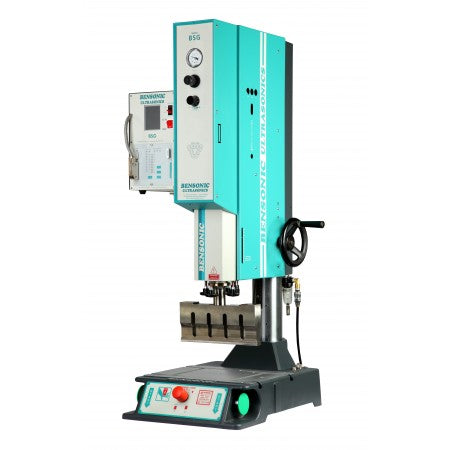

PRICE ON APPLICATION AS ULTRASONIC WELDERS ARE SOLD WITH A WELDING HORN DESIGNED TO SUIT YOUR WELDING APPLICATION
＊SGM ultrasonic generator Import from Switzerland
＊3.5 inch colorful touch screen Chinese / English operation surface
＊ Automatically search ultrasonic frequency and 50%~100% amplitude adjustment
＊ Time welding mode
＊ Constant (Relative and Absolute position) welding mode
＊ Constant energy welding mode
＊ Constant power welding mode
＊ Nodal support booster made of hard Ti-Aluminum alloy
＊ Constant energy welding mode
DESCRIPTION
１．Direct Parameters Input
Convenience Chinese / English HMI, easily to input multiple welding modes. Like welding time absolute distance，relative distance, energy control, power control, constant time ,touch trigger。Could save 50 sets of welding program, also could choose and add many function ,because the function is strong,use easily, extend without limited, so won the best design award in 2007.
２．Ultrasonic Amplitude Adjustment
Amplitude able to be set 50%~100% output according to the welding request
３．Magnetized Encoder welding depth measurement
Adopt precise linear encoder (precision 0.0050mm) to make welding distance control, in order to reach precision ±0.01mm on finished product.
４．Electronic Force Trigger
Make ultrasonic oscillation of each time on the same trigger pressure, to ensure every oscillation, appear the accurate welding state, reach to the best quality.
５．Shake Function
Especially equipped with (SHAKE) function, to prevent working piece stick to the horn even after welding. This function could be designed turn on or turn off on client’s demand.
６．High Efficiency Converter and hard Booster
High efficiency converter and exclusive Titanium booster, with the best resonance system and over 95% transform for mechanical and electrical of the converter and titanium booster, which will offer the most stabilization and high precision, the best support method.
７．Machine Construction 20 KHz machine 100mm Strengthened rectangular pillar, collocate 100mm height base plate , machine can reach the quality request 100% while welding the product.
8 .Machine Modularize
Machine body, ultrasonic generator, and ultrasonic controller are all modularized to sure high quality of machine.
9． Welding Data Management / Storage (option)
Able to connect with computer for storage, management and print out of all information.
10．Welding quality control reveal
There is out of time welding safety reveal and every real out put data reveal after welding.In order to protect the damage cause of the wrong operate or process product bad.
