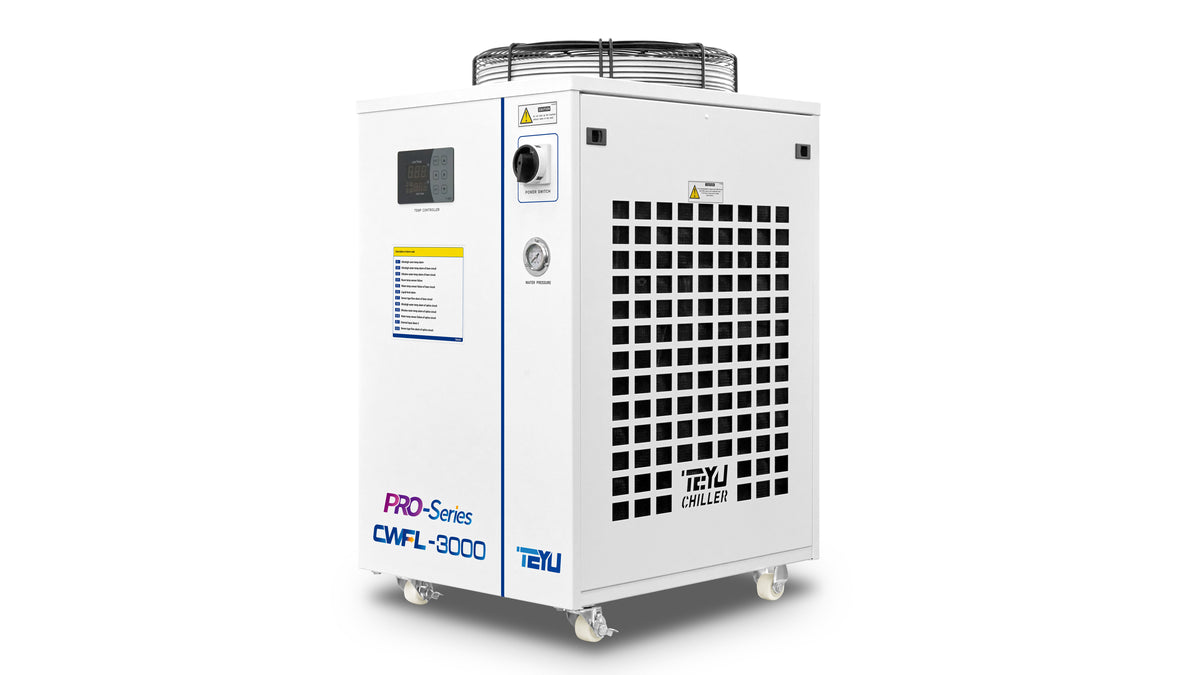

TEYU S&A CWFL-3000 fibre laser water chiller

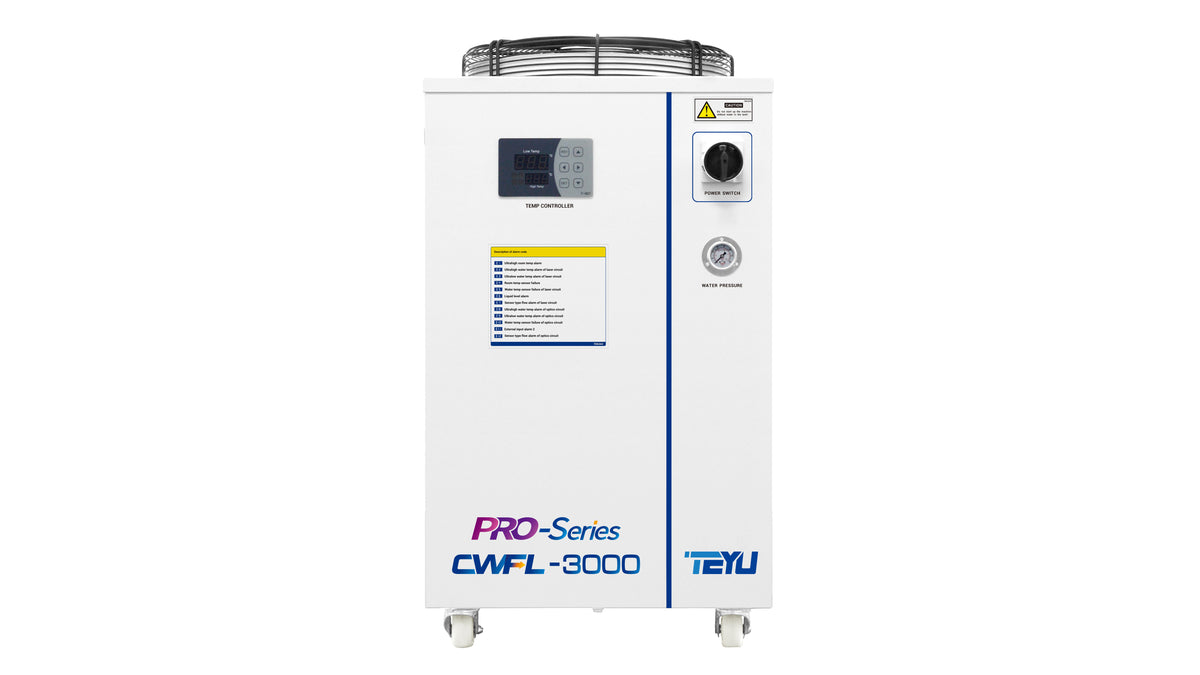

CWFL-3000 industrial fibre laser chiller side view

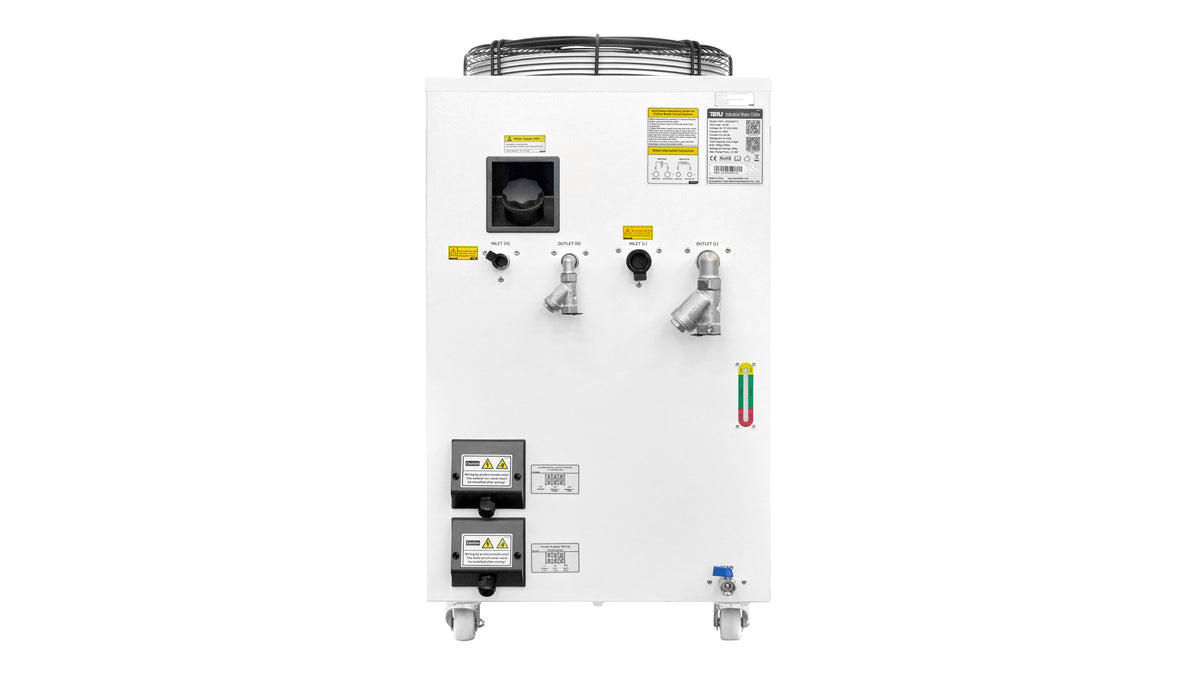

TEYU CWFL-3000 dual-circuit water chiller

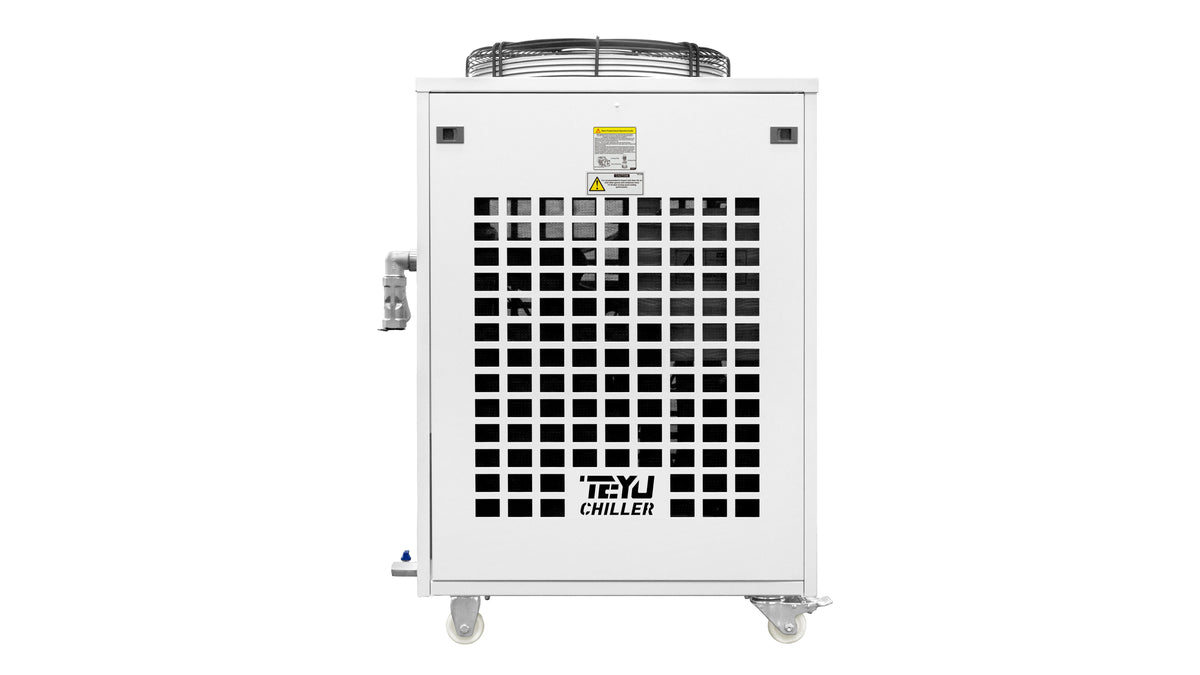

CWFL-3000 fibre laser cooling system detail
The TEYU S&A CWFL-3000 is a dual-circuit industrial water chiller developed for fibre laser systems up to 3 kW. Separate temperature-control circuits cool the laser source and optical components simultaneously, helping maintain stable operation during cutting, welding and other fibre-laser processes.
Key features
- Dual independent cooling circuits for the laser source and optics
- ±0.5°C temperature stability
- 5°C to 35°C temperature-control range
- Intelligent digital controller with integrated alarms
- RS-485 Modbus communication for compatible laser systems
- Active refrigeration using R-410A or R-32 refrigerant
Technical specifications
| Recommended laser power | Up to 3 kW |
|---|---|
| Australian supply configuration | AC 3-phase 380 V, 50 Hz (CWFL-3000ENPTY) |
| Nominal cooling capacity | 8.6 kW / 29,344 BTU/h |
| Temperature stability | ±0.5°C |
| Tank capacity | 22 L |
| Rated flow | 2 L/min + greater than 30 L/min |
| Pump power | 1.1 kW |
| Maximum pump pressure | 6.15 bar |
| Dimensions | 750 × 560 × 1,020 mm |
| Net weight | 105 kg |
| Manufacturer standards | CE, REACH and RoHS |
Product video
Specifications should be confirmed for the final supplied machine.
