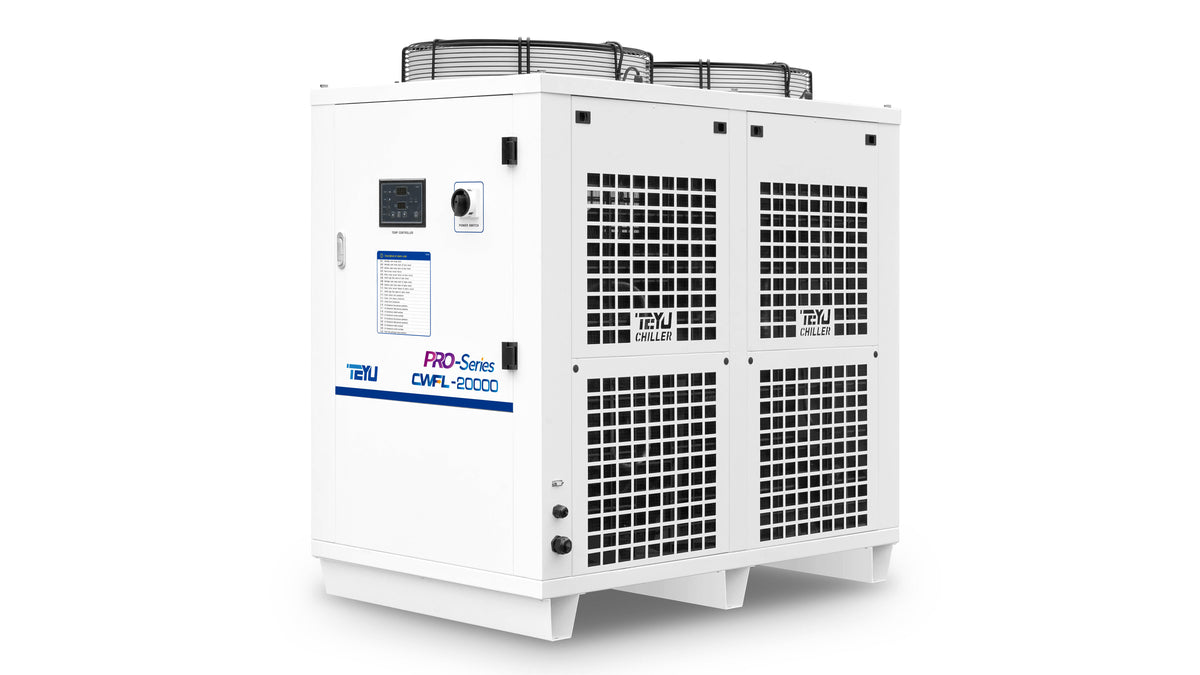

TEYU S&A CWFL-20000 fibre laser water chiller

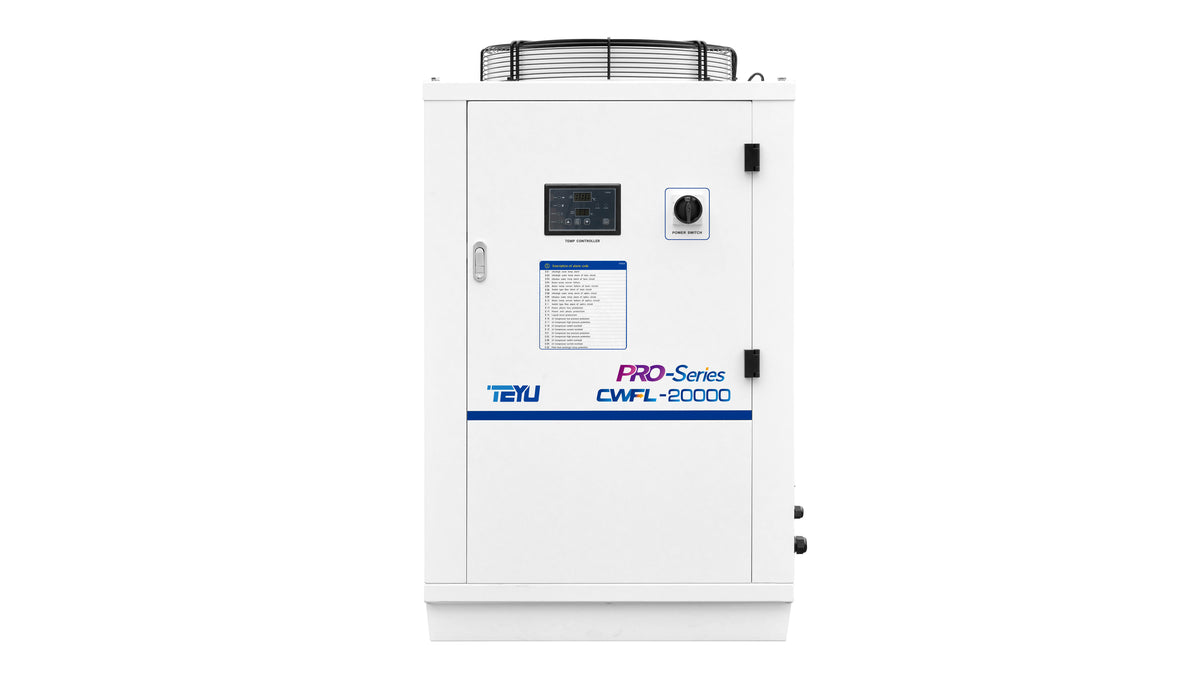

CWFL-20000 fibre laser water chiller view 2

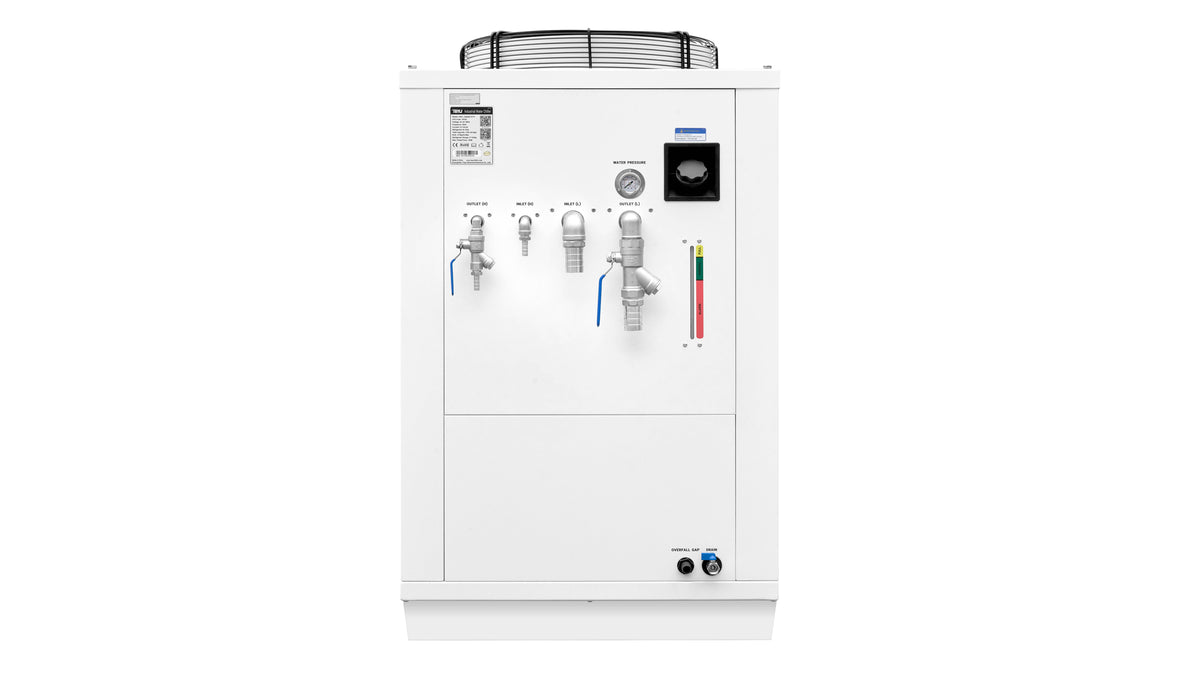

CWFL-20000 fibre laser water chiller view 3

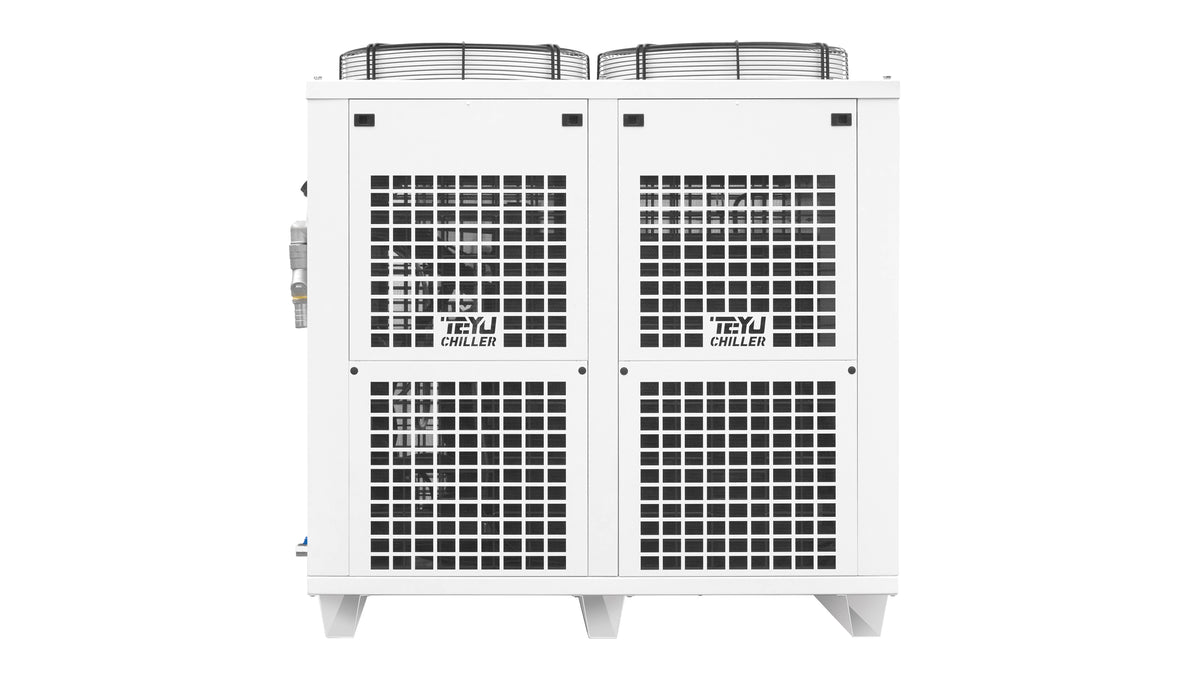

CWFL-20000 fibre laser water chiller view 4
The TEYU S&A CWFL-20000 is a dual-circuit industrial water chiller developed for fibre laser systems up to 20 kW. Separate temperature-control circuits cool the laser source and optical components simultaneously, supporting stable, efficient laser operation.
Key features
- Dual independent cooling circuits for the laser source and optics
- ±1.5°C temperature stability
- 5°C to 35°C temperature-control range
- Intelligent digital controller with integrated alarms
- RS-485 Modbus communication for compatible laser systems
- Active refrigeration using R-410A or R-32 refrigerant
- Back-mounted fill point and visible water-level indicator
Technical specifications
| Recommended laser power | Up to 20 kW |
|---|---|
| Australian supply configuration | AC 3-phase 380 V, 50 Hz (CWFL-20000ETPTY) |
| Nominal cooling capacity | 45 kW / 153,546 BTU/h |
| Temperature stability | ±1.5°C |
| Tank capacity | 170 L |
| Rated flow | 5 L/min + greater than 150 L/min |
| Pump power | 3.5 kW |
| Maximum pump pressure | 8.5 bar |
| Dimensions | 1,410 × 800 × 1,320 mm (L × W × H) |
| Net weight | 279 kg |
| Manufacturer standards | CE, REACH and RoHS |
Product video
Specifications should be confirmed for the final supplied machine.
