SMPS Golden Laser C02 Ultra Flatbed Laser

Regular price
$102,000.00 AUD
Regular price
Sale price
$102,000.00 AUD

Description

****New to the Australian and New Zealand Market****Especially made to our own Specification ****

AVAILABLE WITH LUXINAR SR 15i and SR25i or the OEM 45iX RF METAL LASER TUBE.

ULTRA FLAT BED MAKES IT EASY TO LOAD FROM ANY DIRECTION

The SMPS Golden Laser JYCCJG-130250DT laser cutting and engraving machine range with it 2500mm x 1300mm bed has been designed by Golden Laser in conjunction with SMPS to suit even the toughest of user and with it ultra-flat table top it can handle larger format material loaded from either side or front or back to give you even more versatility and higher production rates.

It does not matter if your cutting thin or thick non-metal materials there is a machine that just perfect for you. Use the market leading Luxinar RF CO2 metal laser tube offering output power of 160W to 450W we have the machine for you to fit your budget and your needs.

Luxinar RF Laser Tube
Luxinar formally ROFIN, RF Metal Laser Tubes are used in the most demanding applications where excellent beam quality, low running costs, high reliability and low maintenance are required.

 Some of the advantages of a Luxinar RF laser tube over CO2 DC Glass Laser Tube include

  • A sharper (smaller) dot size, to give you a finer cut which is particularly helpful for very fine work (i.e. scoring lines on an architectural model).
  • Faster cutting speeds than using the same watts DC laser power.
  • A straighter cross-section than DC laser powers.
  • A finer kerf (amount of material removed by the laser cutting process), giving you higher accuracy with many materials
  • Are designed to operate without high voltage. This makes the Luxinar RF metal lasers inherently safer to operate in almost any environment.
  • The Luxinar RF metal lasers are designed to be durable, provide the highest performance
  • Longer operating life. (20,000hours)
  • After the gas has been consumed it is possible to extend the service life by investing a small amount of money to refill the laser tube.

 The SR series laser, with output powers of 160W for the SR 15i and 250W for the SR 25i, have an integrated RF power supply design and is hermetically sealed, making it ideal for the harshest of industrial environments

The OEM 45iX, with output powers of 450W. The OEM 45iX include an integrated RF power supply enabling short optical pulses with high peak power or quasi-CW output.

 Luxinar has been at the forefront of laser technology for over 20 years and is a leading manufacturer of sealed carbon dioxide (CO2) laser sources up to 1000W and, more recently, femtosecond laser sources. To date, we have an installed base of over 20000 lasers worldwide.

Metal Cutting
If you need to cut thin Stainless or Mild Steel then the combination of the optional Hybrid Cutting Head with Oxygen assist, we can do that too. Our hybrid laser head with oxygen assist and RuiDa autofocus system makes cutting thin metal easy. The RuiDa autofocus system ensures that the Hybrid cutting head tracks the metal surface accurately over warps or bends, providing consistent cutting and gas pressure.

The SR 25i machine allows you to cut up to 18mm acrylic and 20mm mdf/ply in one pass and up to 1.5mm mild steel and 1mm stainless steel. The OEM 45iX allows you to cut up to 30mm acrylic and 18mm mdf/ply in one pass and up to 2.5mm mild steel and 2mm stainless steel. With the OEM 45iX you'll also be able to cut standard thinner materials (e.g. 3mm acrylic) at up to twice the speed of a standard SR 25i  machine, reducing production time by up to 50%!

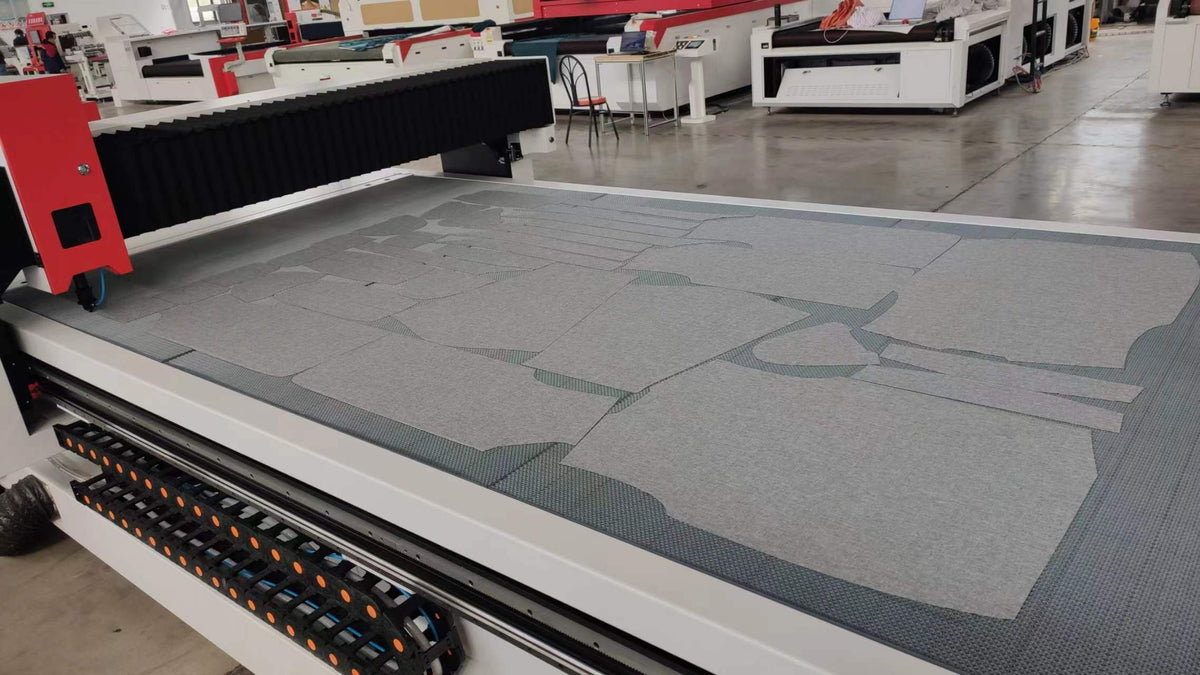

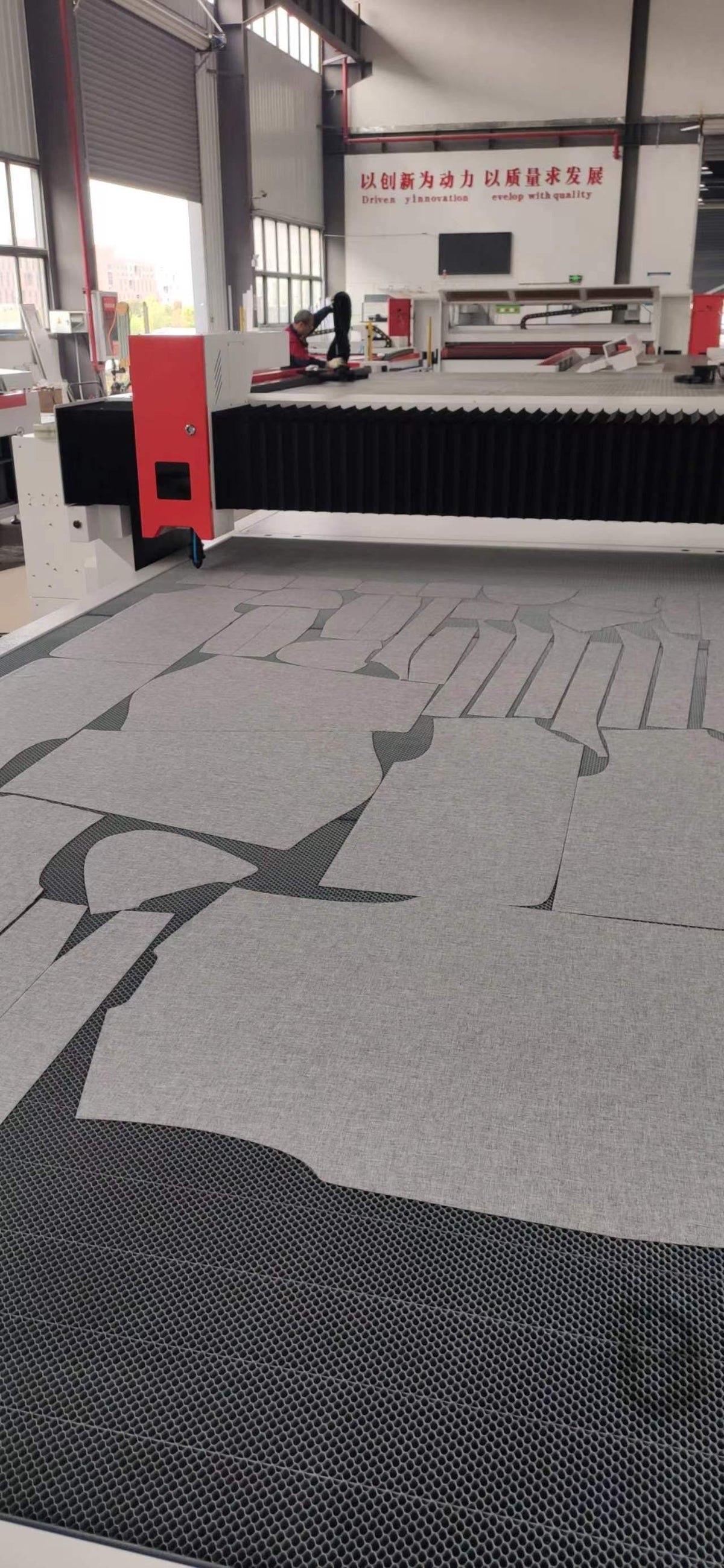

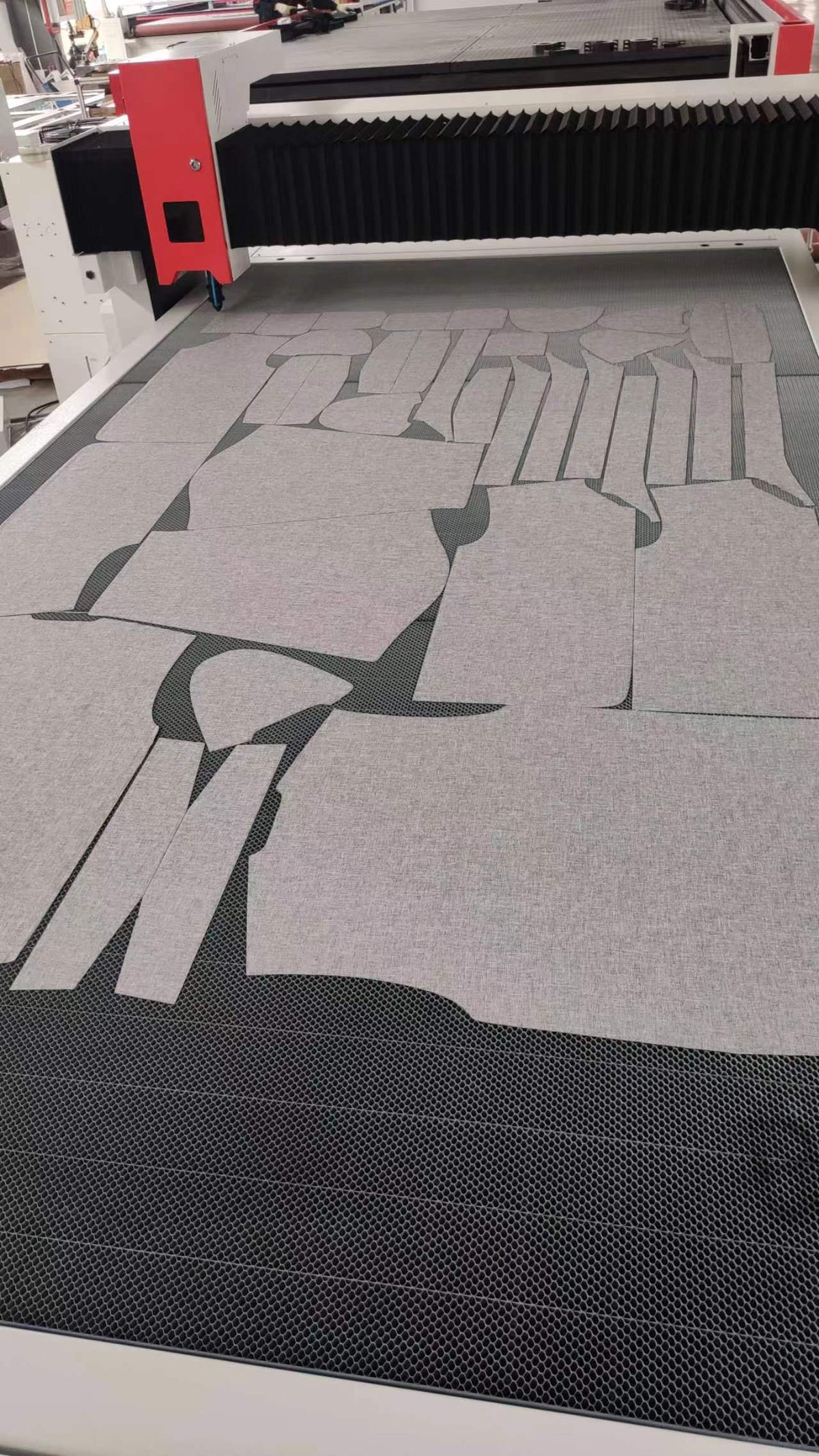

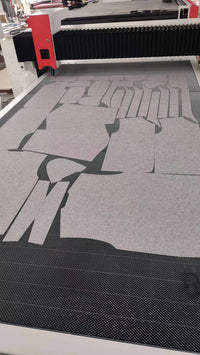

Easy Access Ultra-flat bed
The large bed size and the open design of the machine allows for easy loading of full-size sheet for cutting. Our latest design comes with ball rollers on all 4 faces of the machine to provide a rolling surface for loading and un-loading sheets. Sheets can be loaded easily without scratching or damaging materials.

Drive System
The precision Rack and Pinion drive provides higher accuracy for cutting and engraving when compared to standard belt drive and ball and screw systems. The higher acceleration and deceleration that this machine offers are particularly important for the super high speeds that the more powerful machines move at and also for metal cutting because it ensures consistency of cutting depth and smoother travel for a cleaner edge. The Rack and Pinions are lubricated with an automatic oiling system. You won't find this system on cheaper equipment and most of our more expensive competitors don't offer this solution either.

Machine Specification
Using high-speed laser optics which achieve high cutting speeds with minimal laser optic loss * II-V Focus Lens * Precision servo motor system MADE IN JAPAN * Aluminium Strip-Knife Table * large Chiller Unit for constant operating temperatures * CCD or overhead guarantee camera system for cutting pre-printed product * Red Light Pointer * Special Laser Head/ Auto focus * High Speed/High-Precision Rack & Pinion Drive System which can achieve high transmission accuracy, up to 0.1mm, infinite length continuation and high transmission speeds, larger than 2m/s and maximum acceleration of 10,000mm/s with excellent precision and repeatability that ensures high quality cutting and smooth operation. With X- axis synchronous feeding for 24/7 operation and a service life of more than 20,000 hours, the SMPS GOLDEN LASER-series Flat Bed machines represent stability and performance at an affordable price.

Operating System
All this matched with the RD WORKS or Lightburn Software (other option available) laser cutting and engraving software gives you a powerful yet easy to use design and operating system. The RD WORKS and Lightburn software supports .PLT * .DST * .AI * GLD * .DXF * DWG formats. RDworks is compatible with PC and Lightburn is compatible with both PC and MAC OS computers. The Lightburn software package features easy, intuitive functionality. Click here to trial the Lightburn software

Machine safety
The machine is produced to comply with CE standard
When the laser is used in an enclosed space, it will not harm the human body
The machine is equipped with a safety light curtain to prevent collision with the operator
Equipped with a warning light that operates when the machine is in use
All four corners of the machine are equipped with emergency stop buttons

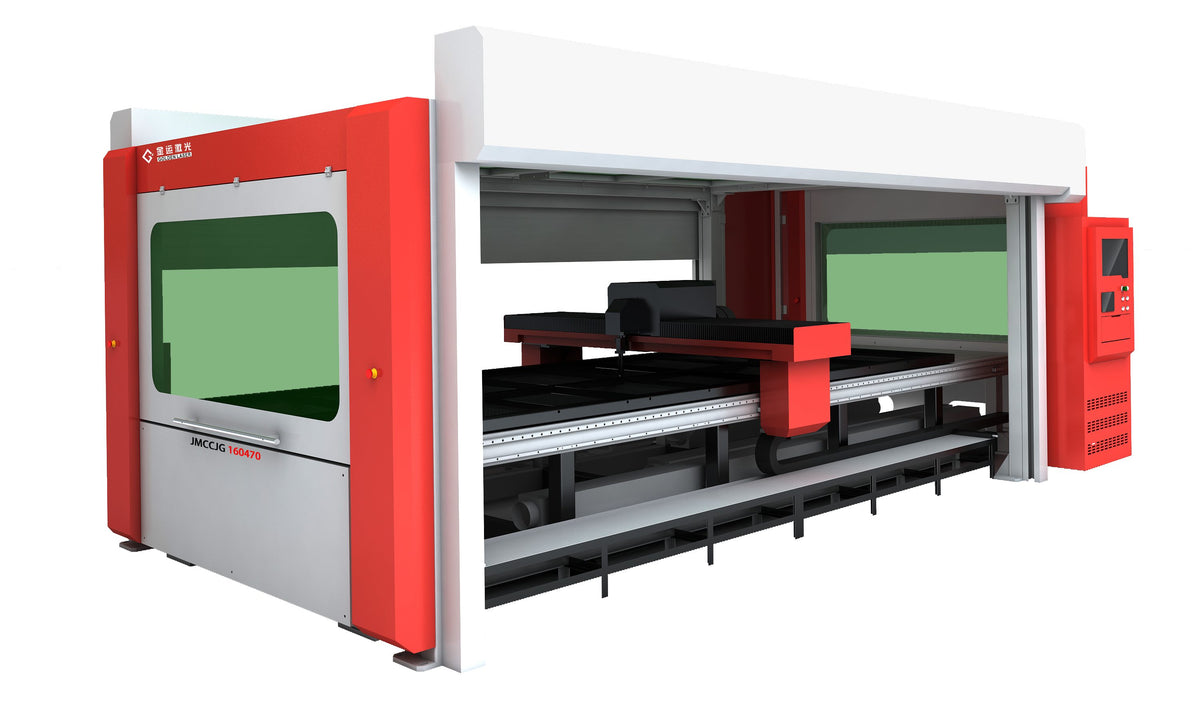

Machine Enclosure
The machine can be supplied in a full enclosure for safety, The enclosure has roller shutter doors and is fitted with Safety Curtains.

Optional Cutting Tables
The machine comes standard with Aluminium slat table but can be fitted with either a honeycomb tube or a metal drive belt table. The drive belt table is particularly useful for cutting fabrics, gasget material or carpet.

Fume Exraction
The machine comes standard with fume exhaust both around the cutting head and from the under the cutting bed. As an option we can supply you with fume extraction systems which are highly recommend for home, office and in fact anywhere where the smell of the laser cutting may be a problem.


Description

****New to the Australian and New Zealand Market****Especially made to our own Specification ****

AVAILABLE WITH LUXINAR SR 15i and SR25i or the OEM 45iX RF METAL LASER TUBE.

ULTRA FLAT BED MAKES IT EASY TO LOAD FROM ANY DIRECTION

The SMPS Golden Laser JYCCJG-130250DT laser cutting and engraving machine range with it 2500mm x 1300mm bed has been designed by Golden Laser in conjunction with SMPS to suit even the toughest of user and with it ultra-flat table top it can handle larger format material loaded from either side or front or back to give you even more versatility and higher production rates.

It does not matter if your cutting thin or thick non-metal materials there is a machine that just perfect for you. Use the market leading Luxinar RF CO2 metal laser tube offering output power of 160W to 450W we have the machine for you to fit your budget and your needs.

Luxinar RF Laser Tube
Luxinar formally ROFIN, RF Metal Laser Tubes are used in the most demanding applications where excellent beam quality, low running costs, high reliability and low maintenance are required.

 Some of the advantages of a Luxinar RF laser tube over CO2 DC Glass Laser Tube include

  • A sharper (smaller) dot size, to give you a finer cut which is particularly helpful for very fine work (i.e. scoring lines on an architectural model).
  • Faster cutting speeds than using the same watts DC laser power.
  • A straighter cross-section than DC laser powers.
  • A finer kerf (amount of material removed by the laser cutting process), giving you higher accuracy with many materials
  • Are designed to operate without high voltage. This makes the Luxinar RF metal lasers inherently safer to operate in almost any environment.
  • The Luxinar RF metal lasers are designed to be durable, provide the highest performance
  • Longer operating life. (20,000hours)
  • After the gas has been consumed it is possible to extend the service life by investing a small amount of money to refill the laser tube.

 The SR series laser, with output powers of 160W for the SR 15i and 250W for the SR 25i, have an integrated RF power supply design and is hermetically sealed, making it ideal for the harshest of industrial environments

The OEM 45iX, with output powers of 450W. The OEM 45iX include an integrated RF power supply enabling short optical pulses with high peak power or quasi-CW output.

 Luxinar has been at the forefront of laser technology for over 20 years and is a leading manufacturer of sealed carbon dioxide (CO2) laser sources up to 1000W and, more recently, femtosecond laser sources. To date, we have an installed base of over 20000 lasers worldwide.

Metal Cutting
If you need to cut thin Stainless or Mild Steel then the combination of the optional Hybrid Cutting Head with Oxygen assist, we can do that too. Our hybrid laser head with oxygen assist and RuiDa autofocus system makes cutting thin metal easy. The RuiDa autofocus system ensures that the Hybrid cutting head tracks the metal surface accurately over warps or bends, providing consistent cutting and gas pressure.

The SR 25i machine allows you to cut up to 18mm acrylic and 20mm mdf/ply in one pass and up to 1.5mm mild steel and 1mm stainless steel. The OEM 45iX allows you to cut up to 30mm acrylic and 18mm mdf/ply in one pass and up to 2.5mm mild steel and 2mm stainless steel. With the OEM 45iX you'll also be able to cut standard thinner materials (e.g. 3mm acrylic) at up to twice the speed of a standard SR 25i  machine, reducing production time by up to 50%!

Easy Access Ultra-flat bed
The large bed size and the open design of the machine allows for easy loading of full-size sheet for cutting. Our latest design comes with ball rollers on all 4 faces of the machine to provide a rolling surface for loading and un-loading sheets. Sheets can be loaded easily without scratching or damaging materials.

Drive System
The precision Rack and Pinion drive provides higher accuracy for cutting and engraving when compared to standard belt drive and ball and screw systems. The higher acceleration and deceleration that this machine offers are particularly important for the super high speeds that the more powerful machines move at and also for metal cutting because it ensures consistency of cutting depth and smoother travel for a cleaner edge. The Rack and Pinions are lubricated with an automatic oiling system. You won't find this system on cheaper equipment and most of our more expensive competitors don't offer this solution either.

Machine Specification
Using high-speed laser optics which achieve high cutting speeds with minimal laser optic loss * II-V Focus Lens * Precision servo motor system MADE IN JAPAN * Aluminium Strip-Knife Table * large Chiller Unit for constant operating temperatures * CCD or overhead guarantee camera system for cutting pre-printed product * Red Light Pointer * Special Laser Head/ Auto focus * High Speed/High-Precision Rack & Pinion Drive System which can achieve high transmission accuracy, up to 0.1mm, infinite length continuation and high transmission speeds, larger than 2m/s and maximum acceleration of 10,000mm/s with excellent precision and repeatability that ensures high quality cutting and smooth operation. With X- axis synchronous feeding for 24/7 operation and a service life of more than 20,000 hours, the SMPS GOLDEN LASER-series Flat Bed machines represent stability and performance at an affordable price.

Operating System
All this matched with the RD WORKS or Lightburn Software (other option available) laser cutting and engraving software gives you a powerful yet easy to use design and operating system. The RD WORKS and Lightburn software supports .PLT * .DST * .AI * GLD * .DXF * DWG formats. RDworks is compatible with PC and Lightburn is compatible with both PC and MAC OS computers. The Lightburn software package features easy, intuitive functionality. Click here to trial the Lightburn software

Machine safety
The machine is produced to comply with CE standard
When the laser is used in an enclosed space, it will not harm the human body
The machine is equipped with a safety light curtain to prevent collision with the operator
Equipped with a warning light that operates when the machine is in use
All four corners of the machine are equipped with emergency stop buttons

Machine Enclosure
The machine can be supplied in a full enclosure for safety, The enclosure has roller shutter doors and is fitted with Safety Curtains.

Optional Cutting Tables
The machine comes standard with Aluminium slat table but can be fitted with either a honeycomb tube or a metal drive belt table. The drive belt table is particularly useful for cutting fabrics, gasget material or carpet.

Fume Exraction
The machine comes standard with fume exhaust both around the cutting head and from the under the cutting bed. As an option we can supply you with fume extraction systems which are highly recommend for home, office and in fact anywhere where the smell of the laser cutting may be a problem.
