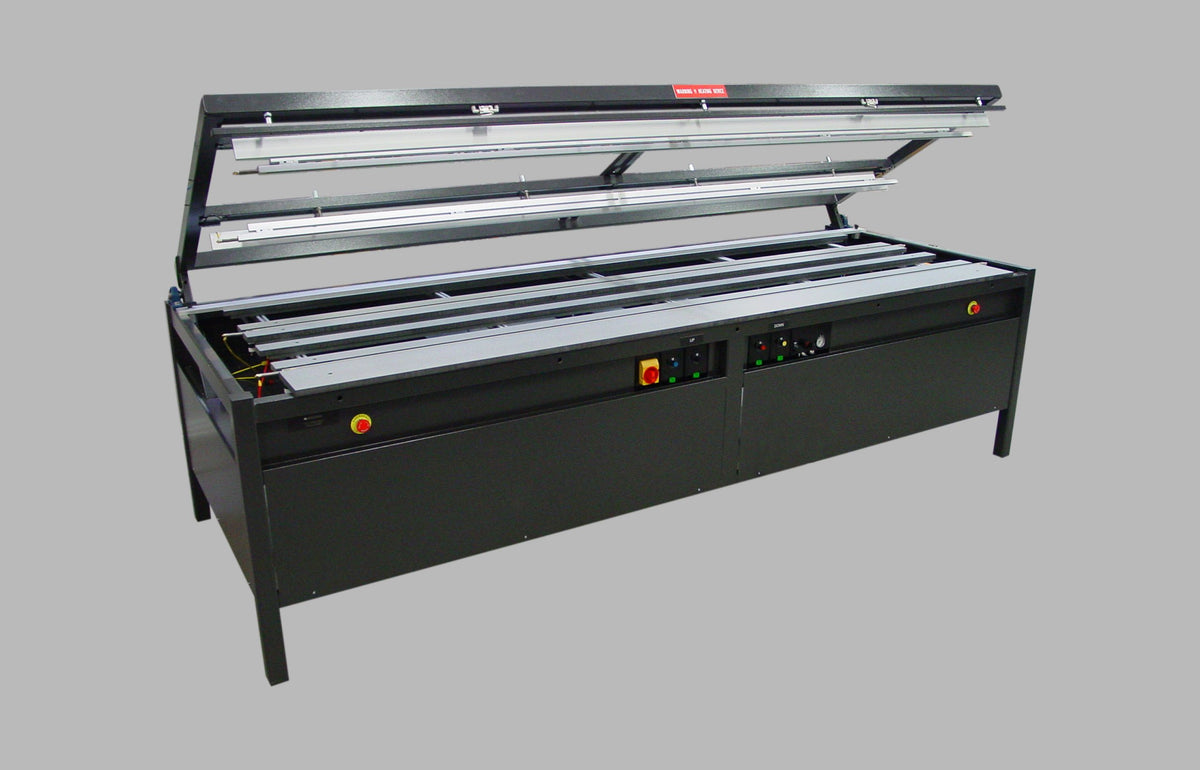

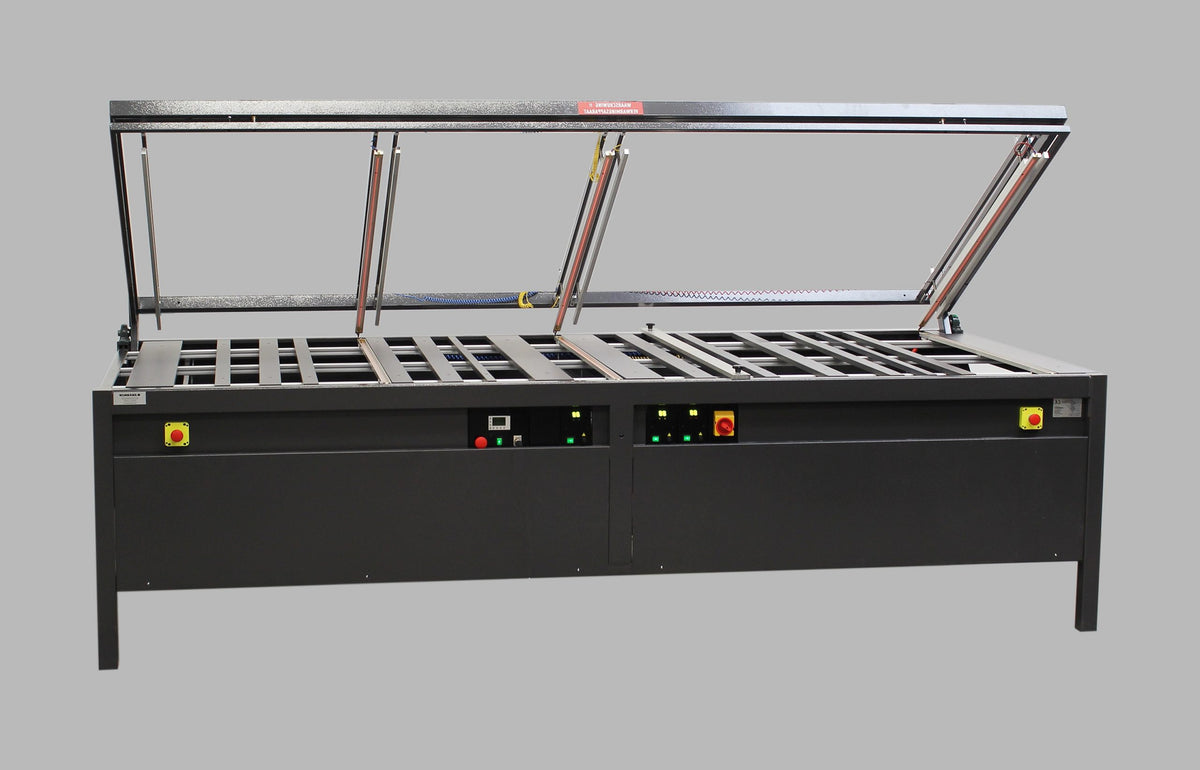

The Shannon HRP-V serie plastic bending machines are special bending machines with vertical heating lines. This way upto 4 bends of 125 cm. length can be made that are upto 3 meters apart!

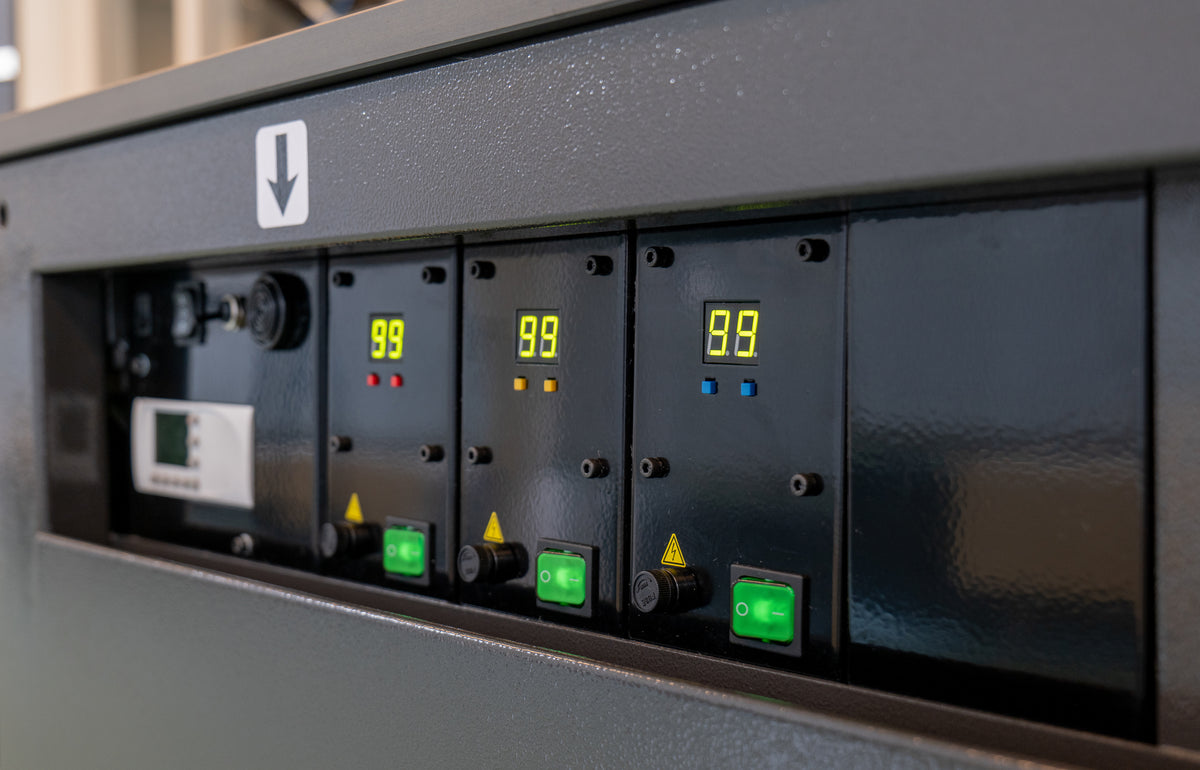

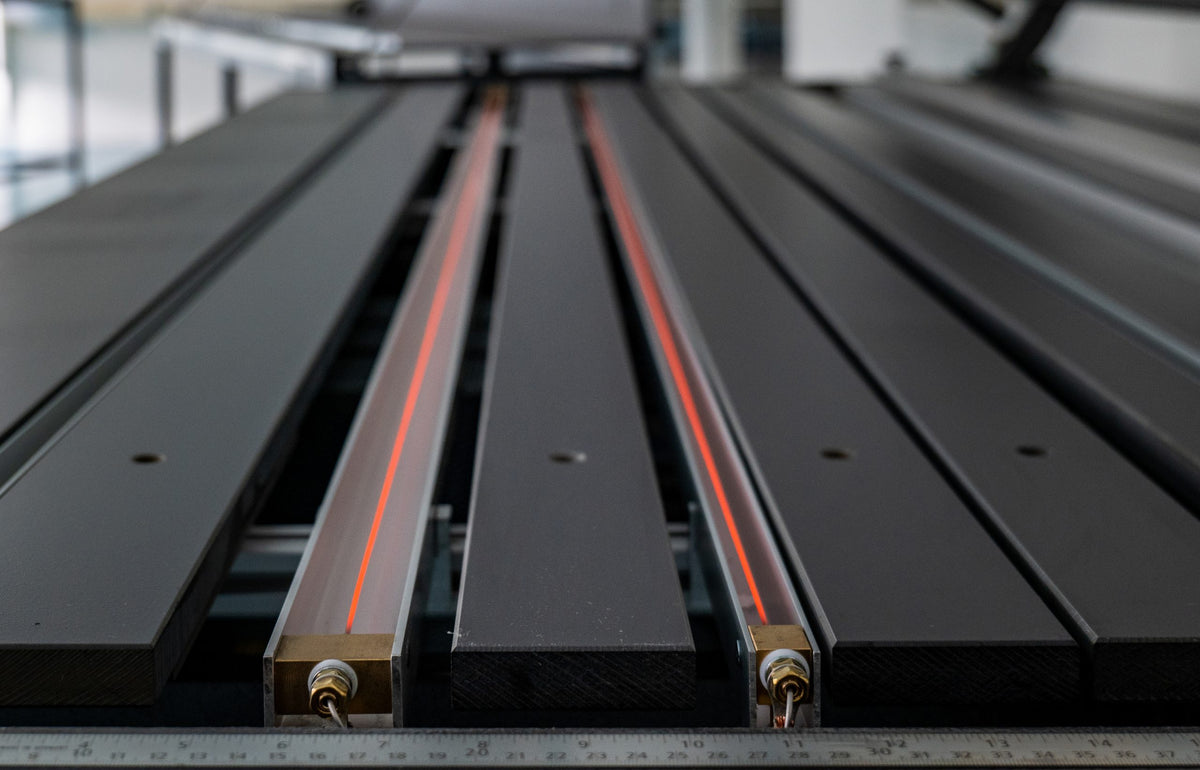

This heavy duty but modestly priced plastic sheet bending machines has both bottom and top heating lines can easily be controlled in temperature. The heating lines can be positioned into place and the wires in the profiles are adjustable in height. The two-sided heating of the HRP-V series enables the processing of the plastic plates faster, but above all, it also reduces stress and can handle thicker materials and polycarbonate.
The time controlled upper frame has adjustable pressure bars that hold the plates in place and prevent warping (banana effect). The upper frame is controlled by a foot pedal and timer switch.
The durable heat resistant worktop consists of multiple adjustable panels and has a parallel stop with millimetre and inch indication. The machine is modular built and is already prepared internally so that it can be easily extended with multiple heating profiles and/or control units.
- 3 years warranty & CE certified
- Pay with Bitcoin and get 10% discount
- Made in Holland
- Free packaging on orders >€1.500,- ordered from Webshop
Product information
| Type | HRP-V 220 |
|---|---|
| Model type | Floor model |
| Bending method | Manual |
| Bending lines | Multiple lines |
| Heating method | Double sided |
| Under heating | 2/3/4 |
| Upper heating | 2/3/4 |
| Modular extendable | Yes |
| Distance between 2 bends | 30 - 2200 mm. |
| Number of clamps | 2/3/4 |
| Construction | 2/3/4 heating lines bottom and 2/3/4 top |
| Working length | 1250 mm. |
| Working thickness | 1,0 - 10 mm. |
| Maximum thickness | 20 mm. |
| Connection voltage | 230 Volt |
| Electrical usage | 2/3/4 kW. |
| Dimensions (LxWxH) | 2390x1300x1720 mm. |
| Weight | 470 kg. |
Product information
| Type | HRP-V 300 |
|---|---|
| Model type | Floor model |
| Bending method | Manual |
| Bending lines | Multiple lines |
| Heating method | Double sided |
| Under heating | 2/3/4 |
| Upper heating | 2/3/4 |
| Modular extendable | Yes |
| Distance between 2 bends | 30 - 3000 mm. |
| Number of clamps | 2/3/4 |
| Construction | 2/3/4 heating lines bottom and 2/3/4 top |
| Working length | 1250 mm. |
| Working thickness | 1,0 - 10 mm. |
| Maximum thickness | 20 mm. |
| Connection voltage | 230 Volt |
| Electrical usage | 2/3/4 kW. |
| Dimensions (LxWxH) | 3190x1300x1720 mm. |
| Weight | 570 kg. |
