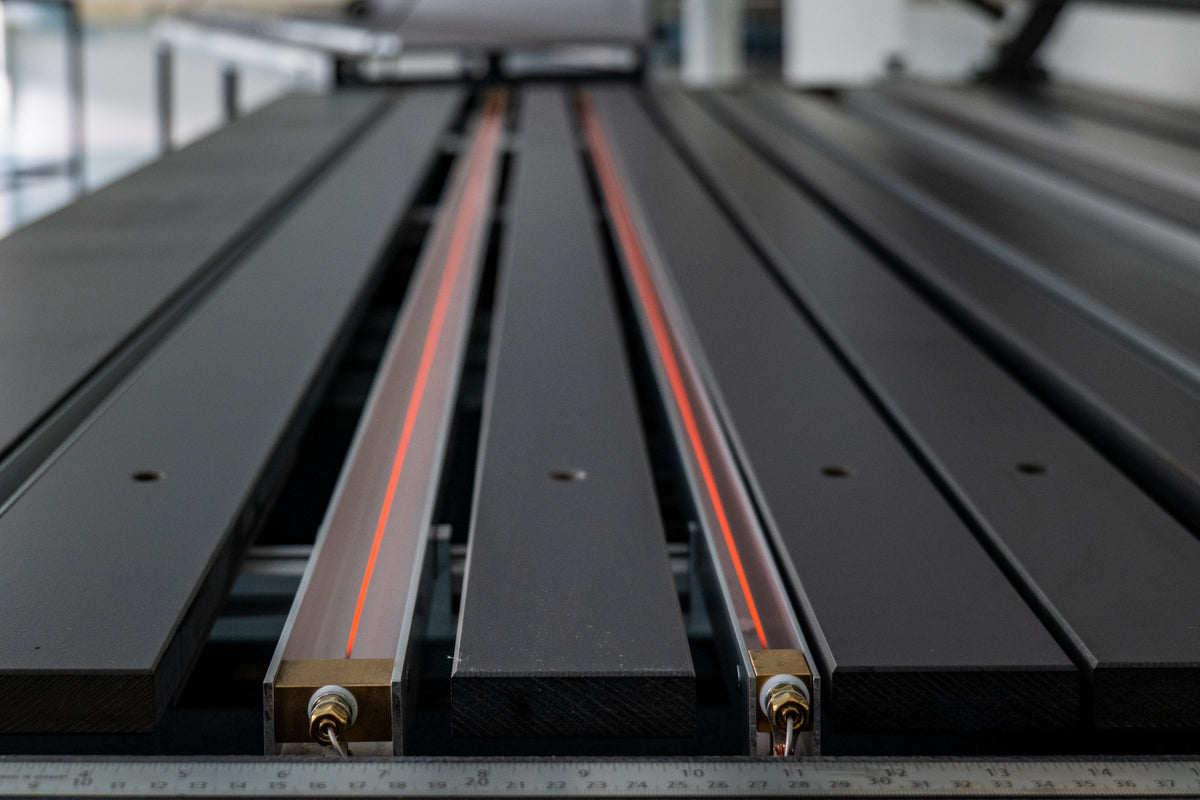

The Shannon HRP-Si serie plastic bending machines are heavy duty but modestly priced plastic sheet bending machines with both bottom and top heating, consisting of digital controlled heating wires. The heating profiles can be easily positioned into place and the wires in the profiles are adjustable in height. The two-sided heating of the HRP-S series enables the processing of the plastic plates faster, but above all, it also reduces stress and can handle thick materials and PC. The upper frame has adjustable pressure bars that hold the plates in place and prevent warping (banana effect). The upper frame is controlled by a foot pedal and timer switch. The durable heat resistant worktop consists of multiple adjustable panels and has a parallel stop with millimetre and inch indication. The machine is modular built and is already prepared internally so that it can be easily extended with multiple heating profiles and control units.
Description

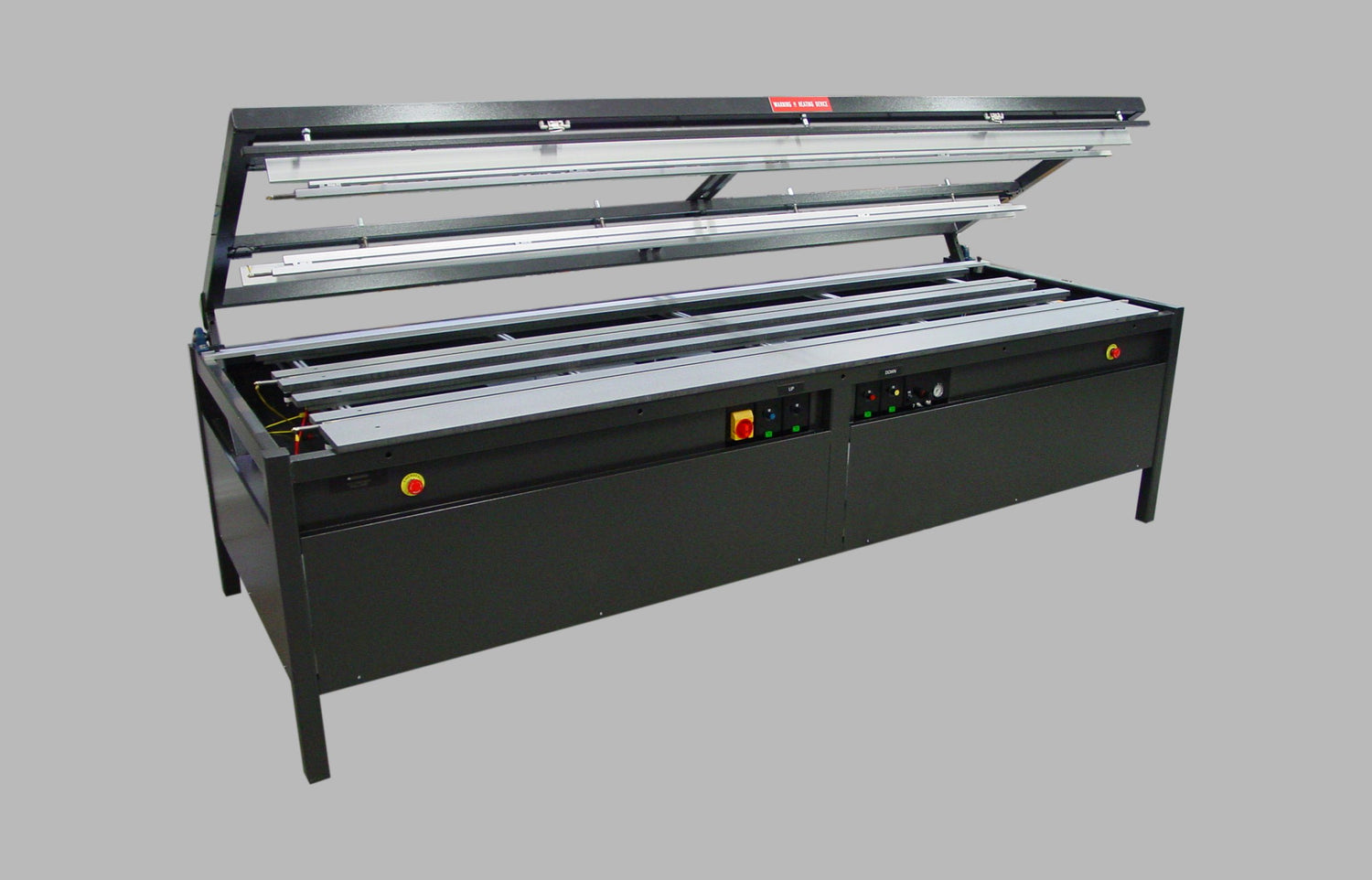

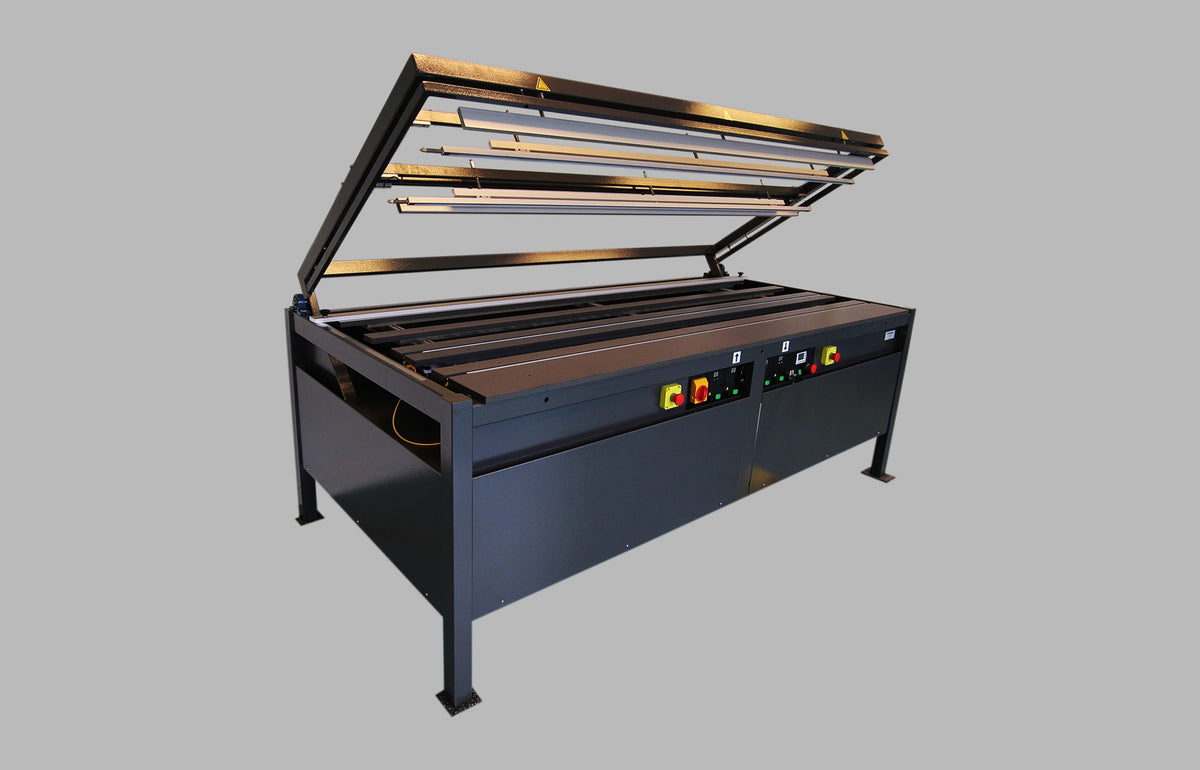

Floor model machine with double side heating, time controlled top frame and with 2200 mm or 3000 mm working length.
Equipped with up to 4 digital temperature control units, with a maximum capacity of 4 heating lines bottom and 2 heating lines top.
The HRP-S 300 comes standard with parallel back stop and 2 clamping bars
The HRP-S 220 comes standard with parallel back stop and 1 clamping bar
- 3 year warranty
- CE Certified
- Made in Holland
Product information
| Type | HRP-Si 220 |
|---|---|
| Model type | Floor model |
| Bending method | Manual |
| Bending lines | Multiple lines |
| Heating method | Double sided |
| Under heating | 1 to 4 |
| Upper heating | 1 or 2 |
| Modular extendable | Yes |
| Distance between 2 bends | 20 - 1000 mm. |
| Number of clamps | 1 |
| Construction | 1 heating line bottom and 1 top |
| Working length | 2200 mm. |
| Working thickness | 1,0 - 12 mm. |
| Maximum thickness | 15 mm. |
| Connection voltage | 230 Volt |
| Electrical usage | 2 kW. |
| Dimensions (LxWxH) | 2390x1300x1720 mm. |
| Weight | 470 kg. |
| Type | HRP-Si 300 |
|---|---|
| Model type | Floor model |
| Bending method | Manual |
| Bending lines | Multiple lines |
| Heating method | Double sided |
| Under heating | 1 or 2 |
| Upper heating | 1 to 4 |
| Modular extendable | Yes |
| Distance between 2 bends | 20 - 1000 mm. |
| Number of clamps | 1 |
| Construction | 1 heating line bottom and 1 top |
| Working length | 3000 mm. |
| Working thickness | 1,0 - 12 mm. |
| Maximum thickness | 15,0 mm. |
| Connection voltage | 230 Volt |
| Electrical usage | 2 kW. |
| Dimensions (LxWxH) | 3390x1300x1720 mm. |
| Weight | 570 kg. |
