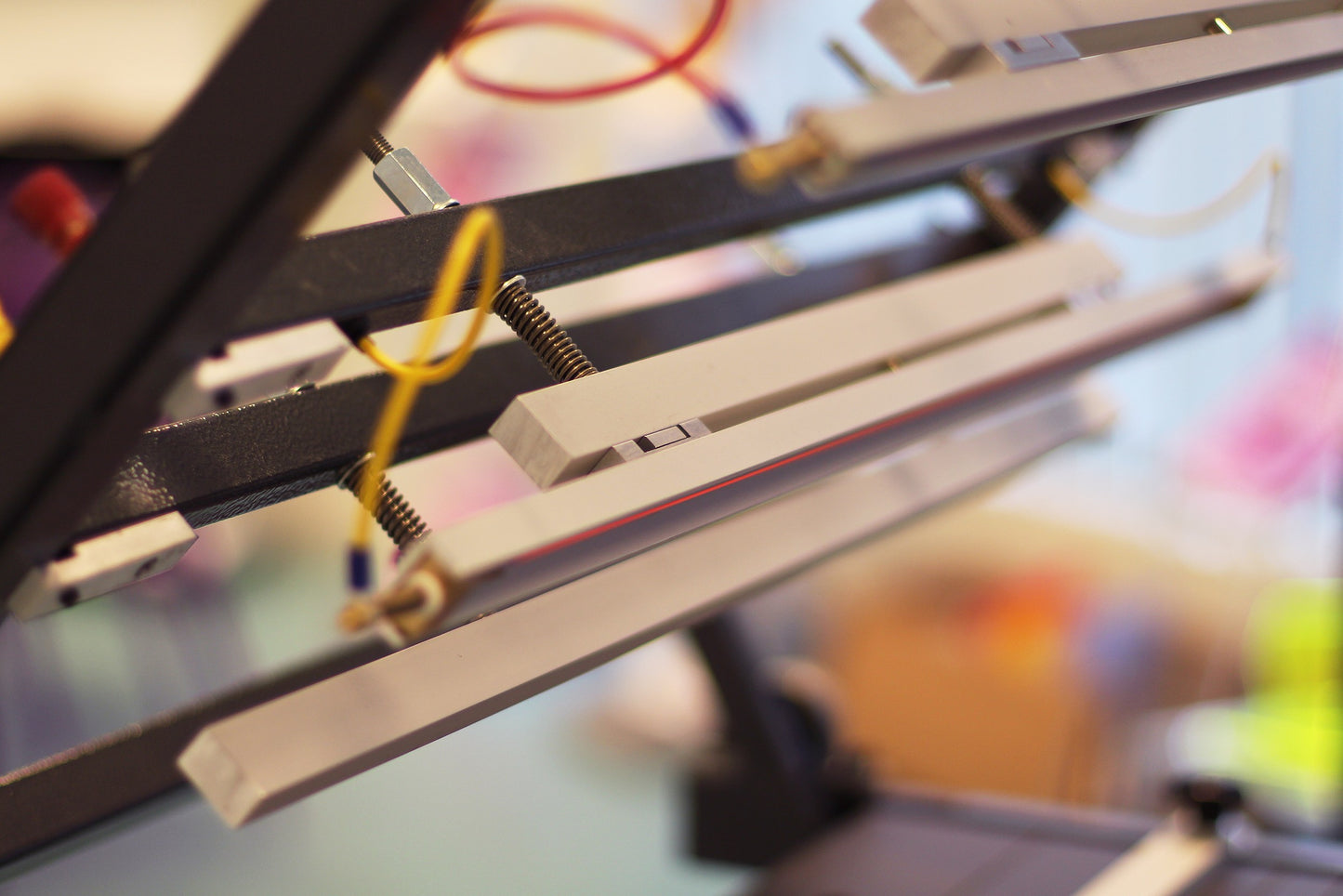

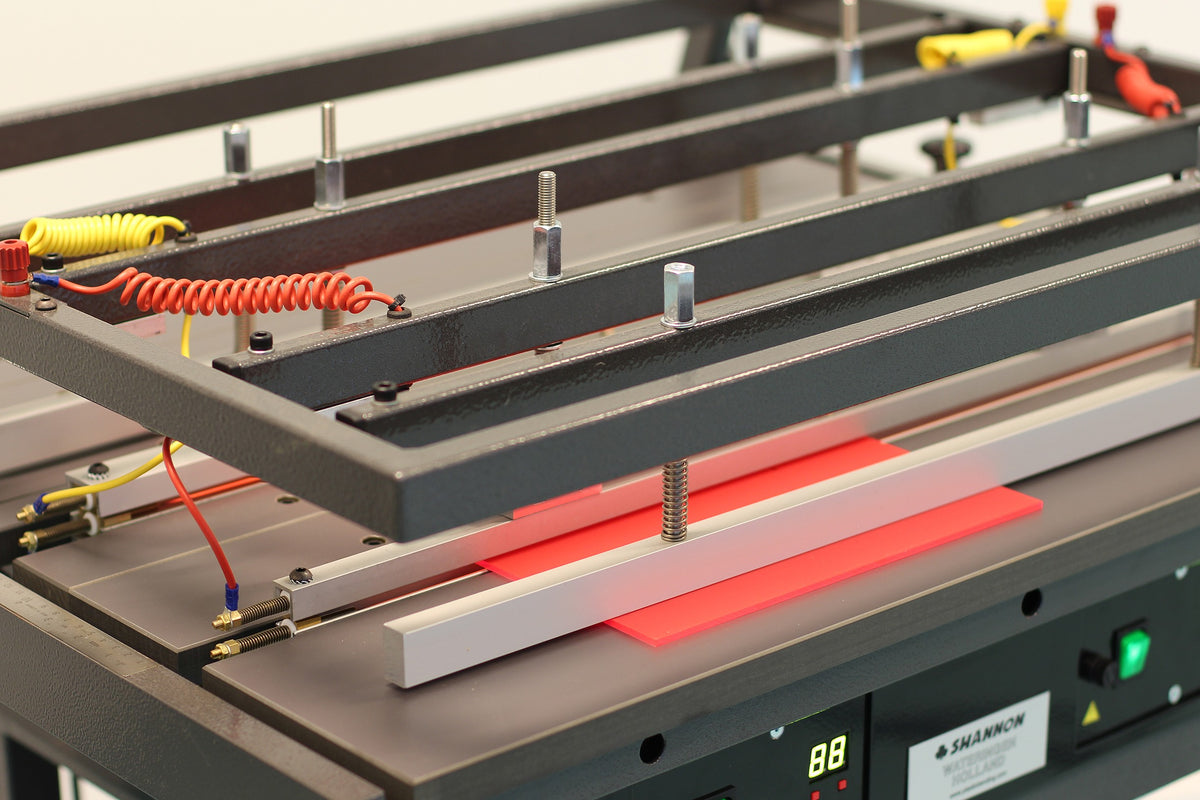

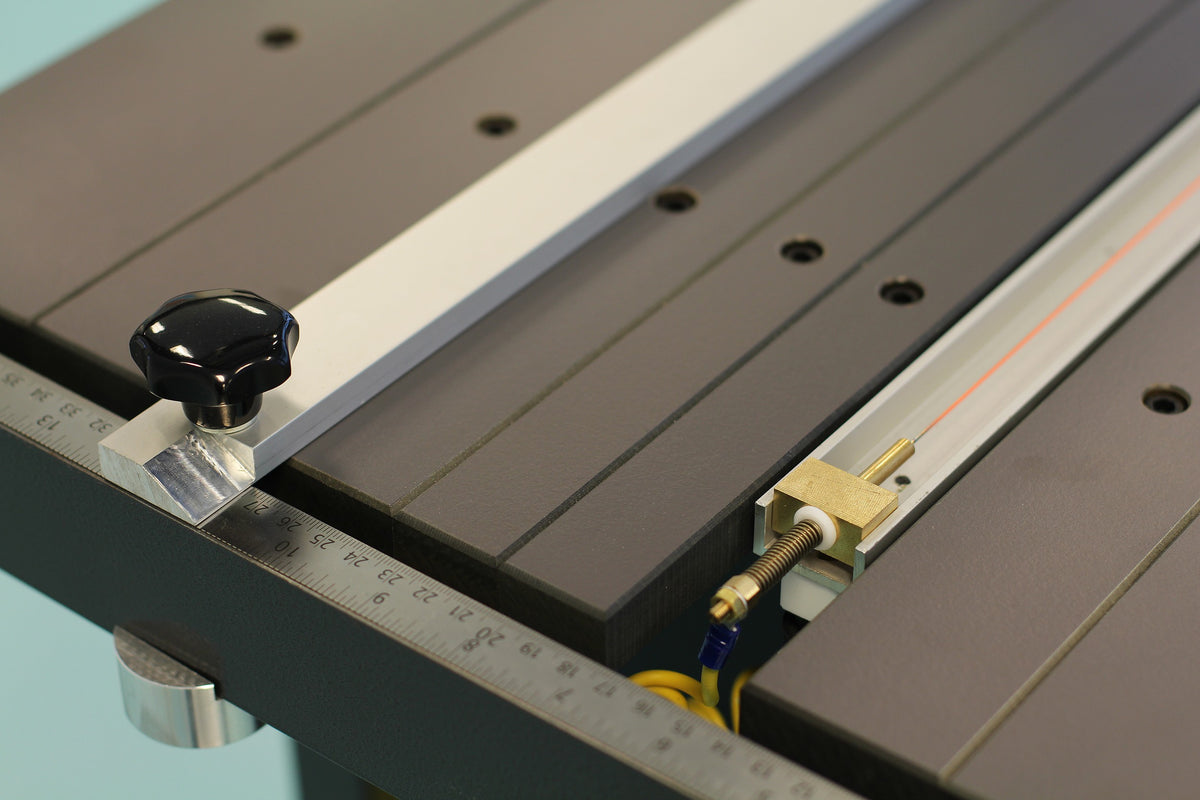

The Shannon HRK series are highly productive plastic sheet bending machines with both bottom and top heating. The heating profiles can be adjusted to the correct position and the heating wires are adjustable in height. The two-sided heating of the HRK series enables the processing of the plastic sheets faster, but above all, it reduces the stress in the material and can handle thicker materials and polycarbonate. The pneumatic upper frame has adjustable pressure bars that hold the plates in place and prevent warping (banana effect). The upper frame is controlled by a foot pedal, timer switch and emergency stop. The durable heat resistant worktop consists of multiple adjustable panels and has a parallel stop with millimetre and inch indication. The machine is modular built and is already prepared internally so that it can be easily extended with multiple heating profiles and/or control units.
HRK Description
Machine has double side heating, electronic timer and comes in two working lengths.
Can be equipped with multiple temperature control units for heating up to 4 lines bottom and 4 heating line top on the HRK125 model and up to 2 lines top and 2 lines bottom on the HRK65 model.
Comes standard with parallel back stop and 1 clamping bar extra clamping bars are optional.
| Type | HRK 65 |
|---|---|
| Model type | Table model |
| Bending method | Manual |
| Bending lines | Multiple lines |
| Heating method | Double sided |
| Under heating | 1 or 2 |
| Upper heating | 1 or 2 |
| Modular extendable | Yes |
| Distance between 2 bends | 15 - 445 mm. |
| Number of clamps | 2 |
| Construction | 2 heating lines bottom and 2 top |
| Working length | 650 mm. |
| Working thickness | 1,0 - 6,0 mm. |
| Maximum thickness | 12 mm. |
| Connection voltage | 230 Volt |
| Electrical usage | 600 Watt. |
| Dimensions (LxWxH) | 835x580x660 mm. |
| Weight | 70 kg. |
| Type | HRK 125 |
|---|---|
| Model type | Table model |
| Bending method | Manual |
| Bending lines | Multiple lines |
| Heating method | Double sided |
| Under heating | 1 to 4 |
| Upper heating | 1 to 4 |
| Modular extendable | Yes |
| Distance between 2 bends | 15 - 610 mm. |
| Number of clamps | 1 |
| Construction | 1 heating line bottom and 1 top |
| Working length | 1250 mm. |
| Working thickness | 1,0 - 6,0 mm. |
| Maximum thickness | 20 mm. |
| Connection voltage | 230 Volt |
| Electrical usage | 1 kW. |
| Dimensions (LxWxH) | 1470x680x740 mm. |
| Weight |
125 kg. |
The Shannon HRK series are highly productive plastic sheet bending machines with both bottom and top heating. The heating profiles can be adjusted to the correct position and the heating wires are adjustable in height. The two-sided heating of the HRK series enables the processing of the plastic sheets faster, but above all, it reduces the stress in the material and can handle thicker materials and polycarbonate. The pneumatic upper frame has adjustable pressure bars that hold the plates in place and prevent warping (banana effect). The upper frame is controlled by a foot pedal, timer switch and emergency stop. The durable heat resistant worktop consists of multiple adjustable panels and has a parallel stop with millimetre and inch indication. The machine is modular built and is already prepared internally so that it can be easily extended with multiple heating profiles and/or control units.
HRK Description
Machine has double side heating, electronic timer and comes in two working lengths.
Can be equipped with multiple temperature control units for heating up to 4 lines bottom and 4 heating line top on the HRK125 model and up to 2 lines top and 2 lines bottom on the HRK65 model.
Comes standard with parallel back stop and 1 clamping bar extra clamping bars are optional.
| Type | HRK 65 |
|---|---|
| Model type | Table model |
| Bending method | Manual |
| Bending lines | Multiple lines |
| Heating method | Double sided |
| Under heating | 1 or 2 |
| Upper heating | 1 or 2 |
| Modular extendable | Yes |
| Distance between 2 bends | 15 - 445 mm. |
| Number of clamps | 2 |
| Construction | 2 heating lines bottom and 2 top |
| Working length | 650 mm. |
| Working thickness | 1,0 - 6,0 mm. |
| Maximum thickness | 12 mm. |
| Connection voltage | 230 Volt |
| Electrical usage | 600 Watt. |
| Dimensions (LxWxH) | 835x580x660 mm. |
| Weight | 70 kg. |
| Type | HRK 125 |
|---|---|
| Model type | Table model |
| Bending method | Manual |
| Bending lines | Multiple lines |
| Heating method | Double sided |
| Under heating | 1 to 4 |
| Upper heating | 1 to 4 |
| Modular extendable | Yes |
| Distance between 2 bends | 15 - 610 mm. |
| Number of clamps | 1 |
| Construction | 1 heating line bottom and 1 top |
| Working length | 1250 mm. |
| Working thickness | 1,0 - 6,0 mm. |
| Maximum thickness | 20 mm. |
| Connection voltage | 230 Volt |
| Electrical usage | 1 kW. |
| Dimensions (LxWxH) | 1470x680x740 mm. |
| Weight |
125 kg. |
