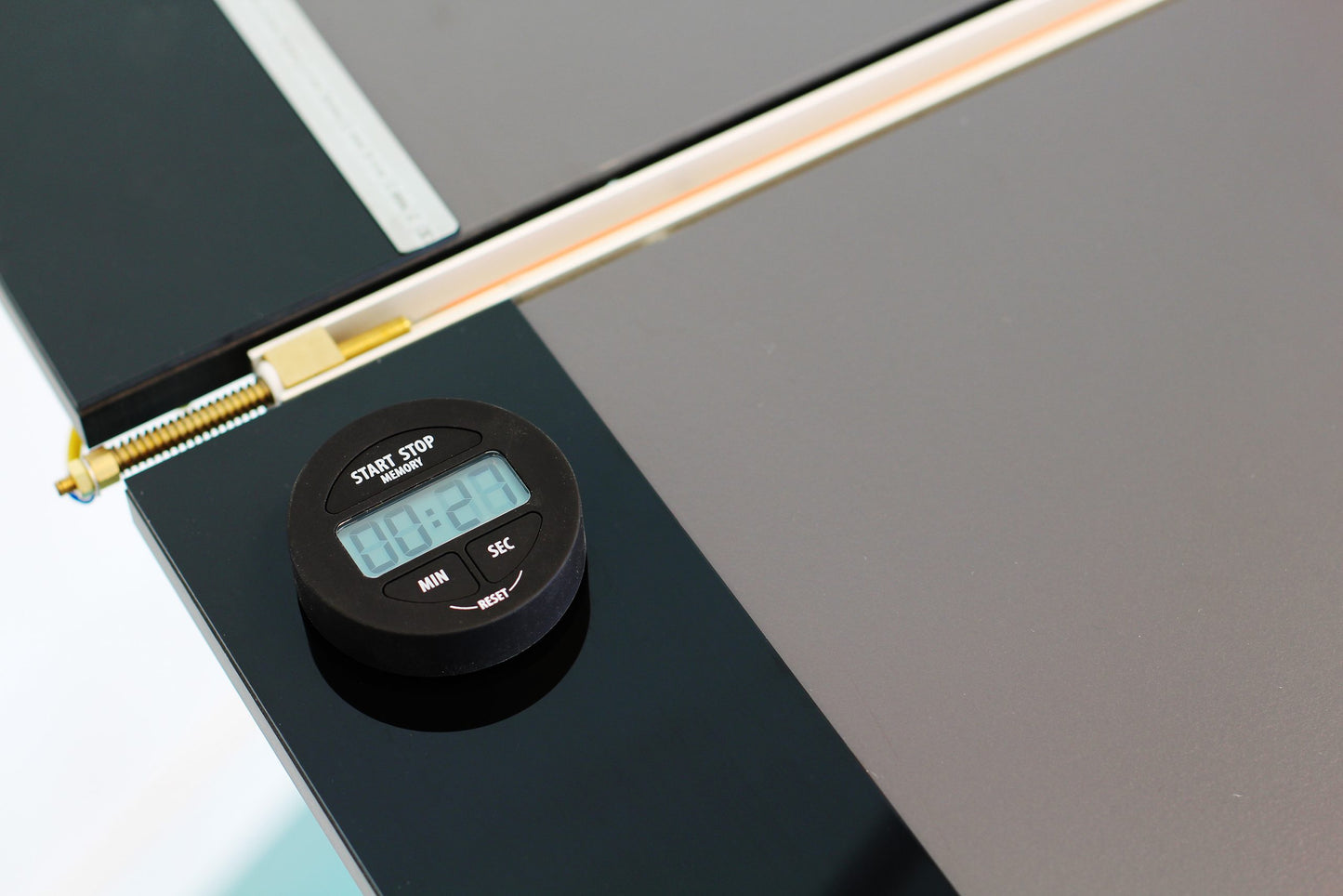

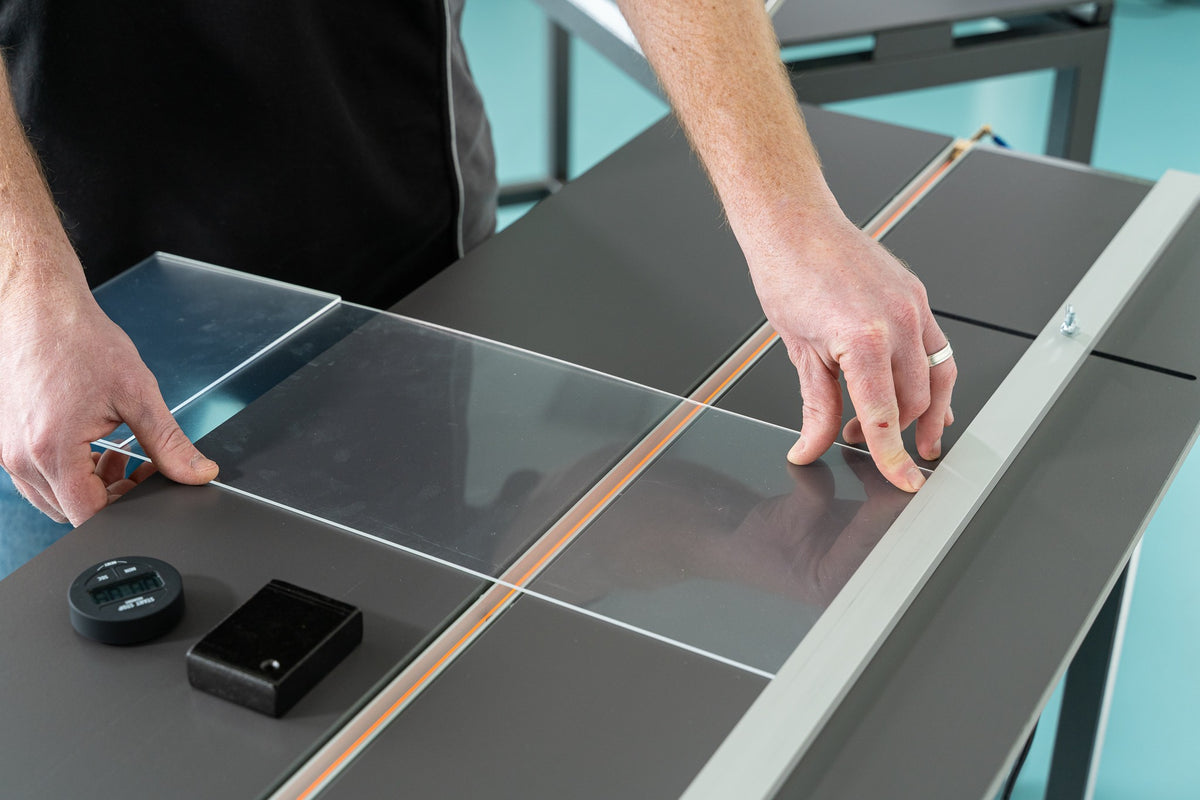

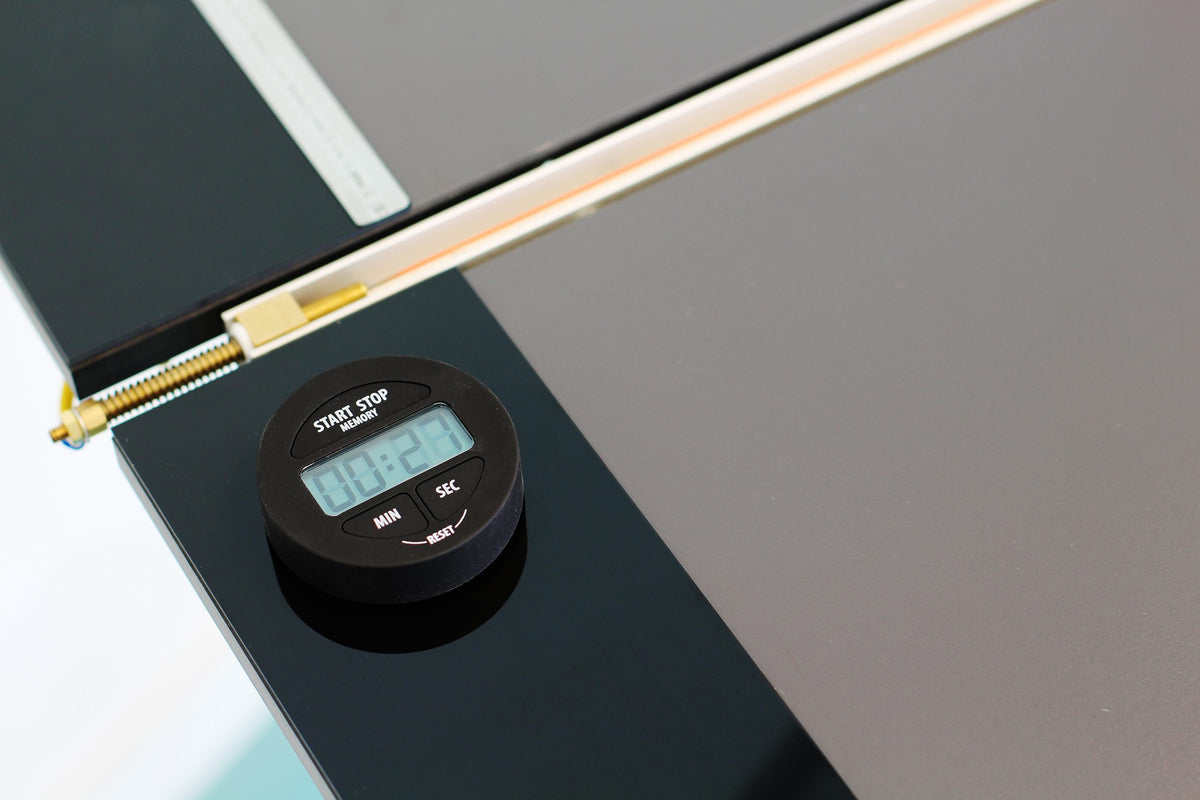

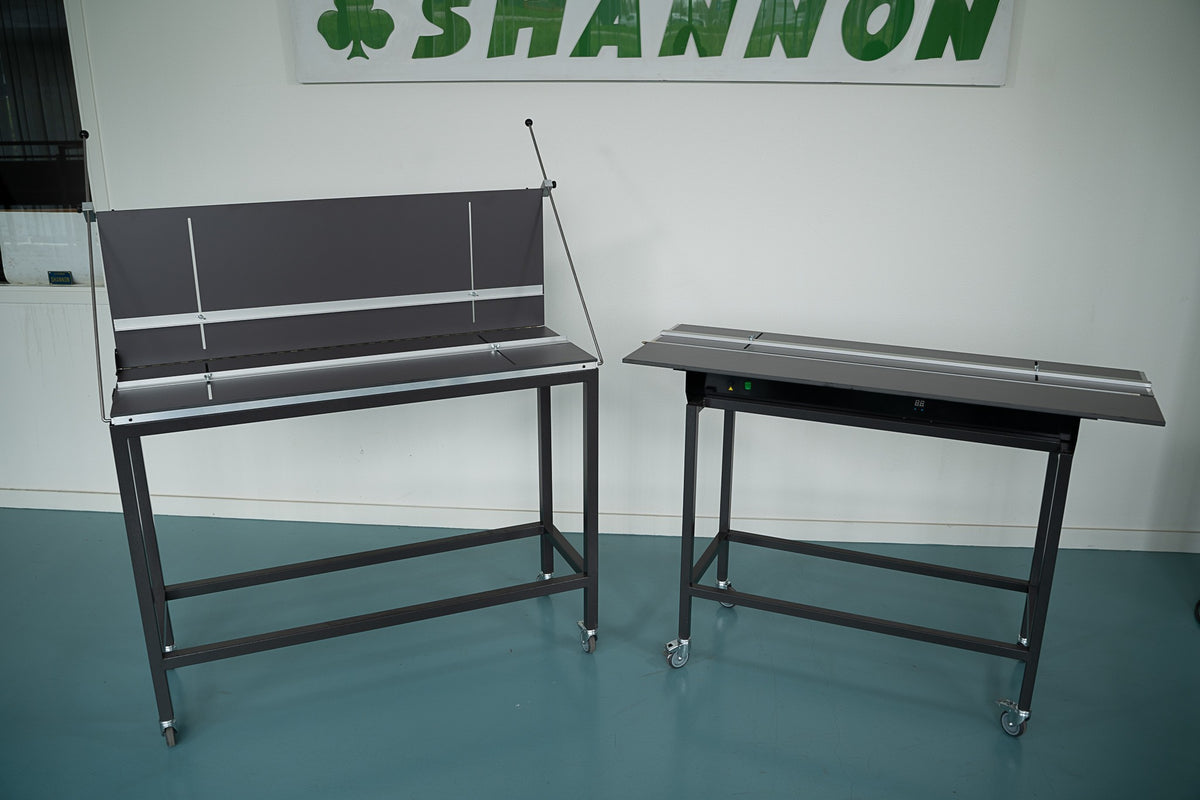

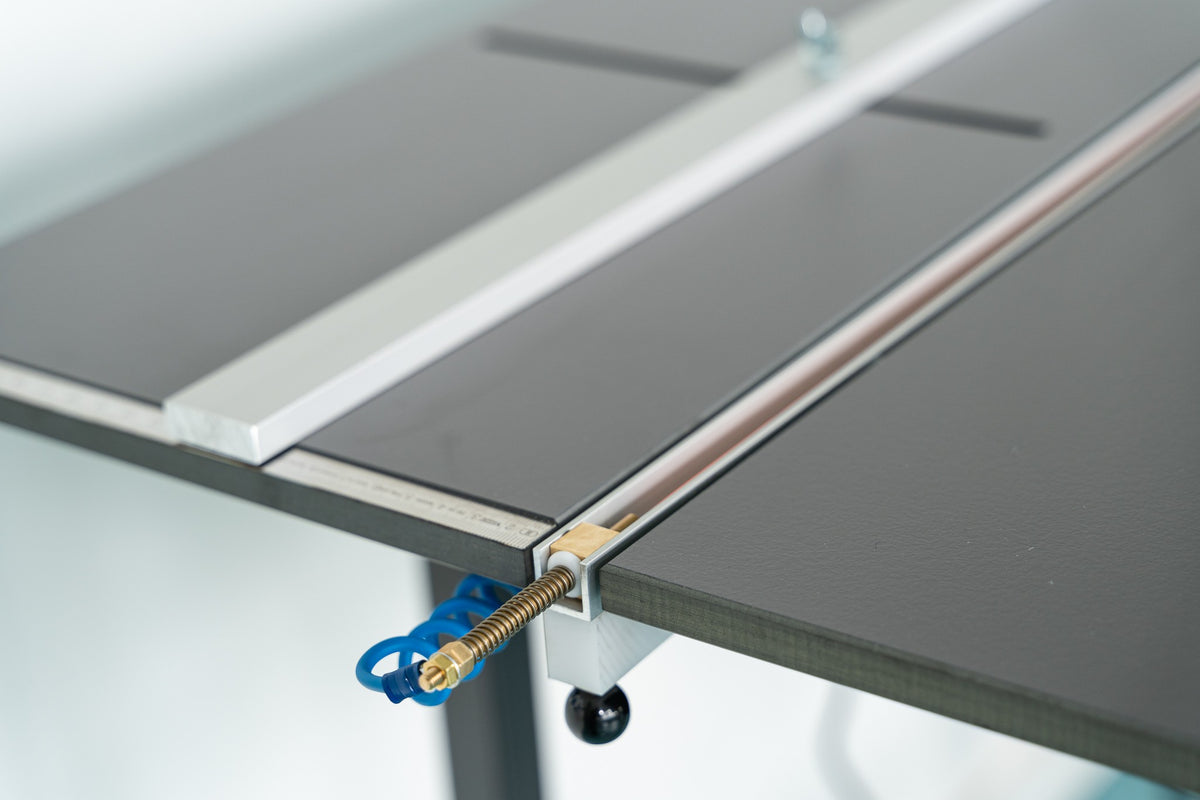

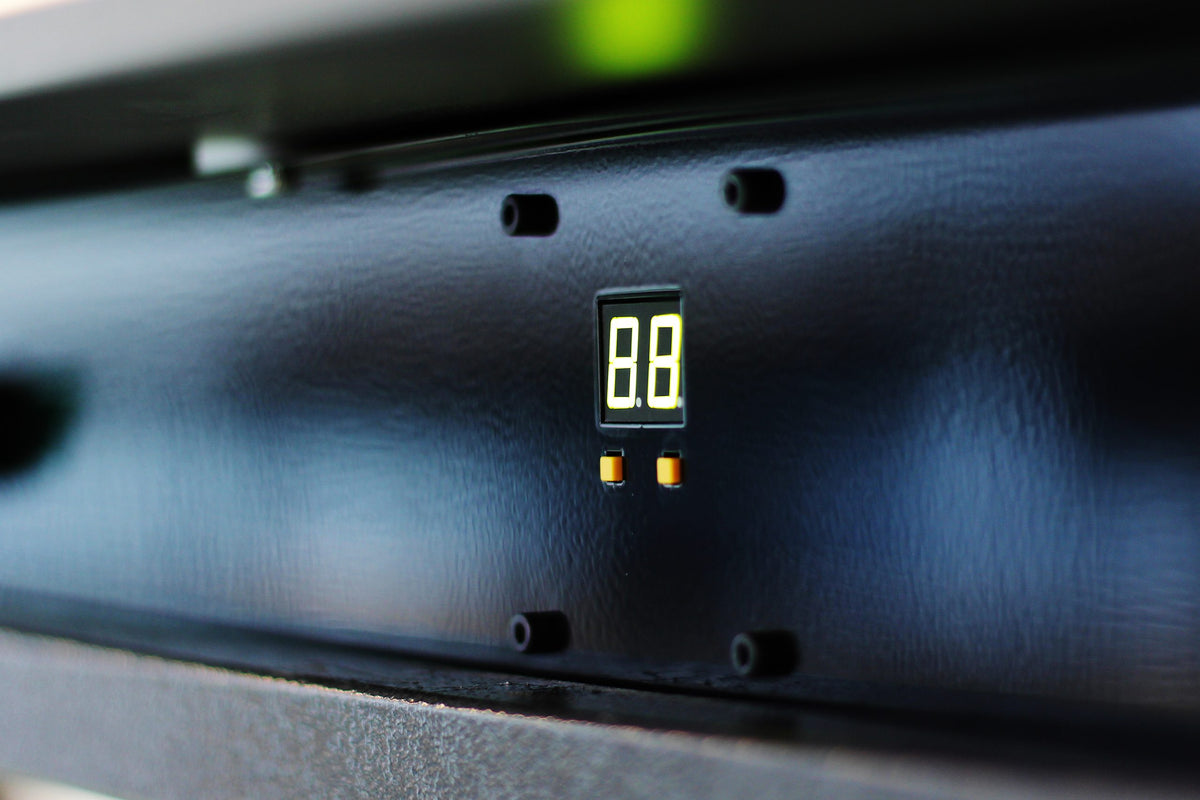

The Shannon HR is a very user-friendly, plastic bending machine. It is equipped with a single bottom heat bending line, consisting of a profile with a height adjustable heating wire. The temperature of the heating wire is very precisely adjustable electronically by means of a control unit. The durable heat resistant worktop has a scratch-resistant top layer and is equipped with a parallel back-stop with 2 rulers or a side-stop and a single ruler.

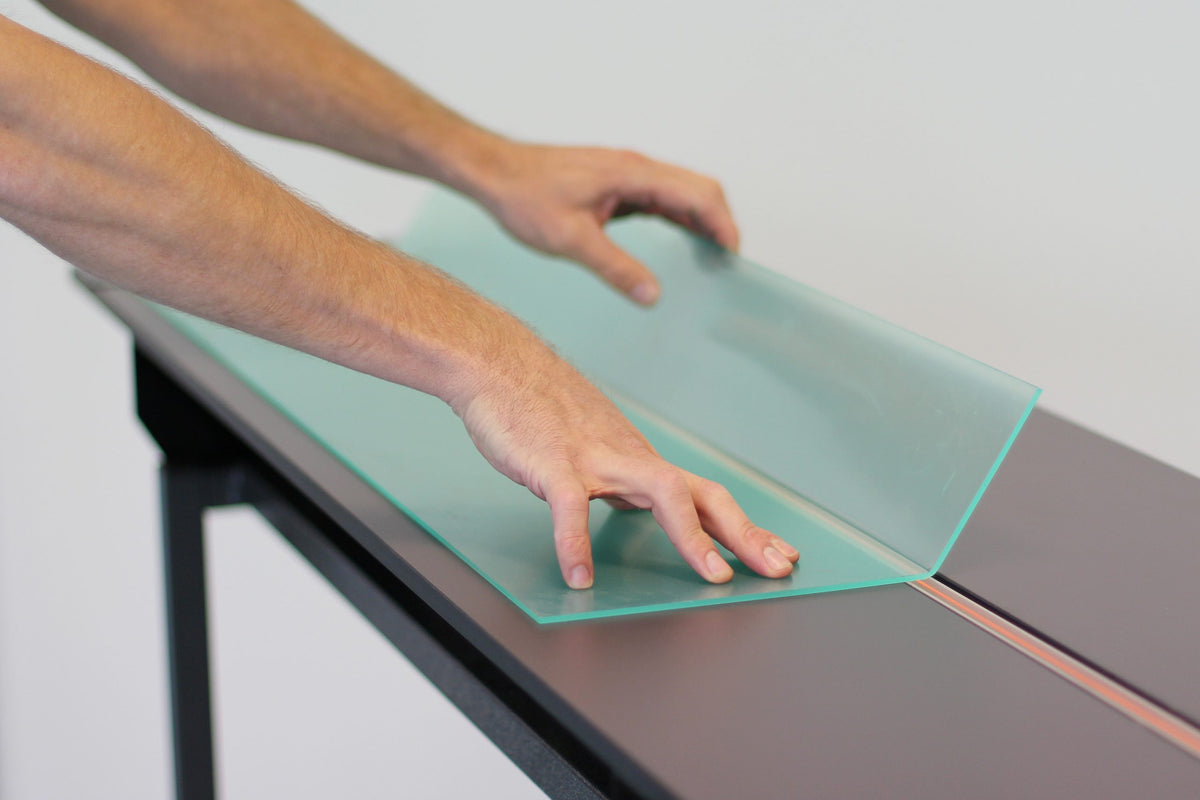

Professional acrylic sheet bending machine with single heat bending line.

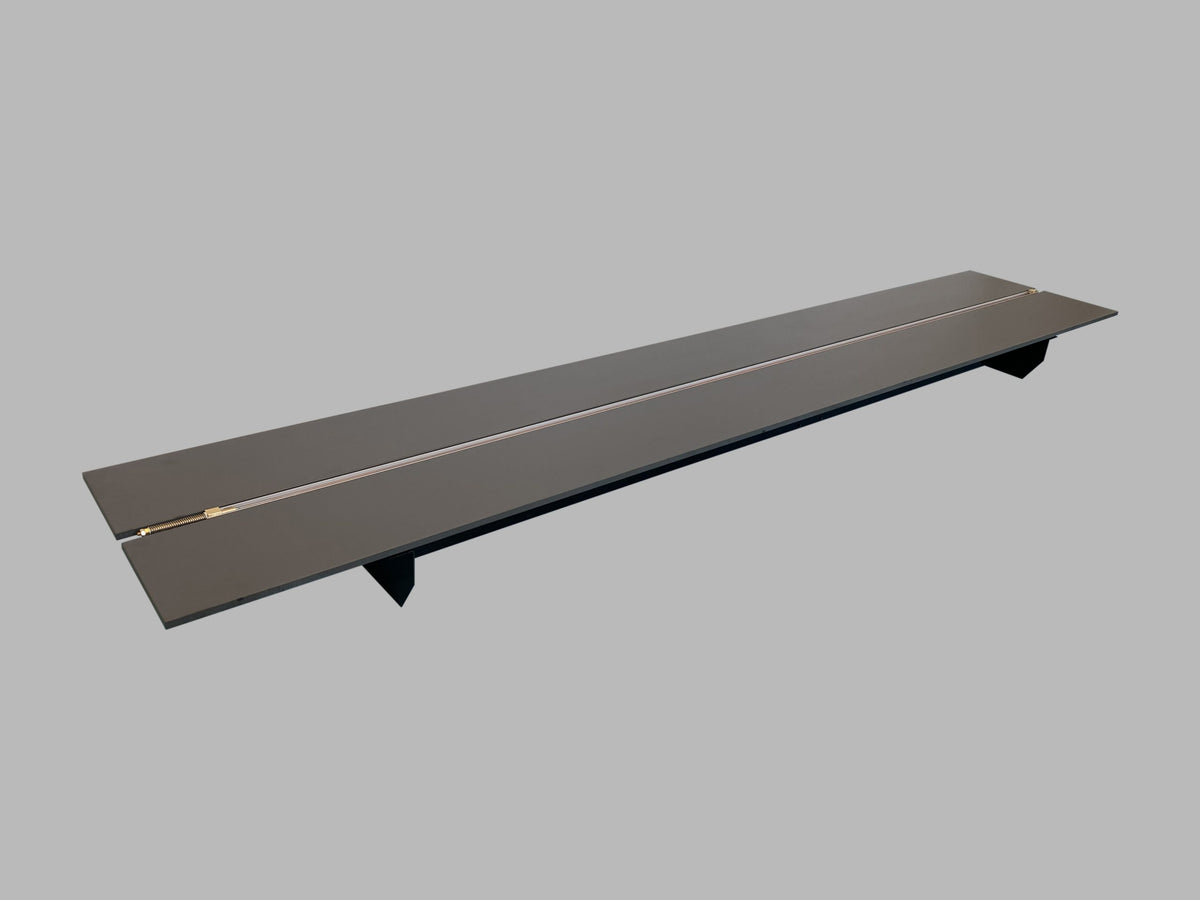

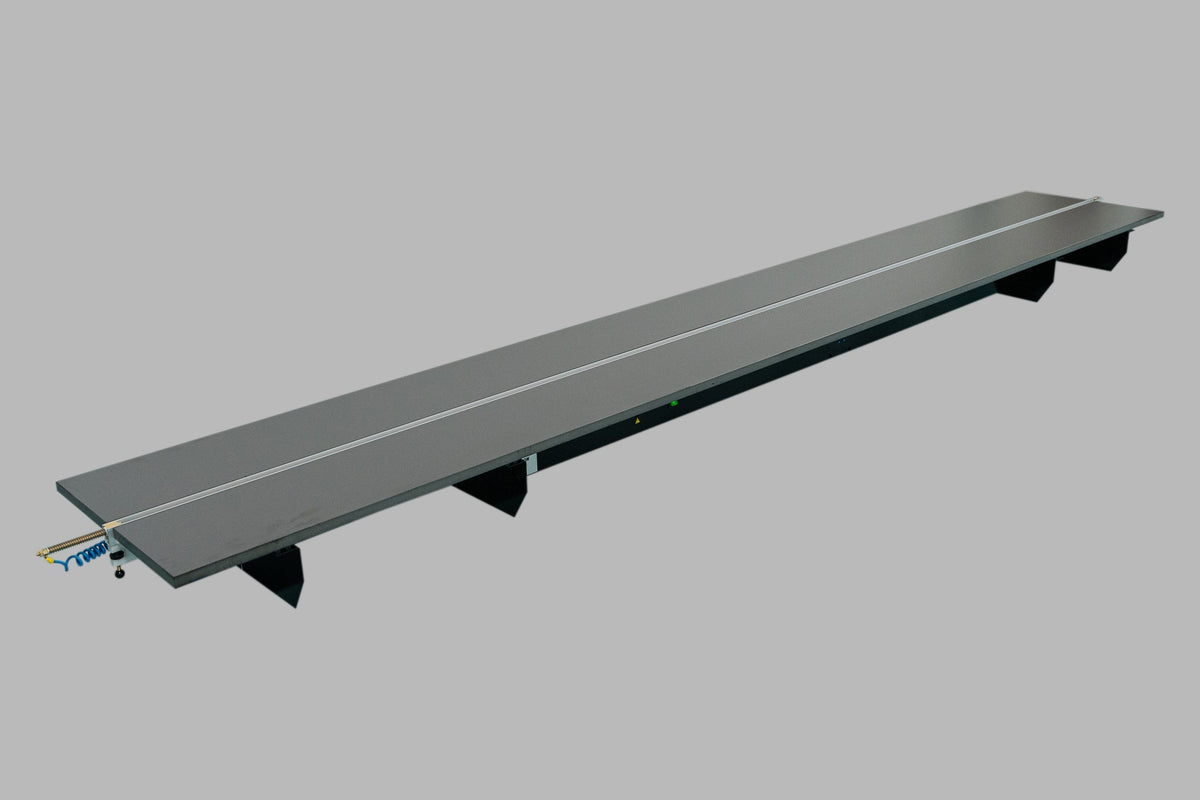

The HR machines are available in 500, 1250, 2200, and 3000 mm. working lengths.

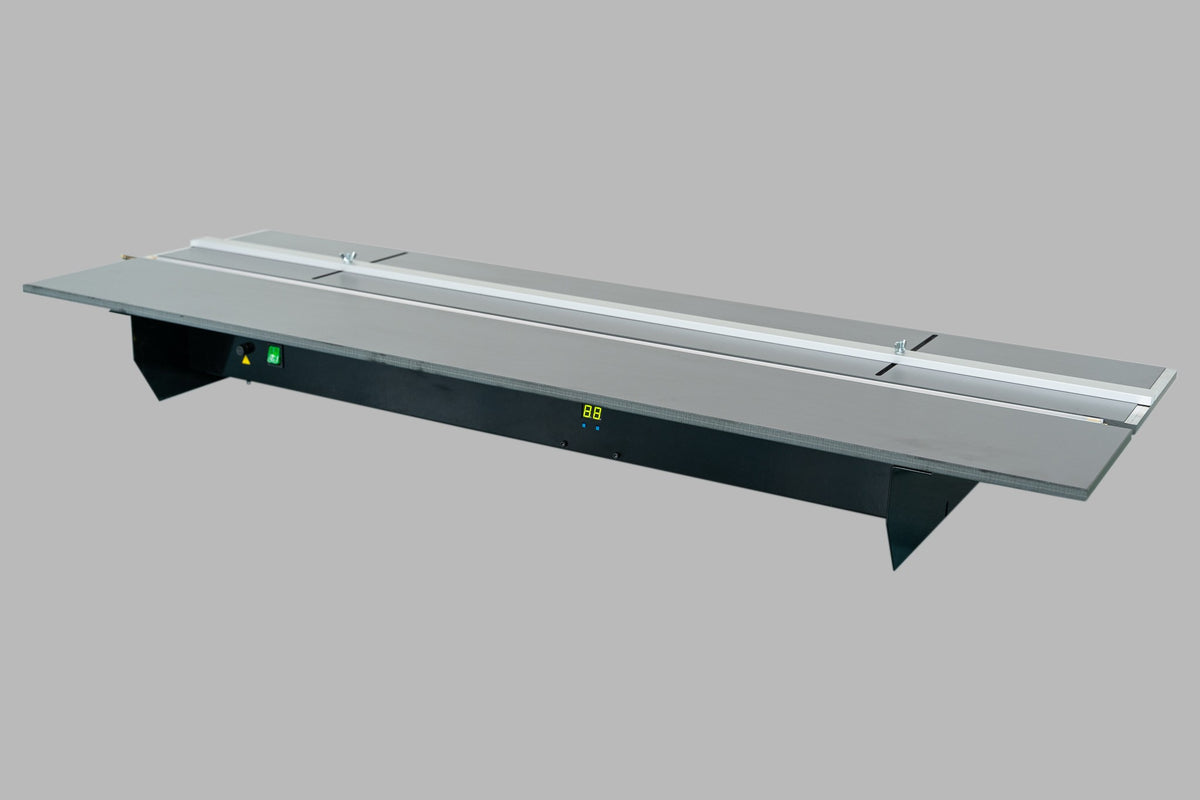

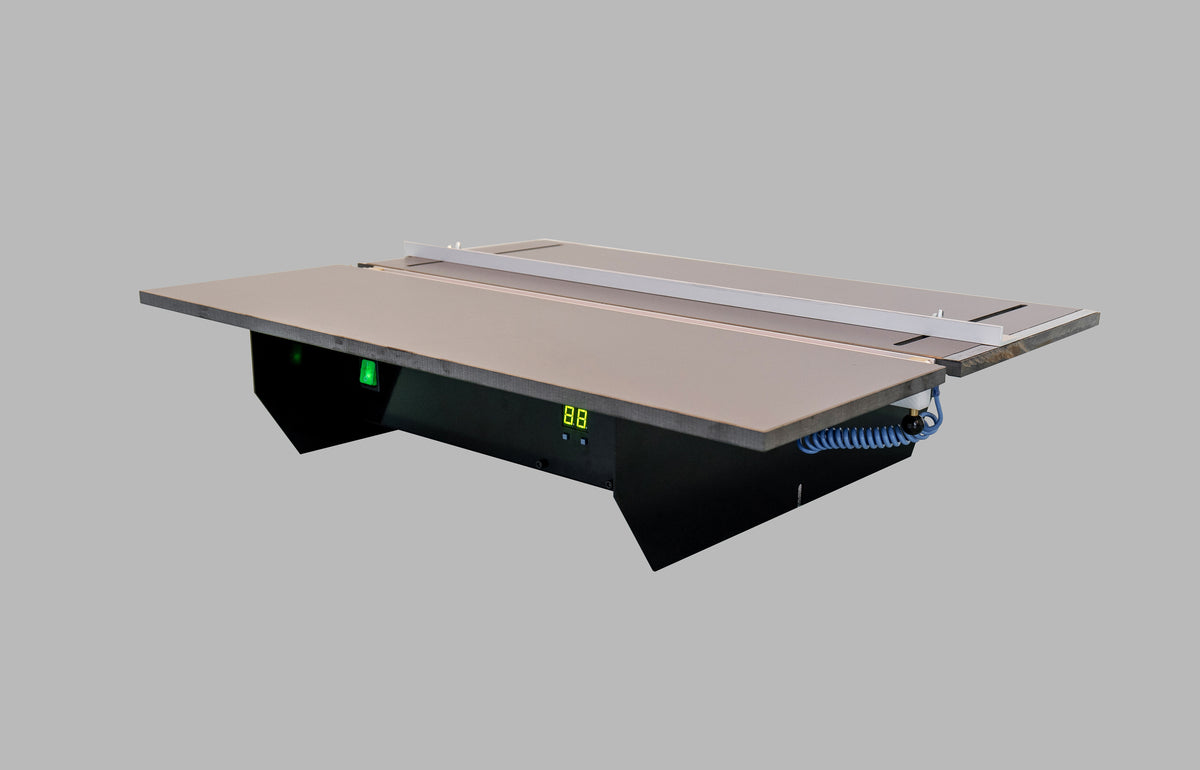

They can be constructed with ruler indicated parallel back-stop or side-stop.
- 3 year warranty
- CE Certified
- Made in Holland
Product information
| Type | HR Series |
|---|---|
| Model type | Table model |
| Bending method | Manual |
| Bending lines | Single |
| Heating method | Single sided |
| Under heating | 1 line |
| Construction | HR50 and HR125 with parallel back-stop HR220 and HR300 with side-stop |
| Working length | 50cm, 125cm, 220cm or 3000 cm. |
| Working thickness | HR50 and HR125 1 - 6 mm HR220 and HR300 1 - 8 mm. |
| Connection voltage | 230 Volts |
| Electrical usage |

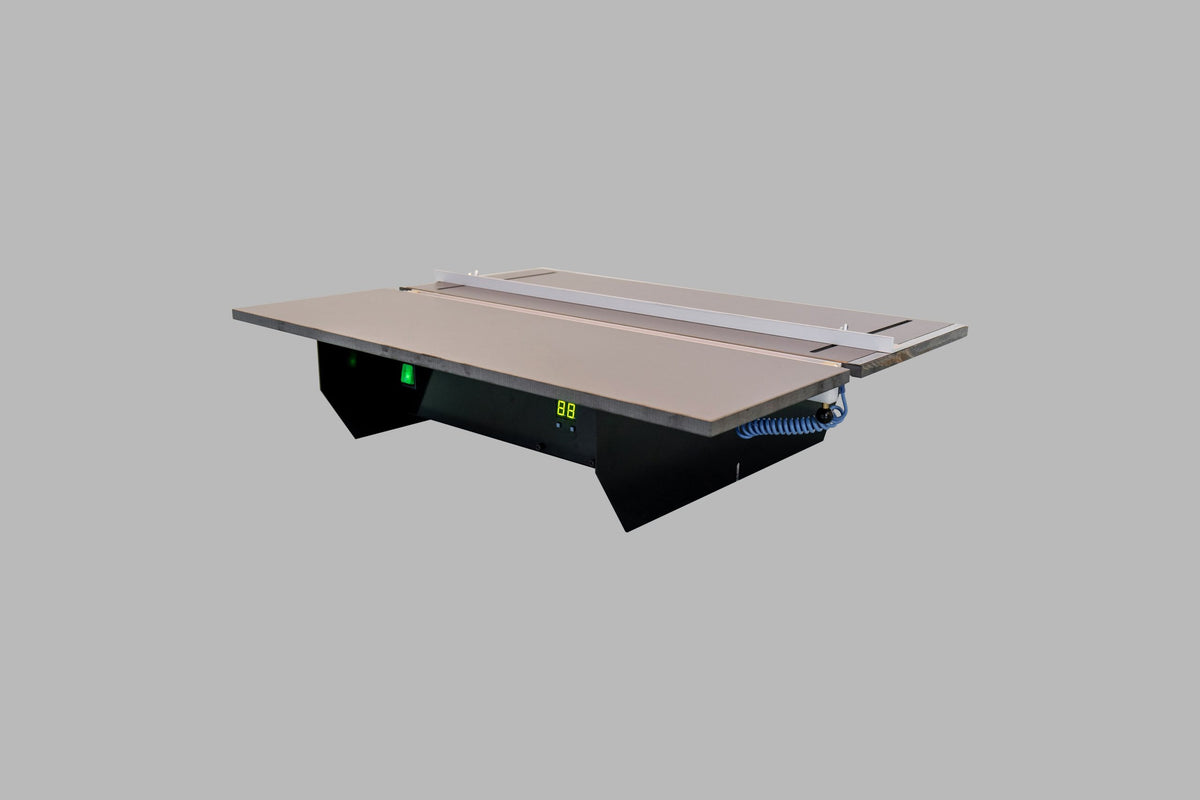

HR50 - 225 Watts |
| Dimensions (LxWxH) |
HR50 - 640x560x105 mm |
| Weight |
HR50 18 kg |
