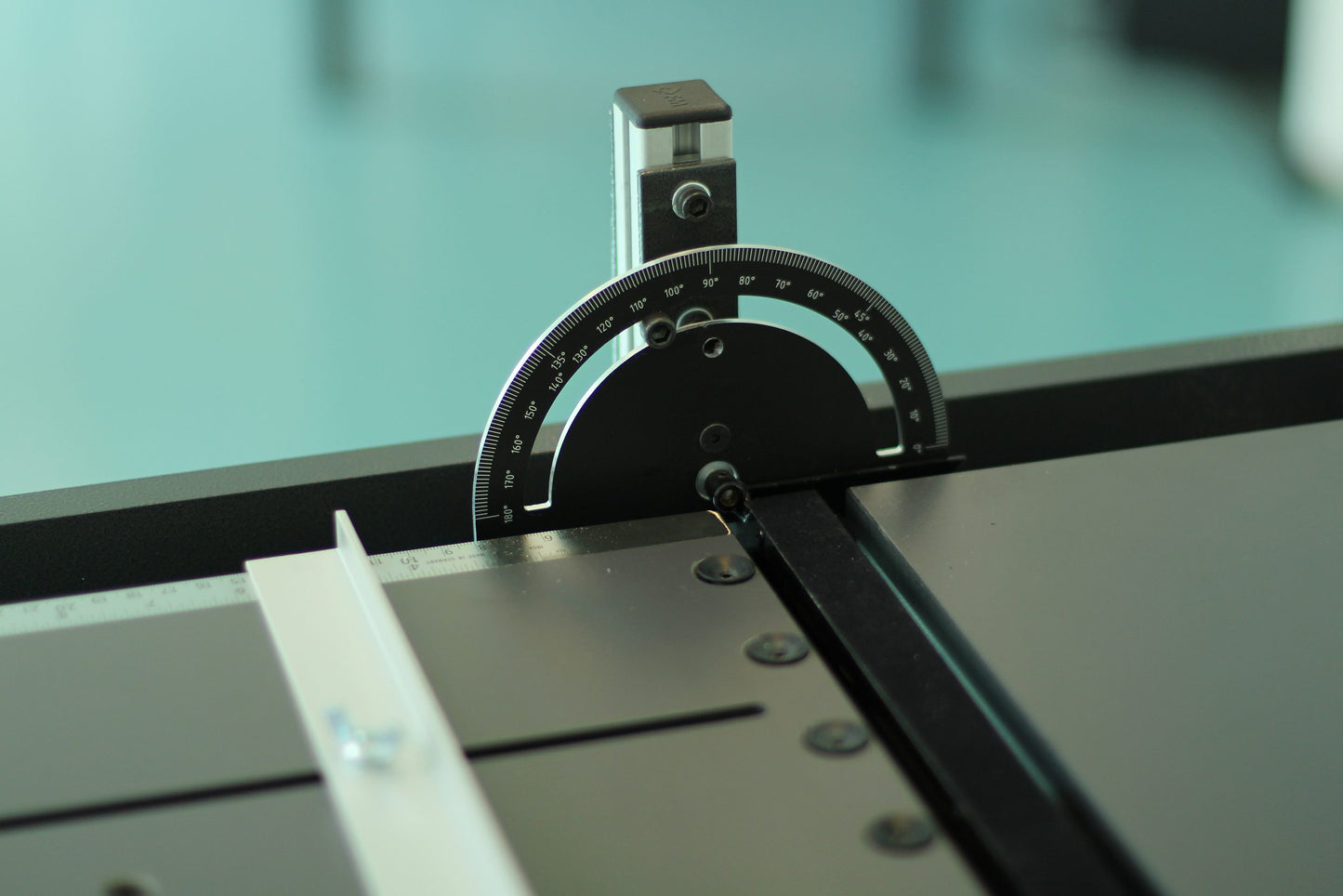

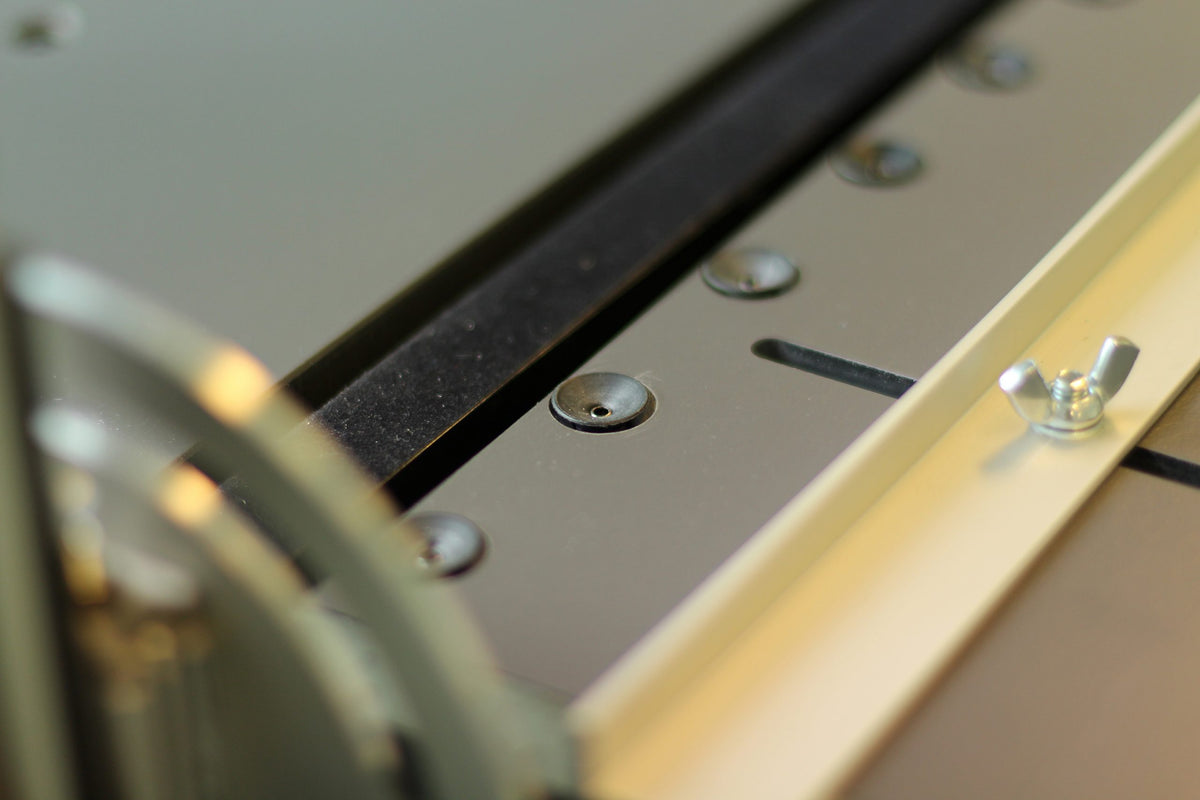

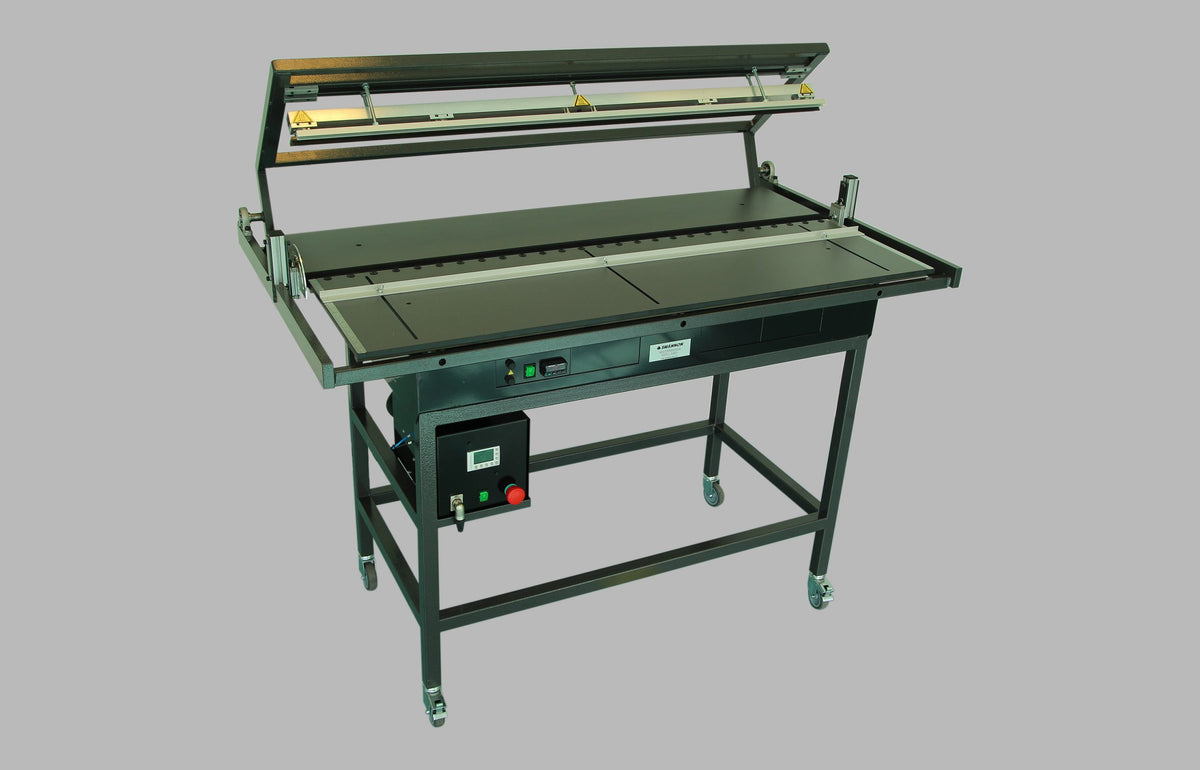

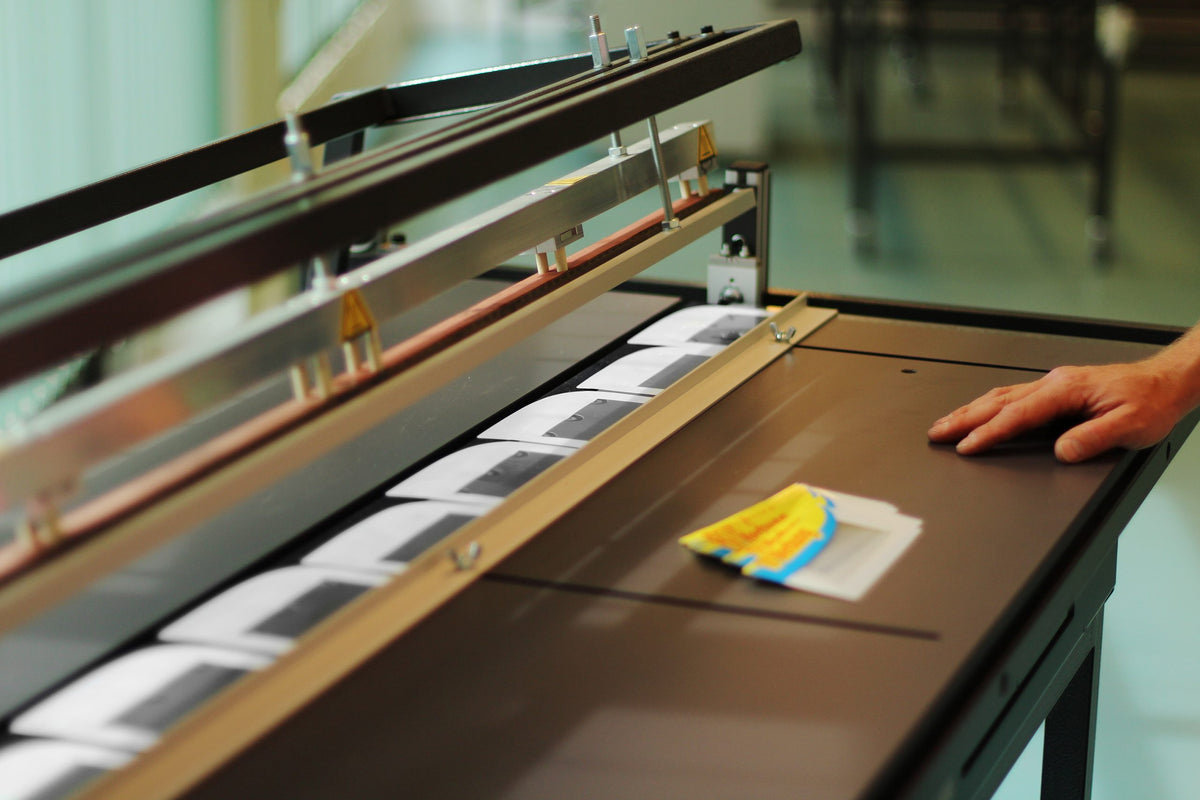

The Shannon AFF is a highly productive automatic bending machine for handling thin plastic sheets. Multiple sheets can be bent in one go, or one sheet up to a length of 135 cm can be bent in one go. The AFF series is equipped with a heating contact sword, the temperature and contact time of this Teflon coated sword are very precisely adjustable electronically The contact swords are replaceable with swords of different sizes, depending on the desired radius of the bends. The time controlled upper frame is equipped with an adjustable pressure bar. The machine is also equipped with vacuum system that keeps the sheets in place and flat during heating, bending, and cooling. The bending cycle is started by a foot switch. After which, the sheets are automatically heated, bent, and cooled in the set time. Each bending line has a protractor to set the correct bending angle. The machine comes standard on a mobile underframe with brakes for an ideal working height.
Automatic plastic bending machine for materials of 0,2 to 1,5 mm and a 1350 mm length.
Equipped with 1 adjustable automatic bending line with angle setting by protractor.
Very fast and very easy to operate with a perfect result.
Product information
| Type | AFF 135i |
|---|---|
| Process | Plastic bending |
| Machine type | Bending machine |
| Model type | Floor model |
| Construction | 1 automatic bending line |
| Bending method | Automatic |
| Bending lines | Single line |
| Heating method | Single sided |
| Working length | 1350 mm. |
| Working thickness | 0,2 - 1,5 mm. |
| Upper heating | 1 contact heating line |
| Modular extendable | No |
| Number of clamps | 1 |
| Electrical usage | 600 Watt |
| Connection voltage | 230 Volt |
| Dimensions (LxWxH) | 1540x880x640 mm. |
| Weight | 150 kg. |
