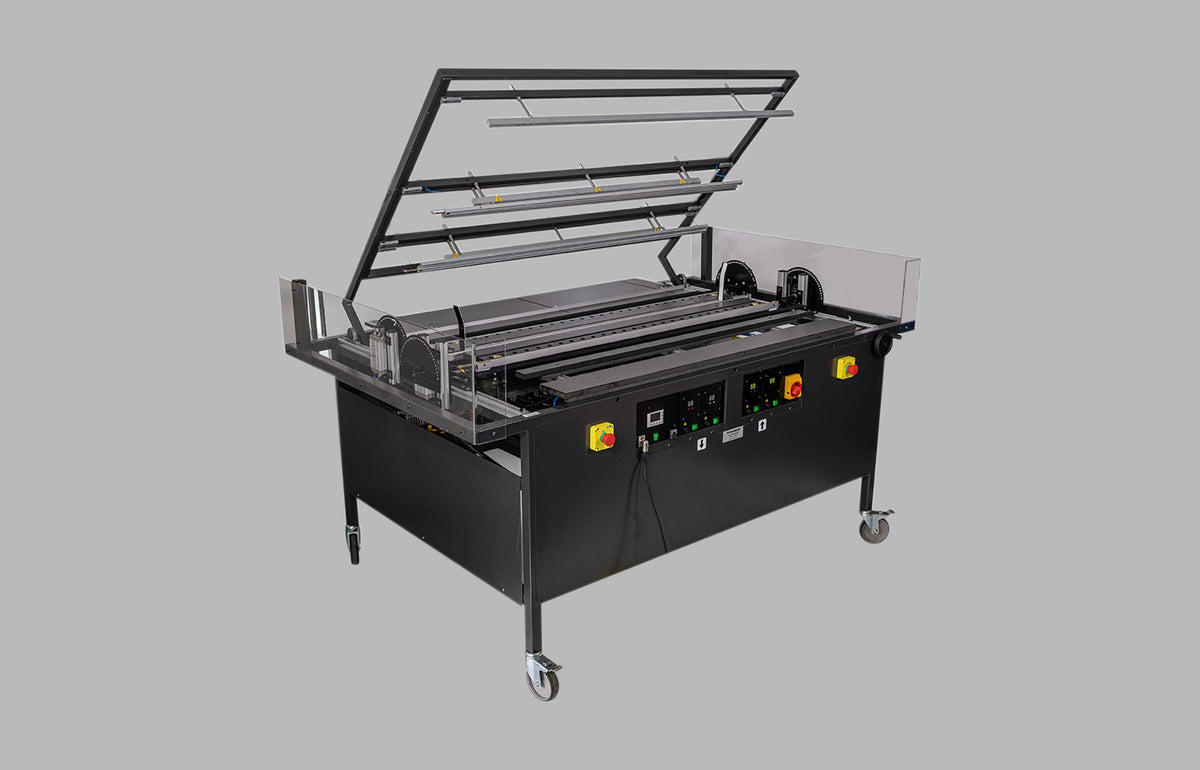

The Shannon ABM-D 135 is a highly productive fully automatic acrylic sheet bending machine for handling plastic sheets up to a thickness of 5 mm.

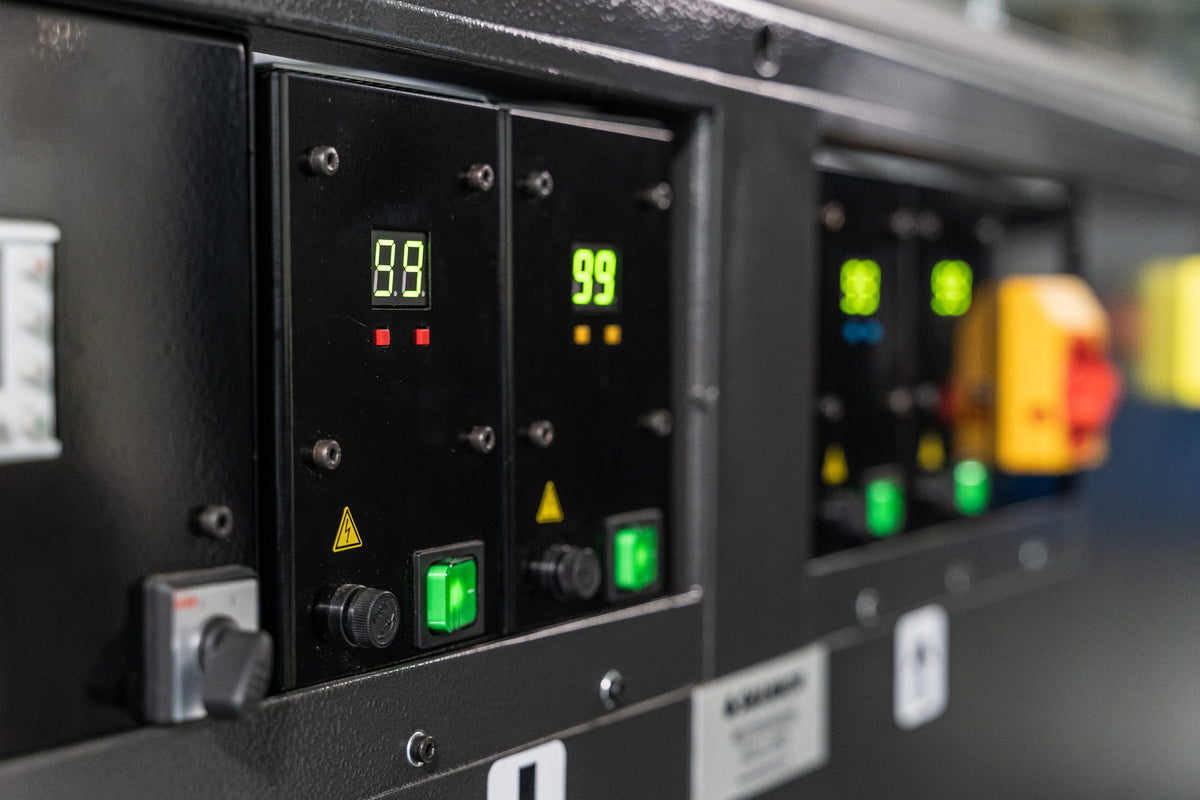

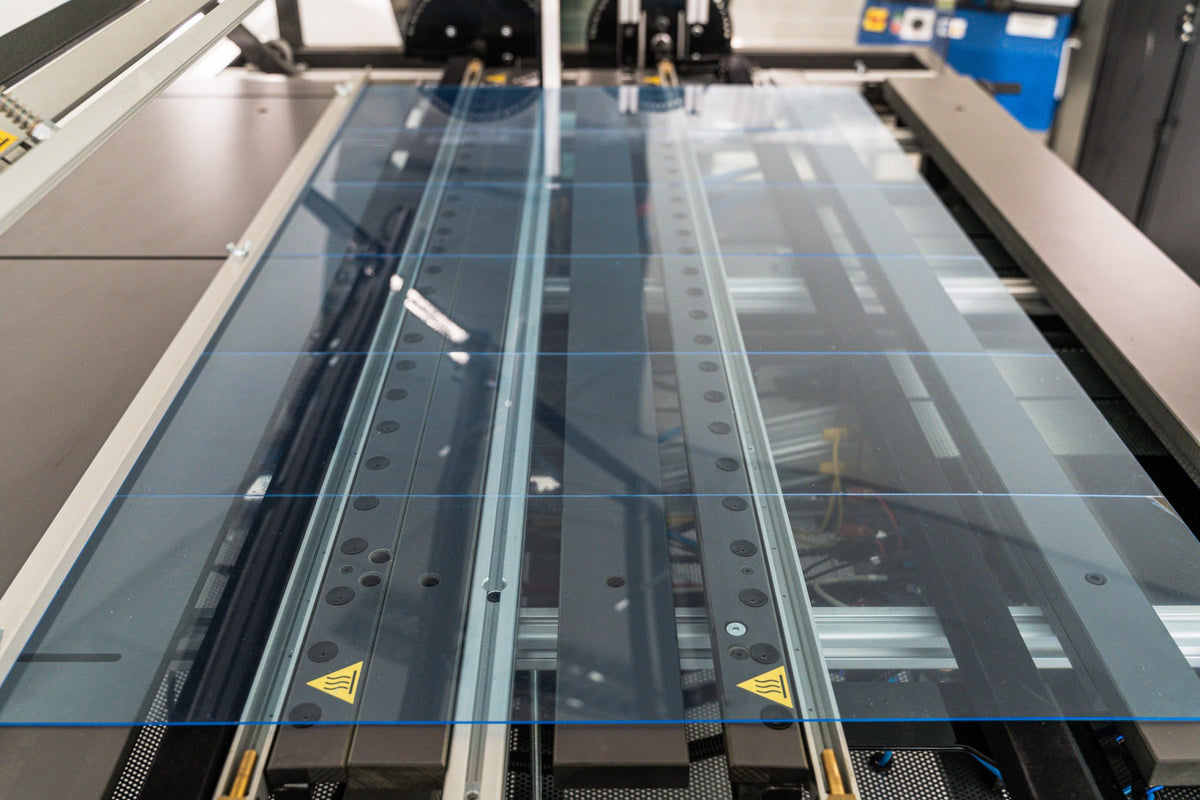

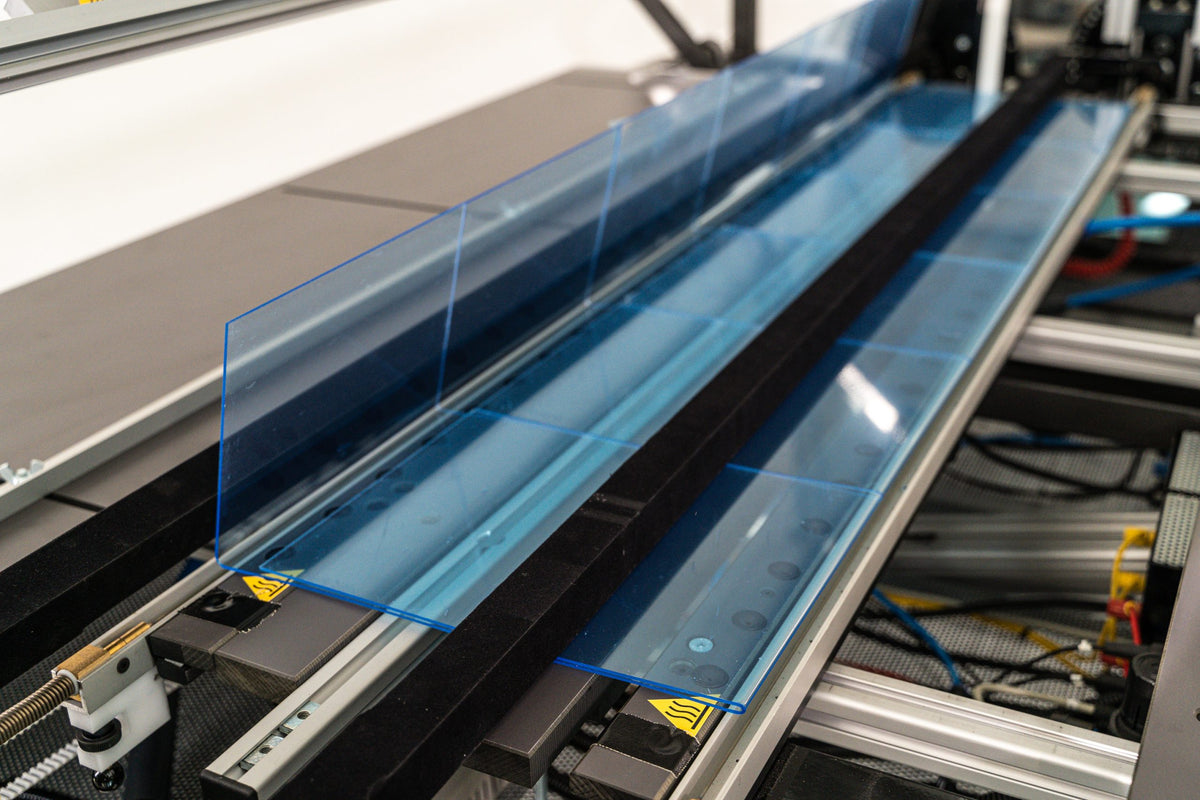

Multiple sheets or a single sheet up to a length of 135 cm can be bent in one go. The machine is equipped with 2 bottom heating profiles and 2 top heating profiles, controlled by 4 temperature control units. This allows 2 upward bends to be made at the same time per cycle. Each bending line has two protractors to set the correct bending angle, vacuum system and pressure bars to keep the material flat and in the correct position. The complete front bending line (heating profile, bending and vacuum system) can be easily moved to adjust the distance between two bending lines. Also, one of the two bending lines can be switched off if only two bend is to be made. The machine features a touch screen with memory function to save products, settings and more.
The machine comes with a mobile underframe with brakes for an ideal working height.
Automatic acrylic sheet bending machine for materials upto 5 mm. on a 1350 mm length.
Equipped with 2 adjustable automatic bending lines with angle setting by protractors.
Very easy to operate and a very consistent result!
- 2 year warranty
- Pay with Bitcoin and get 10% discount
- Made in Holland
- Free packaging on orders >€1.500,- ordered from Webshop
Product information
| Type | ABM-D 135 |
|---|---|
| Process | Plastic bending |
| Machine type | Bending machine |
| Construction | 2 heating lines bottom and 2 top |
| Bending method | Automatic |
| Bending lines | Multiple lines |
| Heating method | Double sided |
| Working length | 1350 mm. |
| Working thickness | 0,5 - 5,0 mm. |
| Under heating | 2 |
| Upper heating | 2 |
| Modular extendable | No |
| Distance between 2 bends | 140 - 620 mm. |
| Number of clamps | 2 |
| Electrical usage | 2600 Watt |
| Connection voltage | 230 Volt |
| Dimensions (LxWxH) | 2090x1320x1900 mm. |
| Weight | 350 kg. |
