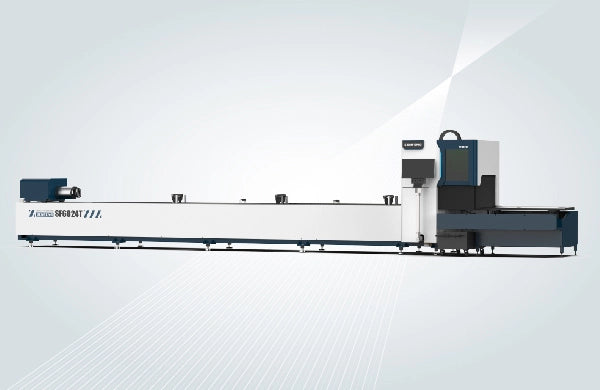

SENFENG T Series Tube Laser Cutter SF6024T — 1.5-6kW

SKU: SENFENG-T-SF6024T
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD

Cost-effective entry-level two-chuck cutter for small batch production.

Part of SENFENG's T series — 1.5kW-6kW Tube Laser Cutter — T Series (Two Chucks), built for Small-to-medium tube cutting for rail transit, automotive, construction, and agricultural machinery.

The SF6024T handles tube size Φ20-230mm / □20*20-230*230mm at 1.5-6kW with 2 chucks.

  • Two-chuck design cuts tube with ultra-short tailing at fast speed
  • No overburning or adhering slag on small-diameter tube
  • Optional Follow-up Support or Vari-pitch Support for tube stability
  • High-precision dust-proof aluminium two-chuck construction
  • Profiles Centering and Single-faced Centering for accurate setup
  • Fast shipment and delivery for entry-level small batch production
Laser Power 1.5-6 kW
Max. Length of Tube 2000-6500 mm
Tube Size Φ20-230mm / □20*20-230*230mm
Max. Weight of Tube 260 kg
X/Y-axis Positioning Accuracy ±0.05 mm
X/Y-axis Repositioning Accuracy ±0.03 mm
Max. No-load Speed 100 m/min
Max. Chuck Rotating Speed 100 r/min
Overall Dimensions (L*W*H) 9530*1950*2200 mm
Power Supply Three-phase 380V, 50Hz/60Hz
Chucks 2

Frequently Asked Questions

What can the T Series SF6024T cut?
The SF6024T handles tube sizes Φ20-230mm / □20*20-230*230mm at 1.5-6kW, up to 2000-6500mm long. Always confirm your exact tube dimensions, material, and weight requirements with our team before ordering.

Have more questions about SENFENG tube laser cutters? See our SENFENG Tube Laser Cutters FAQ.

Cost-effective entry-level two-chuck cutter for small batch production.

Part of SENFENG's T series — 1.5kW-6kW Tube Laser Cutter — T Series (Two Chucks), built for Small-to-medium tube cutting for rail transit, automotive, construction, and agricultural machinery.

The SF6024T handles tube size Φ20-230mm / □20*20-230*230mm at 1.5-6kW with 2 chucks.

  • Two-chuck design cuts tube with ultra-short tailing at fast speed
  • No overburning or adhering slag on small-diameter tube
  • Optional Follow-up Support or Vari-pitch Support for tube stability
  • High-precision dust-proof aluminium two-chuck construction
  • Profiles Centering and Single-faced Centering for accurate setup
  • Fast shipment and delivery for entry-level small batch production
Laser Power 1.5-6 kW
Max. Length of Tube 2000-6500 mm
Tube Size Φ20-230mm / □20*20-230*230mm
Max. Weight of Tube 260 kg
X/Y-axis Positioning Accuracy ±0.05 mm
X/Y-axis Repositioning Accuracy ±0.03 mm
Max. No-load Speed 100 m/min
Max. Chuck Rotating Speed 100 r/min
Overall Dimensions (L*W*H) 9530*1950*2200 mm
Power Supply Three-phase 380V, 50Hz/60Hz
Chucks 2

Frequently Asked Questions

What can the T Series SF6024T cut?
The SF6024T handles tube sizes Φ20-230mm / □20*20-230*230mm at 1.5-6kW, up to 2000-6500mm long. Always confirm your exact tube dimensions, material, and weight requirements with our team before ordering.

Have more questions about SENFENG tube laser cutters? See our SENFENG Tube Laser Cutters FAQ.
