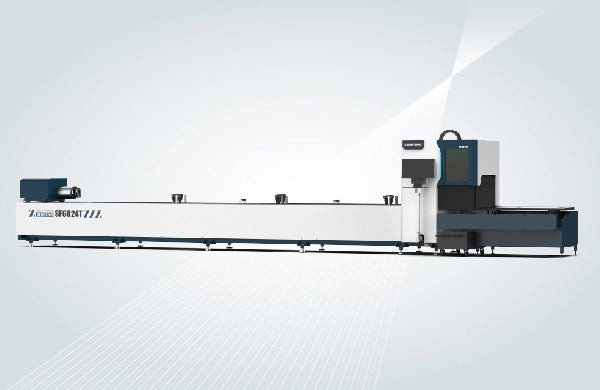

SENFENG T Series Tube Laser Cutter SF6012T
SENFENG T Series Tube Laser Cutter SF6012T
SENFENG T Series Tube Laser Cutter SF6012T

SENFENG T Series Tube Laser Cutter SF6012T — 1.5-3kW

Contact us for pricing

Request a written quotation including delivery to your address.

Thanks for contacting us. We'll get back to you as soon as possible.

Enter your delivery details so we can quote the equipment and freight together. Fields marked * are required.

SENFENG T Series Tube Laser Cutter SF6012T
Contact and delivery details

Cost-effective entry-level two-chuck cutter for small batch production.

Part of SENFENG's T series — 1.5kW-6kW Tube Laser Cutter — T Series (Two Chucks), built for Small-to-medium tube cutting for rail transit, automotive, construction, and agricultural machinery.

The SF6012T handles tube size Φ15-120mm / □15*15-120*120mm at 1.5-3kW with 2 chucks.

  • Two-chuck design cuts tube with ultra-short tailing at fast speed
  • No overburning or adhering slag on small-diameter tube
  • Optional Follow-up Support or Vari-pitch Support for tube stability
  • High-precision dust-proof aluminium two-chuck construction
  • Profiles Centering and Single-faced Centering for accurate setup
  • Fast shipment and delivery for entry-level small batch production
Laser Power 1.5-3 kW
Max. Length of Tube 1000-6500 mm
Tube Size Φ15-120mm / □15*15-120*120mm
Max. Weight of Tube 120 kg
X/Y-axis Positioning Accuracy ±0.05 mm
X/Y-axis Repositioning Accuracy ±0.03 mm
Max. No-load Speed 150 m/min
Max. Chuck Rotating Speed 180 r/min
Overall Dimensions (L*W*H) 9100*1800*2100 mm
Power Supply Three-phase 380V, 50Hz/60Hz
Chucks 2

Frequently Asked Questions

What can the T Series SF6012T cut?
The SF6012T handles tube sizes Φ15-120mm / □15*15-120*120mm at 1.5-3kW, up to 1000-6500mm long. Always confirm your exact tube dimensions, material, and weight requirements with our team before ordering.

Have more questions about SENFENG tube laser cutters? See our SENFENG Tube Laser Cutters FAQ.
