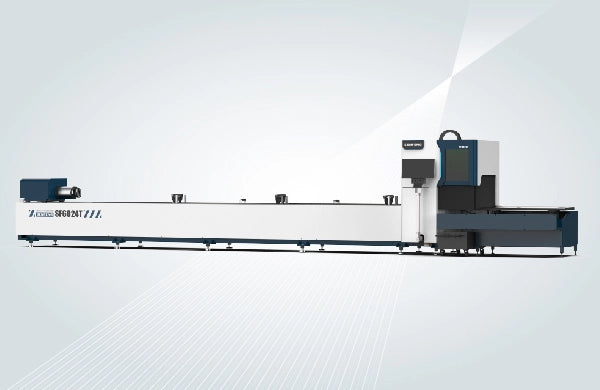

SENFENG T Series Tube Laser Cutter SF12035T — 1.5-6kW

Contact us for pricing

Request a written quotation including delivery to your address.

Thanks for contacting us. We'll get back to you as soon as possible.

Enter your delivery details so we can quote the equipment and freight together. Fields marked * are required.

SENFENG T Series Tube Laser Cutter SF12035T
Contact and delivery details

Cost-effective entry-level two-chuck cutter for small batch production.

Part of SENFENG's T series — 1.5kW-6kW Tube Laser Cutter — T Series (Two Chucks), built for Small-to-medium tube cutting for rail transit, automotive, construction, and agricultural machinery.

The SF12035T handles tube size Φ50-350mm / □50*50-350*350mm at 1.5-6kW with 2 chucks.

  • Two-chuck design cuts tube with ultra-short tailing at fast speed
  • No overburning or adhering slag on small-diameter tube
  • Optional Follow-up Support or Vari-pitch Support for tube stability
  • High-precision dust-proof aluminium two-chuck construction
  • Profiles Centering and Single-faced Centering for accurate setup
  • Fast shipment and delivery for entry-level small batch production
Laser Power 1.5-6 kW
Max. Length of Tube 2000-12000 mm
Tube Size Φ50-350mm / □50*50-350*350mm
Max. Weight of Tube 500 kg
X/Y-axis Positioning Accuracy ±0.05 mm
X/Y-axis Repositioning Accuracy ±0.03 mm
Max. No-load Speed 60 m/min
Max. Chuck Rotating Speed 60 r/min
Overall Dimensions (L*W*H) 15330*2050*2550 mm
Power Supply Three-phase 380V, 50Hz/60Hz
Chucks 2

Frequently Asked Questions

What can the T Series SF12035T cut?
The SF12035T handles tube sizes Φ50-350mm / □50*50-350*350mm at 1.5-6kW, up to 2000-12000mm long. Always confirm your exact tube dimensions, material, and weight requirements with our team before ordering.

Have more questions about SENFENG tube laser cutters? See our SENFENG Tube Laser Cutters FAQ.
