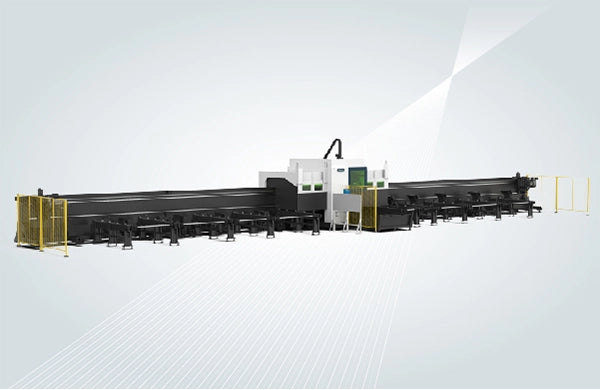

SENFENG ST Series Tube Laser Cutter SF9050ST
SENFENG's hi-end heavy-duty cutter for long, large-diameter tube.
Part of SENFENG's ST series — 6kW-20kW Heavy-Duty Tube Laser Cutter — ST Series (Three Chucks), built for Heavy and long tube cutting for construction machinery, engineering machinery, and shipbuilding.
The SF9050ST handles tube size Φ50-500mm / □50*50-500*500mm at 6-20kW with 3 chucks.
- Side-mounted bed design purpose-built for large, heavy tube cutting
- High-precision three-chuck system for large-scale, high-precision production
- Optional ±45° bevel cutting for weld-ready edges
- Automatic loading and unloading device reduces manual handling of heavy tube
- Full process-technology software suite: Zero Tailing Cutting, Nesting, Special Edge-Sharing, Fast Import, Automatic Sorting, Profiles Processing
- Optional Weld Seam Inspection and Visual Scanning for stable, accurate cuts
| Laser Power | 6-20 kW |
| Max. Length of Tube | 6000-9000 mm |
| Tube Size | Φ50-500mm / □50*50-500*500mm |
| Max. Weight of Tube | 2000 kg |
| X/Y-axis Positioning Accuracy | ±0.1/1000 mm |
| X/Y-axis Repositioning Accuracy | ±0.1 mm |
| Max. No-load Speed | 40 m/min |
| Max. Chuck Rotating Speed | 40 r/min |
| Overall Dimensions (L*W*H) | 19000*7200*4200 mm |
| Power Supply | Three-phase 380V, 50Hz/60Hz (custom-made) |
| Chucks | 3 |
Frequently Asked Questions
What can the ST Series SF9050ST cut?
The SF9050ST handles tube sizes Φ50-500mm / □50*50-500*500mm at 6-20kW, up to 6000-9000mm long. Always confirm your exact tube dimensions, material, and weight requirements with our team before ordering.
Have more questions about SENFENG tube laser cutters? See our SENFENG Tube Laser Cutters FAQ.
