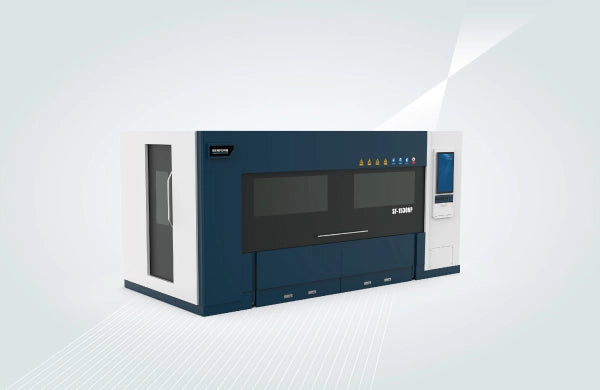

SENFENG SF1530NP Series Fiber Laser Cutter SF1530NP
Compact, fully enclosed cutter with an integrated laser source and control cabinet.
Part of SENFENG's SF1530NP series — Fully Enclosed Compact Laser Sheet Cutter — SF1530NP, built for Small workshops wanting Euro-American safety compliance in a single-platform, space-saving machine.
The SF1530NP has a 3030*1510mm working area at 1.5-6kW.
- Compact fully-enclosed structure with an integrated laser source and control cabinet in one unit
- Electric lifting door opens/closes automatically for faster cycles and better sealing/fume extraction
- Anti-burning platform structures on both sides protect the dust cover from sparks
- Intelligent smoke-free dust extraction with a double air duct system across 3 spanning zones
- Euro-American safety certifications: light curtains, smart cameras, and a safety lock alarm for instant stop on intrusion
- Fits into a single shipping container with no teardown, for low shipping costs
| Laser Power | 1.5-6 kW |
| Working Area (L*W) | 3030*1510 mm |
| X/Y-axis Positioning Accuracy | ±0.05 mm |
| X/Y-axis Repositioning Accuracy | ±0.02 mm |
| Max. No-load Speed | 100 m/min |
| Max. Acceleration | 1 G |
| Max. Load of Platform | 1100 kg |
| Overall Dimensions (L*W*H) | 4921*2225*2317 mm |
| Power Supply | Three-phase 380V, 50/60Hz (custom-made) |
Frequently Asked Questions
What can the SF1530NP Series SF1530NP cut?
The SF1530NP has a 3030*1510mm working area and runs at 1.5-6kW. Always confirm your exact material, thickness, and platform load requirements with our team before ordering.
Have more questions about SENFENG metal sheet cutters? See our SENFENG Metal Sheet Cutters FAQ.
