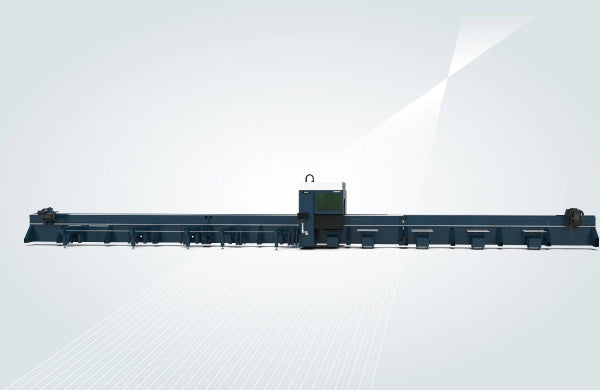

SENFENG S3 Series Tube Laser Cutter 6024S3
Cost-effective heavy-duty tube cutting with a new free-movement three-chuck system.
Part of SENFENG's S3 series — 6kW-20kW Affordable Heavy-Duty Tube Laser Cutter — S3 Series (Three Chucks), built for Medium-to-large tube, I & channel steel, and angle steel cutting at a lower entry cost than the ST Series.
The 6024S3 handles tube size Φ20-240mm / □20*20-240*240mm at 6-12kW with 3 chucks.
- L-shaped side-attached heavy-duty bed common to heavy-duty machines
- New free-movement three-chuck system for a wider clamping range and 0 tailing via square inner holes
- Straight/±45° bevel cutting available
- Cuts round, square, rectangular, oval tubes plus I & channel steel and equal/unequal angle steel
- Automatic loading/unloading system reduces labor force
- Ten standard bed sizes span 6000-12000mm tube length
| Laser Power | 6-12 kW |
| Max. Length of Tube | 6500 mm |
| Tube Size | Φ20-240mm / □20*20-240*240mm |
| Max. Load of Chucks | 300 kg |
| X/Y-axis Positioning Accuracy | ±0.1/1000 mm |
| X/Y-axis Repositioning Accuracy | ±0.1 mm |
| Max. No-load Speed | 60 m/min |
| Max. Chuck Rotating Speed | 60 r/min |
| Overall Dimensions (L*W*H) | 15500*3500*4500 mm |
| Power Supply | Three-phase 380V, 50Hz/60Hz (custom-made) |
| Chucks | 3 |
Frequently Asked Questions
What can the S3 Series 6024S3 cut?
The 6024S3 handles tube sizes Φ20-240mm / □20*20-240*240mm at 6-12kW. Always confirm your exact tube dimensions, material, and weight requirements with our team before ordering.
Have more questions about SENFENG tube laser cutters? See our SENFENG Tube Laser Cutters FAQ.
