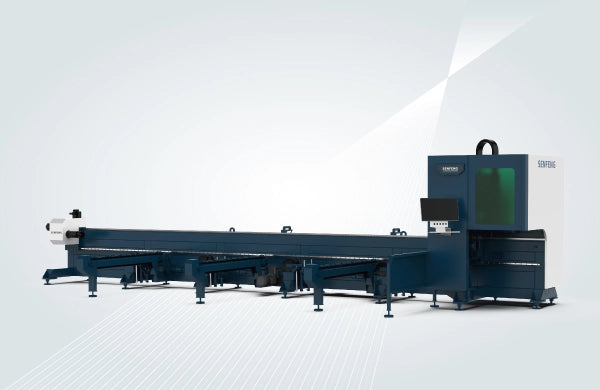

SENFENG S2 Series Tube Laser Cutter 6012S2
SENFENG S2 Series Tube Laser Cutter 6012S2
SENFENG S2 Series Tube Laser Cutter 6012S2

SENFENG S2 Series Tube Laser Cutter 6012S2 — 3-6kW

Contact us for pricing

Request a written quotation including delivery to your address.

Thanks for contacting us. We'll get back to you as soon as possible.

Enter your delivery details so we can quote the equipment and freight together. Fields marked * are required.

SENFENG S2 Series Tube Laser Cutter 6012S2
Contact and delivery details

Side-mounted-bed cutter tuned for material-efficient small-and-medium tube processing.

Part of SENFENG's S2 series — 1.5kW-6kW Tube Laser Cutter for Small and Medium Tubes — S2 Series, built for Small and medium tube processing balancing cutting precision, efficiency, and material waste.

The 6012S2 handles tube size Φ15-120mm / □15-120mm at 3-6kW with 2 chucks.

  • Side-mounted bed design feeds tube directly under the chuck for higher loading efficiency
  • High-precision chuck for stable, accurate cutting
  • Rear chuck air-blowing extends service life
  • Ultra-short tailing design (~50-80mm) minimizes material waste
  • Optional Vari-pitch or Follow-up Support reduces tube sagging
  • Automatic loading device lowers labor cost; integrated temperature-controlled cabinet
Laser Power 3-6 kW
Max. Length of Tube 6500 mm
Tube Size Φ15-120mm / □15-120mm
Max. Load of Chucks 120 kg
X/Y-axis Positioning Accuracy ±0.05 mm
X/Y-axis Repositioning Accuracy ±0.03 mm
Max. No-load Speed 100 m/min
Max. Chuck Rotating Speed 200 r/min
Max. Acceleration 1.5 G
Power Supply Three-phase/380V/50Hz
Chucks 2

Frequently Asked Questions

What can the S2 Series 6012S2 cut?
The 6012S2 handles tube sizes Φ15-120mm / □15-120mm at 3-6kW. Always confirm your exact tube dimensions, material, and weight requirements with our team before ordering.

Have more questions about SENFENG tube laser cutters? See our SENFENG Tube Laser Cutters FAQ.
