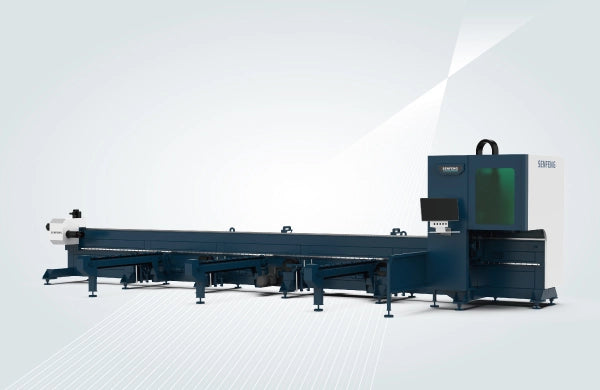

SENFENG S2 Series Tube Laser Cutter 12028S2
SENFENG S2 Series Tube Laser Cutter 12028S2
SENFENG S2 Series Tube Laser Cutter 12028S2

SENFENG S2 Series Tube Laser Cutter 12028S2 — 3-6kW

Contact us for pricing

Request a written quotation including delivery to your address.

Thanks for contacting us. We'll get back to you as soon as possible.

Enter your delivery details so we can quote the equipment and freight together. Fields marked * are required.

SENFENG S2 Series Tube Laser Cutter 12028S2
Contact and delivery details

Side-mounted-bed cutter tuned for material-efficient small-and-medium tube processing.

Part of SENFENG's S2 series — 1.5kW-6kW Tube Laser Cutter for Small and Medium Tubes — S2 Series, built for Small and medium tube processing balancing cutting precision, efficiency, and material waste.

The 12028S2 handles tube size Φ20-280mm / □20-280mm at 3-6kW with 2 chucks.

  • Side-mounted bed design feeds tube directly under the chuck for higher loading efficiency
  • High-precision chuck for stable, accurate cutting
  • Rear chuck air-blowing extends service life
  • Ultra-short tailing design (~50-80mm) minimizes material waste
  • Optional Vari-pitch or Follow-up Support reduces tube sagging
  • Automatic loading device lowers labor cost; integrated temperature-controlled cabinet
Laser Power 3-6 kW
Max. Length of Tube 12000 mm
Tube Size Φ20-280mm / □20-280mm
Max. Load of Chucks 400 kg
X/Y-axis Positioning Accuracy ±0.05 mm
X/Y-axis Repositioning Accuracy ±0.03 mm
Max. No-load Speed 100 m/min
Max. Chuck Rotating Speed 90 r/min
Max. Acceleration 0.7 G
Power Supply Three-phase/380V/50Hz
Chucks 2

Frequently Asked Questions

What can the S2 Series 12028S2 cut?
The 12028S2 handles tube sizes Φ20-280mm / □20-280mm at 3-6kW. Always confirm your exact tube dimensions, material, and weight requirements with our team before ordering.

Have more questions about SENFENG tube laser cutters? See our SENFENG Tube Laser Cutters FAQ.
