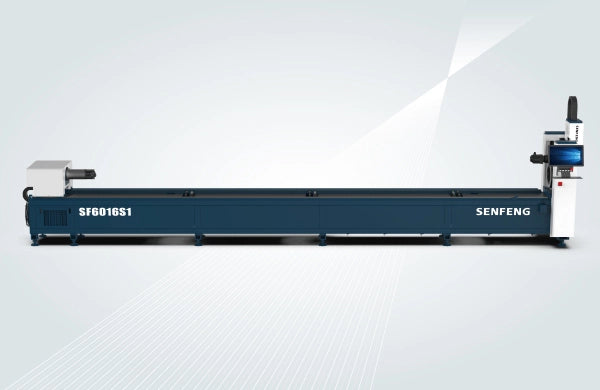

SENFENG S1 Series Tube Laser Cutter 6016S1
SENFENG S1 Series Tube Laser Cutter 6016S1
SENFENG S1 Series Tube Laser Cutter 6016S1

SENFENG S1 Series Tube Laser Cutter 6016S1 — 1.5-3kW

Contact us for pricing

Request a written quotation including delivery to your address.

Thanks for contacting us. We'll get back to you as soon as possible.

Enter your delivery details so we can quote the equipment and freight together. Fields marked * are required.

SENFENG S1 Series Tube Laser Cutter 6016S1
Contact and delivery details

High-rigidity horizontal-bed cutter with self-centering dual chucks.

Part of SENFENG's S1 series — 1.5kW-6kW High Cost-Effective Tube Laser Cutter — S1 Series (Two Chucks), built for Small and medium tube processing for diverse industrial batch applications.

The 6016S1 handles tube size Φ15-170mm / □15-170mm at 1.5-3kW with 2 chucks.

  • High-rigidity horizontal bed for stable, efficient processing
  • High-precision dust-proof self-centering two-chuck design
  • Rear chuck automatic air-blowing reduces maintenance costs
  • Short tailing design (~80-120mm) improves material utilization
  • Optional Vari-pitch/Follow-up Support enhances tube handling
  • Integrated design: laser source, chiller, and electrical cabinet built in for simple installation
Laser Power 1.5-3 kW
Max. Length of Tube 6500 mm
Tube Size Φ15-170mm / □15-170mm
Max. Load of Chucks 150 kg
X/Y-axis Positioning Accuracy ±0.05 mm
X/Y-axis Repositioning Accuracy ±0.03 mm
Max. No-load Speed 150 m/min
Max. Chuck Rotating Speed 180 r/min
Max. Acceleration 1.5 G
Power Supply Three-phase/380V/50Hz
Chucks 2

Frequently Asked Questions

What can the S1 Series 6016S1 cut?
The 6016S1 handles tube sizes Φ15-170mm / □15-170mm at 1.5-3kW. Always confirm your exact tube dimensions, material, and weight requirements with our team before ordering.

Have more questions about SENFENG tube laser cutters? See our SENFENG Tube Laser Cutters FAQ.
