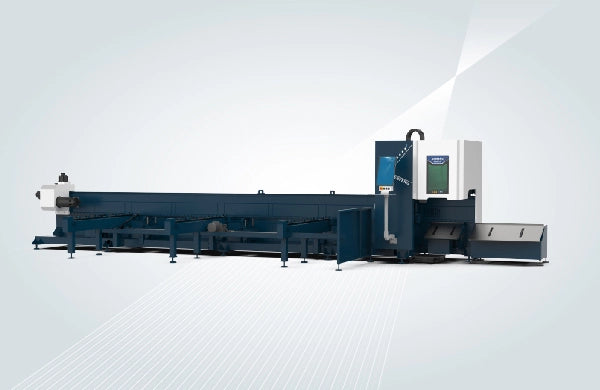

SENFENG PLUS Series Tube Laser Cutter SF7012PLUS
Technically upgraded small-diameter batch cutter built from global user feedback.
Part of SENFENG's PLUS series — 3kW-6kW High-Speed High-Precision Tube Laser Cutter — PLUS Series (Two Chucks), built for Batch processing of small-diameter tube (under 100mm) — round, square, and rectangular.
The SF7012PLUS handles tube size Φ15-120mm / □15*15-120*120mm at 3-6kW with 2 chucks.
- Side-mounted welded bed improves stability, load-bearing, and vibration damping
- Follow-up support system prevents sagging during rotation and vertical movement
- High-precision two-chuck with full-stroke chuck and servo control for stable clamping
- High-efficiency automatic loading device boosts productivity and reduces manual operation
- Zero Tail Material Design and Flycut for high-speed, continuous cutting
- 2G acceleration for fast, high-precision small-tube processing
| Laser Power | 3-6 kW |
| Max. Length of Tube | 1000-7000 mm |
| Tube Size | Φ15-120mm / □15*15-120*120mm |
| Max. Weight of Tube | 120 kg |
| X/Y-axis Positioning Accuracy | ±0.05 mm |
| X/Y-axis Repositioning Accuracy | ±0.03 mm |
| Max. No-load Speed | 120 m/min |
| Max. Chuck Rotating Speed | 180 r/min |
| Overall Dimensions (L*W*H) | 9600*2230*2300 mm |
| Power Supply | Three-phase 380V, 50Hz/60Hz (custom-made) |
| Chucks | 2 |
Frequently Asked Questions
What can the PLUS Series SF7012PLUS cut?
The SF7012PLUS handles tube sizes Φ15-120mm / □15*15-120*120mm at 3-6kW, up to 1000-7000mm long. Always confirm your exact tube dimensions, material, and weight requirements with our team before ordering.
Have more questions about SENFENG tube laser cutters? See our SENFENG Tube Laser Cutters FAQ.
