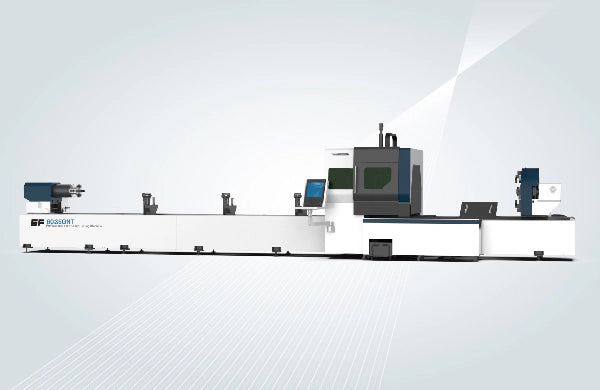

SENFENG NT Series Tube Laser Cutter SF12035NT
All-purpose three-chuck cutter for long and large-diameter tube.
Part of SENFENG's NT series — 3kW-12kW Tube Laser Cutter — NT Series (Three Chucks), built for Medium-to-long tube (up to 12000mm) and small-to-medium diameters (up to 360mm).
The SF12035NT handles tube size Φ50-360mm / □50*50-360*360mm at 3-6kW with 3 chucks.
- Three-chuck structure supports 0 tailing with well-arranged cutting procedures
- Optional bevel cutting for weld-ready edges
- Follow-up support system stabilizes long tube during cutting
- Automatic unloading device reduces manual handling
- Full process-technology software suite: Zero Tailing Cutting, Nesting, Special Edge-Sharing, Fast Import, Automatic Sorting, Profiles Processing
- Supports a variety of tube materials and steels for high-precision, high-utilization cutting
| Laser Power | 3-6 kW |
| Max. Length of Tube | 3000-12000 mm |
| Tube Size | Φ50-360mm / □50*50-360*360mm |
| Max. Weight of Tube | 700 kg |
| X/Y-axis Positioning Accuracy | ±0.05 mm |
| X/Y-axis Repositioning Accuracy | ±0.03 mm |
| Max. No-load Speed | 60 m/min |
| Max. Chuck Rotating Speed | 60 r/min |
| Overall Dimensions (L*W*H) | 19800*2750*3350 mm |
| Power Supply | Three-phase 380V, 50Hz/60Hz (custom-made) |
| Chucks | 3 |
Frequently Asked Questions
What can the NT Series SF12035NT cut?
The SF12035NT handles tube sizes Φ50-360mm / □50*50-360*360mm at 3-6kW, up to 3000-12000mm long. Always confirm your exact tube dimensions, material, and weight requirements with our team before ordering.
Have more questions about SENFENG tube laser cutters? See our SENFENG Tube Laser Cutters FAQ.
