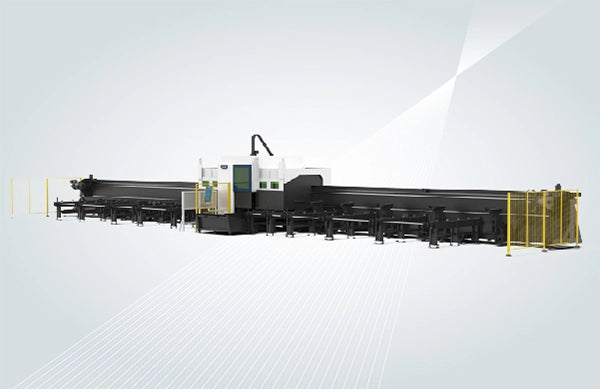

SENFENG HT Series Tube Laser Cutter SF12065HT
SENFENG's four-chuck flagship for the heaviest, largest-diameter tube cutting.
Part of SENFENG's HT series — 6kW-20kW Heavy-Duty Tube Laser Cutter — HT Series (Four Chucks), built for Heavy-duty, large-diameter tube cutting for construction, engineering machinery, and shipbuilding industries.
The SF12065HT handles tube size Φ50-640mm / □50*50-640*640mm at 6-20kW with 4 chucks.
- Side-mounted bed design built for large, heavy tube cutting
- High-load four-chuck device for heavy-duty, large-diameter, high-precision production
- Optional bevel cutting, including Y-type bevel capability
- Automatic loading and unloading device reduces manual handling of heavy tube
- Full process-technology software suite: Zero Tailing Cutting, Nesting, Special Edge-Sharing, Fast Import, Automatic Sorting, Profiles Processing
- Optional Weld Seam Inspection and Visual Scanning for stable, accurate cuts
| Laser Power | 6-20 kW |
| Max. Length of Tube | 12000 mm |
| Tube Size | Φ50-640mm / □50*50-640*640mm |
| Max. Weight of Tube | 3000 kg |
| X/Y-axis Positioning Accuracy | ±0.1/1000 mm |
| X/Y-axis Repositioning Accuracy | ±0.1 mm |
| Max. No-load Speed | 30 m/min |
| Max. Chuck Rotating Speed | 30 r/min |
| Overall Dimensions (L*W*H) | 29000*7200*4200 mm |
| Power Supply | Three-phase 380V, 50Hz/60Hz (custom-made) |
| Chucks | 4 |
Frequently Asked Questions
What can the HT Series SF12065HT cut?
The SF12065HT handles tube sizes Φ50-640mm / □50*50-640*640mm at 6-20kW, up to 12000mm long. Always confirm your exact tube dimensions, material, and weight requirements with our team before ordering.
