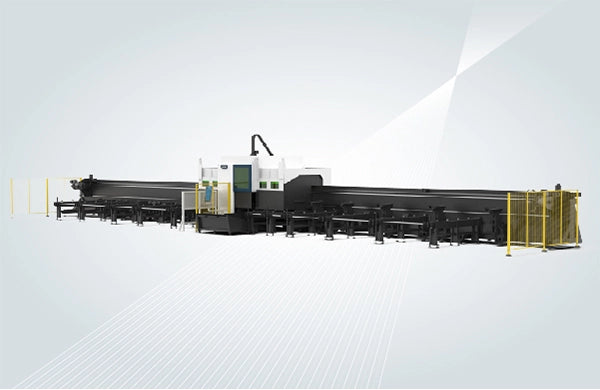

SENFENG HT Series Tube Laser Cutter SF12050HT
SENFENG's four-chuck flagship for the heaviest, largest-diameter tube cutting.
Part of SENFENG's HT series — 6kW-20kW Heavy-Duty Tube Laser Cutter — HT Series (Four Chucks), built for Heavy-duty, large-diameter tube cutting for construction, engineering machinery, and shipbuilding industries.
The SF12050HT handles tube size Φ50-500mm / □50*50-500*500mm at 6-20kW with 4 chucks.
- Side-mounted bed design built for large, heavy tube cutting
- High-load four-chuck device for heavy-duty, large-diameter, high-precision production
- Optional bevel cutting, including Y-type bevel capability
- Automatic loading and unloading device reduces manual handling of heavy tube
- Full process-technology software suite: Zero Tailing Cutting, Nesting, Special Edge-Sharing, Fast Import, Automatic Sorting, Profiles Processing
- Optional Weld Seam Inspection and Visual Scanning for stable, accurate cuts
| Laser Power | 6-20 kW |
| Max. Length of Tube | 12000 mm |
| Tube Size | Φ50-500mm / □50*50-500*500mm |
| Max. Weight of Tube | 2000 kg |
| X/Y-axis Positioning Accuracy | ±0.1/1000 mm |
| X/Y-axis Repositioning Accuracy | ±0.1 mm |
| Max. No-load Speed | 40 m/min |
| Max. Chuck Rotating Speed | 40 r/min |
| Overall Dimensions (L*W*H) | 29000*7200*4200 mm |
| Power Supply | Three-phase 380V, 50Hz/60Hz (custom-made) |
| Chucks | 4 |
Frequently Asked Questions
What can the HT Series SF12050HT cut?
The SF12050HT handles tube sizes Φ50-500mm / □50*50-500*500mm at 6-20kW, up to 12000mm long. Always confirm your exact tube dimensions, material, and weight requirements with our team before ordering.
Have more questions about SENFENG tube laser cutters? See our SENFENG Tube Laser Cutters FAQ.
