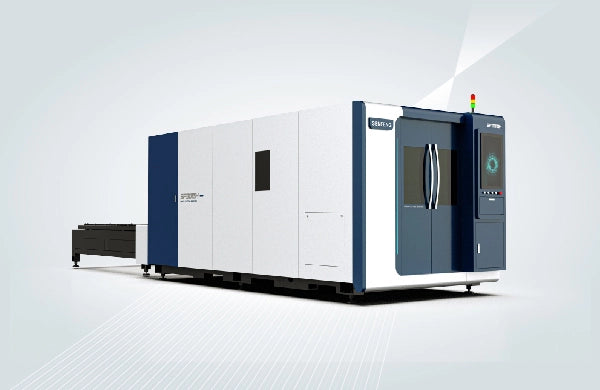

SENFENG's classic, cost-effective fully-enclosed cutter with double exchange platforms.
Part of SENFENG's HC series — 1.5kW-12kW Metal Sheet Fiber Laser Cutter — HC Series, built for High-power cutting in a compact footprint — for shops that want more power without more floor space. Available in 5 bed sizes and 4 power configurations (1.5kW, 3.0kW, 6.0kW, 12.0kW) — choose your combination below.
- Fully-enclosed structure (4-side panels, top cover, sealed lifting door) for a controlled, safe workspace
- Intelligent smoke-free dust extraction — dual-channel, zoned airflow activated by cutting position
- Panoramic HD visual monitoring minimizes blind spots
- Double exchange platforms in a compact footprint for high power without a large factory floor
- Jump Function cuts idle travel by 70%+, plus Flash/Smooth/Progressive/Deslag Piercing and Auto Edge Detection
- Flexible 20GP/40HQ container combinations for freight savings
Compare HC Series bed sizes
| Model | Working Area (L×W) | Max. Load of Platform | Overall Dimensions (L×W×H) |
|---|---|---|---|
| SF3015H | 3050×1530 mm | 1100 kg | 8520×2270×2180 mm |
| SF4015H | 4050×1530 mm | 1500 kg | 10940×2270×2200 mm |
| SF4020H | 4050×2030 mm | 1900 kg | 11064×3243×2260 mm |
| SF6015H | 6050×1530 mm | 2200 kg | 14740×2270×2200 mm |
| SF6020H | 6050×2030 mm | 2900 kg | 14900×3243×2260 mm |
All bed sizes share the same core specification regardless of size or power: X/Y-axis positioning accuracy ±0.05mm, X/Y-axis repositioning accuracy ±0.02mm, max. no-load speed 130 m/min, three-phase 380V 50/60Hz power supply.
Frequently Asked Questions
What power options are available for the HC Series?
The HC Series is offered in 1.5kW, 3.0kW, 6.0kW, and 12.0kW configurations across all 5 bed sizes, covering the series' full 1.5-12kW power range. Always confirm your exact material, thickness, and platform load requirements with our team before ordering.
What can the HC Series cut?
Medium-thin carbon steel, stainless steel, aluminium alloy, and brass plate, with bed sizes from 3050×1530mm up to 6050×2030mm.
Have more questions about SENFENG metal sheet cutters? See our SENFENG Metal Sheet Cutters FAQ.
