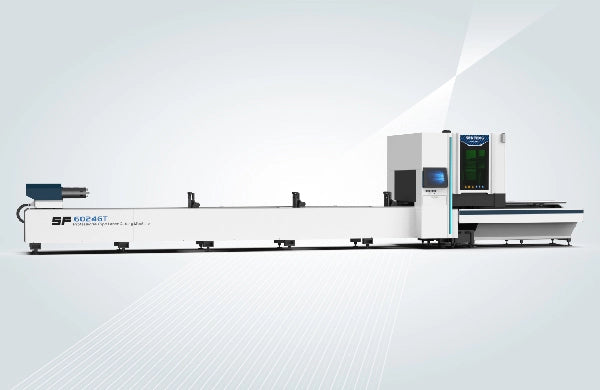

SENFENG GT Series Tube Laser Cutter SF6024GT
Precision beveling for seamless welding prep on small-to-medium tube.
Part of SENFENG's GT series — 3kW-6kW Beveling Tube Laser Cutter — GT Series (Two Chucks), built for ±45° bevel cutting on round, square, rectangular, oval tubes and profiles for weld-ready edges.
The SF6024GT handles tube size Φ20-230mm / □20*20-230*230mm at 3-6kW with 2 chucks.
- Two-chuck design supports straight cutting and ±45° bevel cutting
- High-precision dust-proof aluminium two-chuck construction
- Follow-up support system and Error Determination for stable cutting
- Profiles Centering auto-centers H/U/L beam profiles; Single-faced Centering for flat stock
- Suitable for small-to-medium tube diameters and short workpieces
- Full process-technology software suite: Nesting, Special Edge-Sharing, Fast Import, Automatic Sorting, Profiles Processing
| Laser Power | 3-6 kW |
| Max. Length of Tube | 2000-6500 mm |
| Tube Size | Φ20-230mm / □20*20-230*230mm |
| Max. Weight of Tube | 260 kg |
| X/Y-axis Positioning Accuracy | ±0.05 mm |
| X/Y-axis Repositioning Accuracy | ±0.03 mm |
| Max. No-load Speed | 100 m/min |
| Max. Chuck Rotating Speed | 100 r/min |
| Overall Dimensions (L*W*H) | 10200*2280*2530 mm |
| Power Supply | Three-phase 380V, 50Hz/60Hz (custom-made) |
| Chucks | 2 |
Frequently Asked Questions
What can the GT Series SF6024GT cut?
The SF6024GT handles tube sizes Φ20-230mm / □20*20-230*230mm at 3-6kW, up to 2000-6500mm long. Always confirm your exact tube dimensions, material, and weight requirements with our team before ordering.
Have more questions about SENFENG tube laser cutters? See our SENFENG Tube Laser Cutters FAQ.
