All-in-one production line for heavy structural profiles, H-beams, and plate.

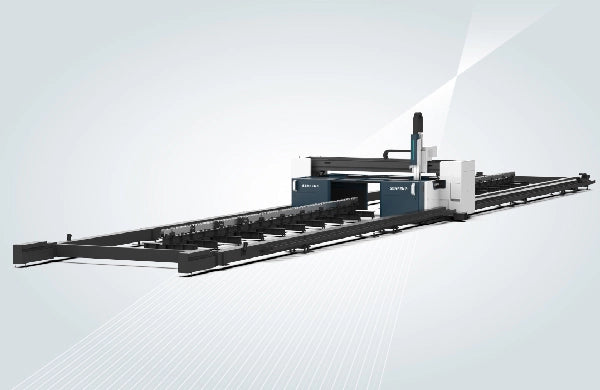

12kW-30kW Heavy-Duty Profile & H-Beam Laser Cutter — CH Series, built for Structural steel fabrication: H-beam, U-beam, L-beam, and flat plate cutting for construction, bridges, and engineering machinery.
Note: Classified under Tube Laser Cutters on Senfeng's own site, but the CH Series is functionally a structural profile/H-beam cutter rather than a round/square tube cutter.
- A&B-axis dual swing-angle cutting head (±55°/±105°) for bevel prep on structural profiles
- High-rigidity segmented bed structure built for heavy, thick, high-strength steel
- Two optional workbench configurations: H-Beam Support Workbench (dual-station, two 12m H-beams) or H-Beam + Flat Plate Combination Workbench (one side up to 12m H-beams, other side plate up to 12000×2500mm)
- Vision calibration and Laser Profiling (BCW contour scanner) for accurate setup
- 3-in-1 cutting and professional nesting (TubesT + Tekla integration)
- Optional fully-enclosed gantry structure isolates laser radiation and metal debris, reducing dust and noise
Key Specifications
| Laser Power | 12-30 kW |
| Working Area (L*W) | 28000*3000 mm |
| Width of H-Beam (Web) | 100-1200 mm |
| Max. Height of H-Beam (Flange) | 500 mm |
| Max. Cutting Thickness | ≤50mm straight / ≤35mm flange bevel |
| X/Y-axis Positioning Accuracy | ±0.1 mm/m |
| X/Y-axis Repositioning Accuracy | ±0.05 mm/m |
| Max. No-load Speed | 50 m/min |
| Power Supply | Three-phase 380V, 50/60Hz (custom-made) |
Workbench Configurations
| Configuration | Capability | Overall Dimensions |
|---|---|---|
| H-Beam Support Workbench | Dual-station, two 12m H-beams, web 100-1200mm | 33130*5900*3030 mm |
| H-Beam + Flat Plate Combination Workbench | One side up to 12m H-beams, other side plate up to 12000×2500mm, alternating dual-pallet operation | 35670*5900*3030 mm |
Frequently Asked Questions
What shapes can the CH Series SF1500CH cut?
The SF1500CH is built for structural steel profiles - H-beam, U-beam, and L-beam - plus flat plate when fitted with the combination workbench, up to 28000×3000mm working area at 12-30kW. It is not intended for round or square tube cutting. Always confirm your exact profile dimensions and workbench configuration with our team before ordering.
