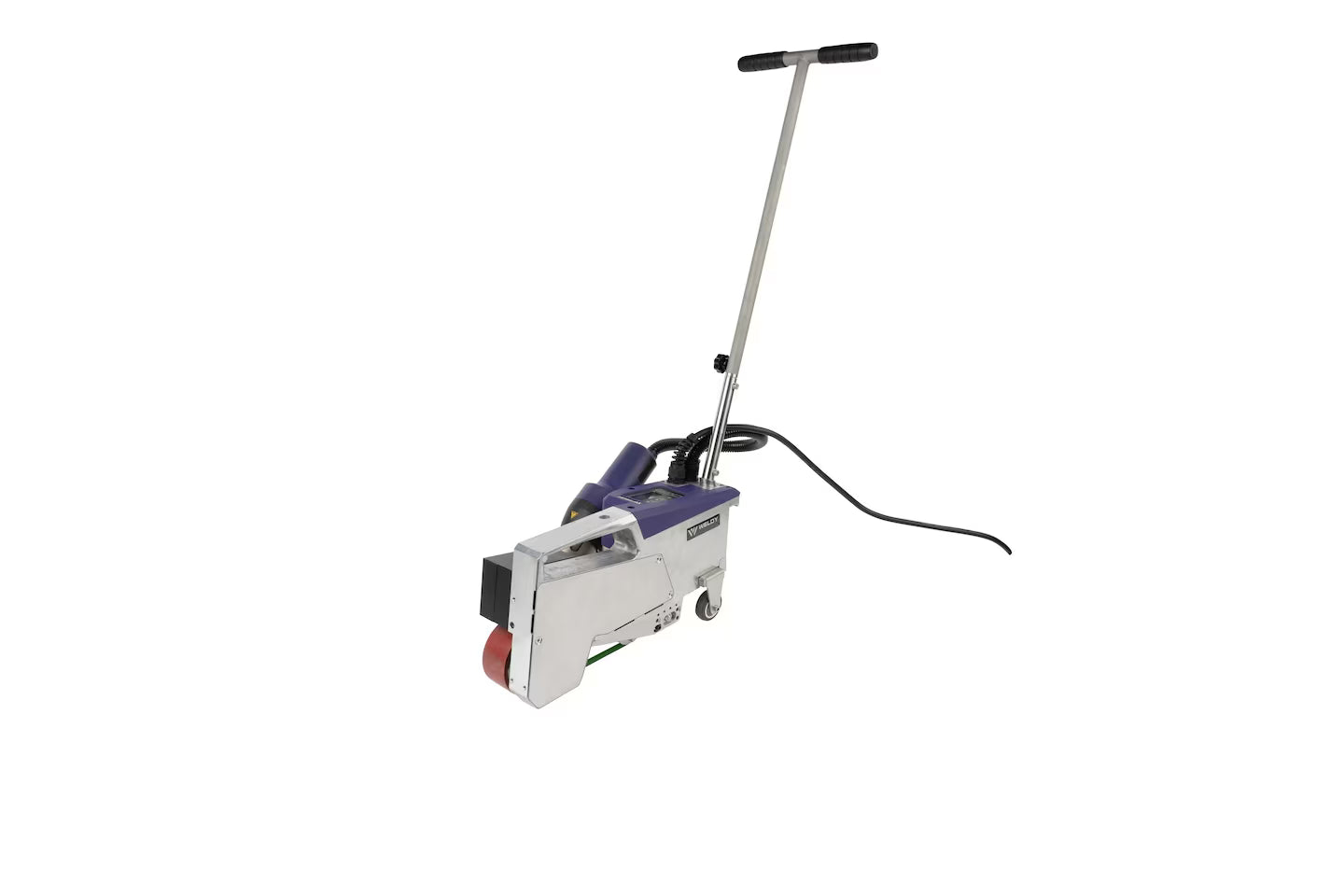

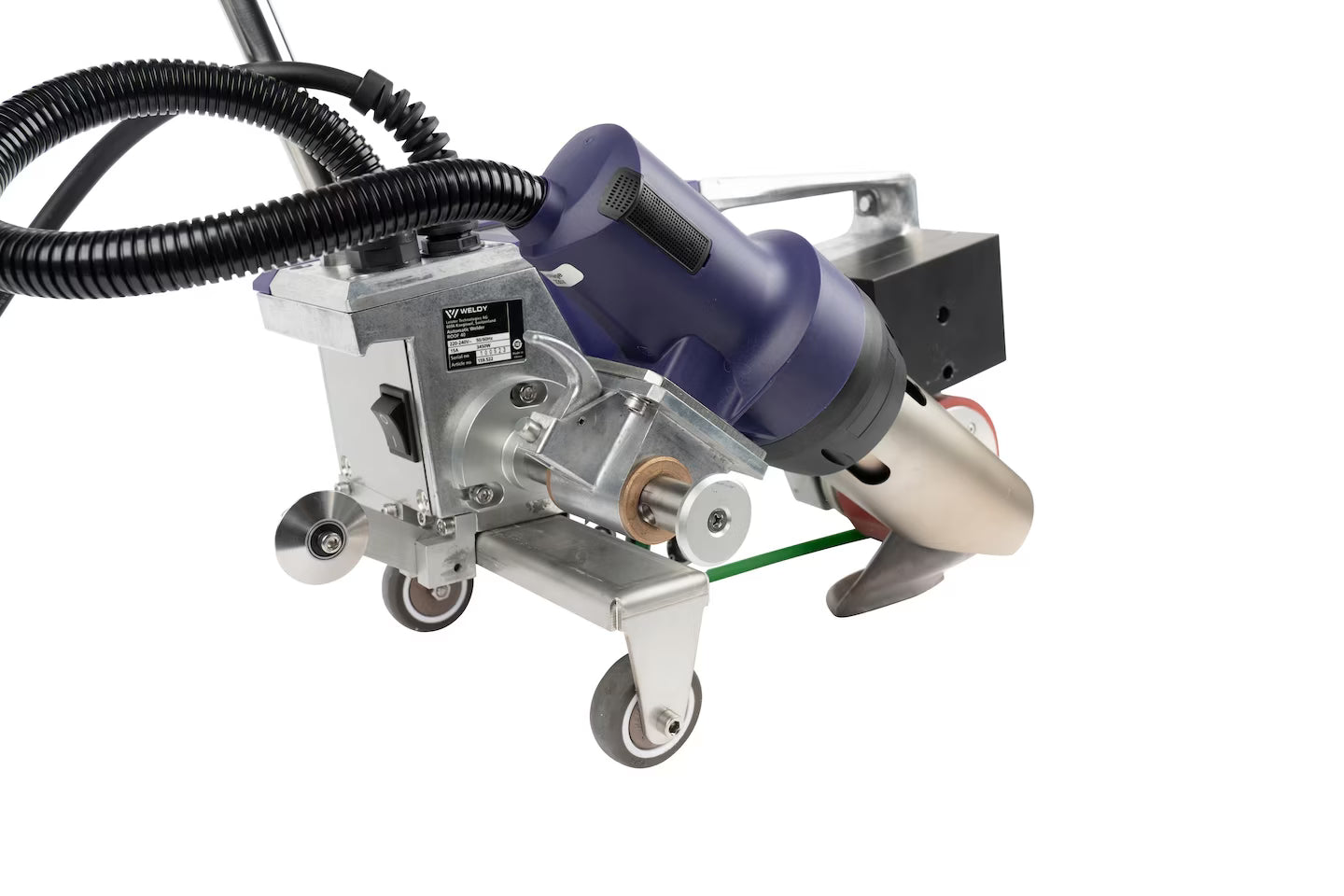

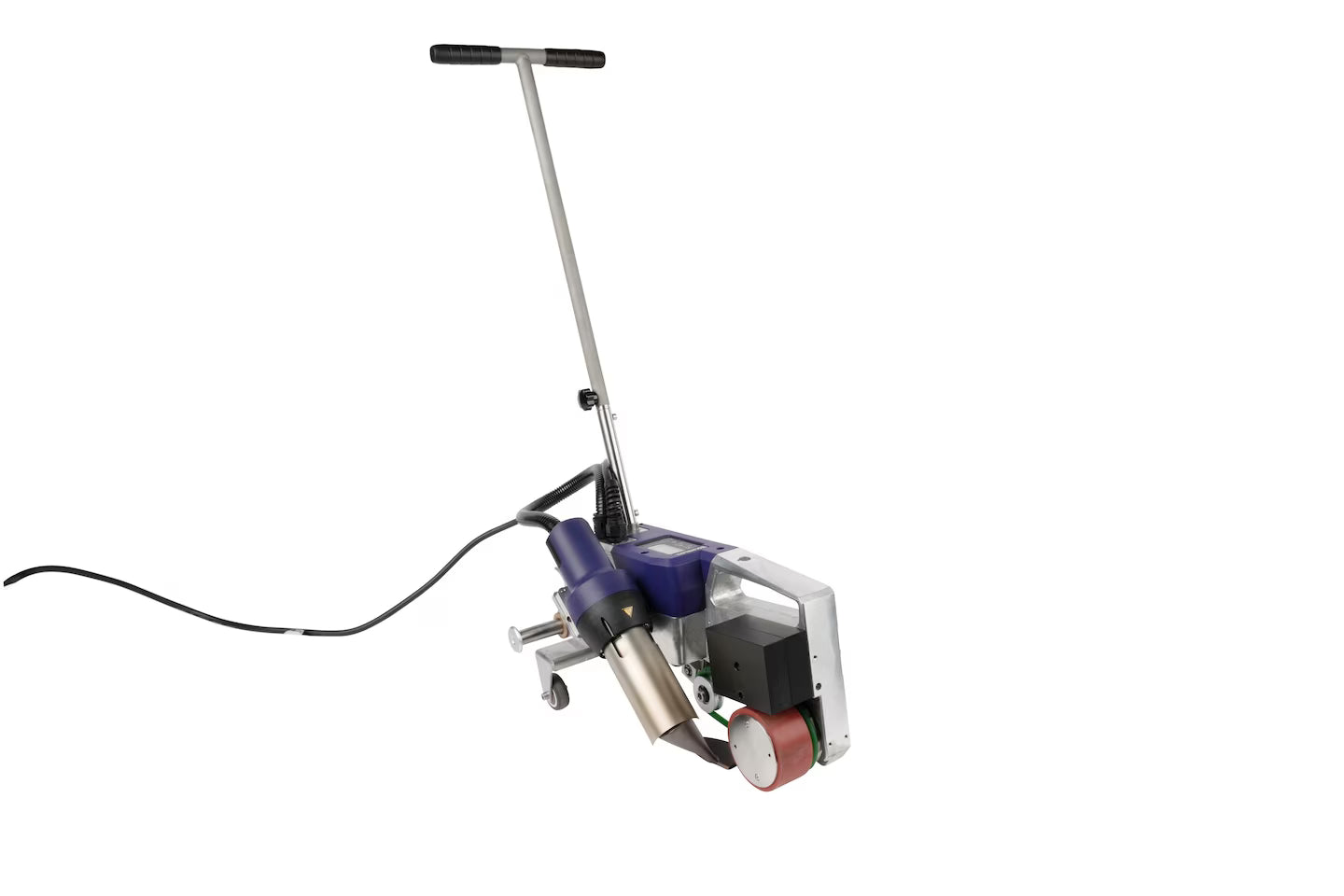

ROOFER ROOF40 OVERLAP AUTO WELDING MACHINE

The universal welding machine roof40 from Weldy is designed to handle various requirements, making it suitable for all roofing applications and overlap welding of technical textiles or industrial fabrics. Whether you need to weld close-to-the-edge on roofs, in narrow areas down to 100 mm, or overlap welding tarpaulins, banners, or films, the roof40 is the ideal choice. The patented drive allows the roof40 to handle inclines up to 30 degrees with ease.

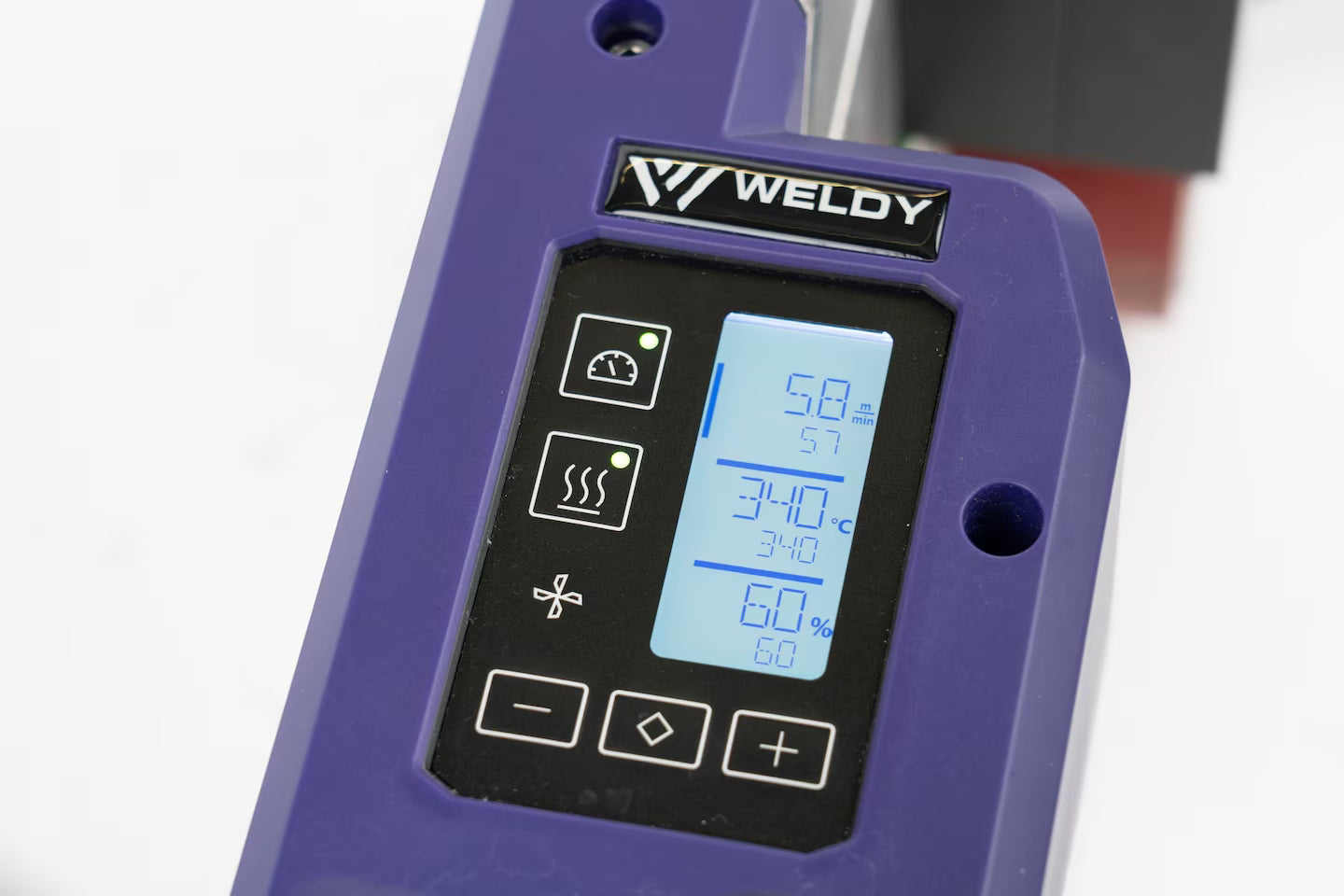

It stands out from the crowd thanks to its intuitive, display-based operation and ability to easily set all welding parameters such as speed, air flow range and temperature. Its well-balanced, ergonomic design and low weight also make it easy to operate. With all of this in mind, the roof40 from Weldy is a universally usable overlap welding machine that’s suitable for a wide range of requirements and applications!

MAIN APPLICATIONS

• Bitumen welding
• Flat roof membrane welding
• Pitched roof membrane welding
• Pool waterproofing
• Overlap welding of advertising banners, tarpaulins and technical films

SPECIFICATIONS:

• Voltage 230 V, 3450 W
• Temperature range °C 100 -600
• Speed m/min 1 – 10.0
• Weld seam width 40mm Overlap
• Weight kg 15.5
• Dimensions 475 x 244 x 260mm
• Weldable materials

  ECB; EPDM; EVA; FPO; PIB; PVC; TPE; TPO; TPU

THE WELDY ROOFER RW3400:

• Extra wide 40 mm welding nozzle fulfills international standards
• Heavy weight direct above the contact roller results in high quality weld seam
• Powerful 3450 W hot air blower to achieve the desired temperature and air volume
• Free adjustable speed up to 10.0m/min
• Made for TPO and PVC materials
• Automatic driving and welding start
• Guide bar and lifting device for easy handling
• Free variable welding temperature
• Low-maintenance drive
• Handles inclines up to 30 degrees thanks to patented drive
