Prisma – Diamond Bevel Edge Acrylic Polishing Machines

SKU: Prisma

Indicative Price Ex-Works Melbourne Metro

Regular price
$9,950.00 AUD
Regular price
Sale price
$9,950.00 AUD
or Call Us Now: 1300 722 868

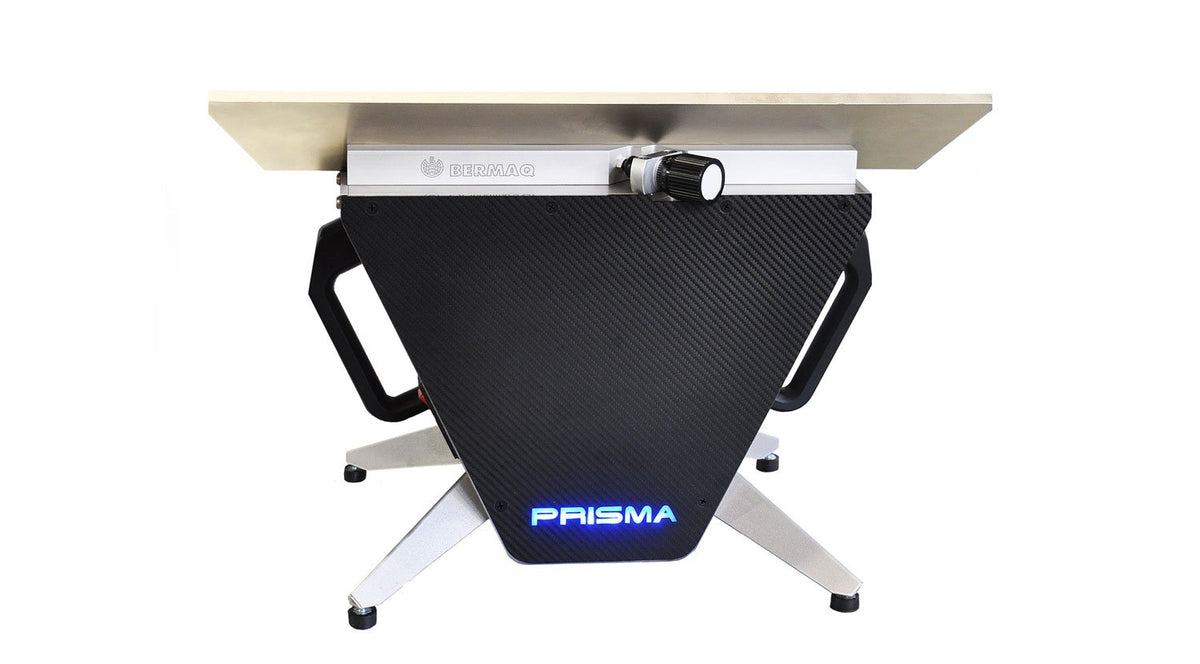

 Exclusive mini acrylic bevelling machine with reduced dimensions capable of achieving high-quality finishes. It is a portable desktop machine created for polishing the edges of methacrylate, PC, aluminum, resins, PMMA and other non-ferrous materials. Thanks to its original BERMAQ diamond tools, this mini edge polisher achieves clear and glossy finishes effortlessly. It is ideal for polishing small pieces.

In addition to its small size, the two handles of the machine allow it to be easily moved. Affordable for both the fabricator who polishes small pieces and the installer who needs to do the finishing touches on-site.

The PRISMA is a unique portable edge polisher manufactured exclusively by BERMAQ®. This model completes the range of the WORLD’S MOST COMPACT edge polishers together with the BOX portable mini polisher.

In fact, the PRISMA and the BOX are the perfect couple for acrylic product manufacturers. The PRISMA has the ability to polish the edge corner removing only 0.1mm in addition to chamfers and bevels at angles of 44º and 45º. It also has the ability to achieve a complete bevel on pieces from 0 to 8mm thick. For other bevels there is no maximum part thickness, although a maximum of 500mm is recommended.

On the other hand, with the BOX, it is possible to polish straight edges on small pieces, although it is possible to reach pieces up to 1 meter long with its BOX EXTENDER accessory. Both machines are very economically priced and can meet both straight and bevel edge polishing needs. Best of all, being compact and portable machines can be placed anywhere in the workshop and easily transported to other locations.

The PRISMA has the ability to polish the edge corner removing only 0.1mm in addition to chamfers and bevels at angles of 44º and 45º. It also has the ability to achieve a complete bevel on pieces from 0 to 8mm thick. For other bevels there is no maximum part thickness, although a maximum of 500mm is recommended.

Both the PRISMA and the BOX are characterized by their great versatility when polishing a wide variety of materials (methacrylate, acrylic, PC, aluminum, resins, PMMA, and other non-ferrous materials) and achieving in each of them an unbeatable result. The finishes achieved with these machines are easily identifiable thanks to the gloss, smoothness, and transparency achieved. This high quality on all surfaces is due to the diversity of BERMAQ® diamond tools (possibility of different finishes).

These portable table-top edge polishers are sold with chip suction included and with a set of diamond tools as standard (cutting and transparent finish). Sold exclusively through the manufacturer (BERMAQ®) and officially certified distributors. The BOX and PRISMA methacrylate polishers are unique in the world. Manufactured entirely in Spain with European parts.

The PRISMA mini bevelling machine is a pioneer in the plastic polishing market as it allows to achieve top-of-the-range results but with a much lower investment. In addition, thanks to its compact size, it takes up very little space, can be placed anywhere, and is easily transportable, which makes it a multipurpose and functional machine. It is a great investment for those companies that need to differentiate themselves from their competitors since the PRISMA will offer them a strong advantage in the quality of the finishes.

The portable bevelling machine PRISMA for acrylic and PMMA is a pioneer in the plastic polishing market, since it allows to achieve top-of-the-range results but with a much lower investment. This BERMAQ® machine has become a revolution in the world of methacrylate because of its great versatility in polishing different materials, its high performance, and, of course, the high-quality finishes it offers.

Characteristics

  • Characteristics: Working length: 700mm *
  • Maximum thickness: 500mm *
  • Maximum thickness (complete bevel): 8mm
  • Minimum thickness: 0,5mm
  • Cutting depth: 0mm to 3mm *
  • Maximum chamfer width: 11mm
  • Milling motor speed: 7000 to 12000 RPM
  • Power supply: 220 V 1PH+n // 50Hz / 60Hz

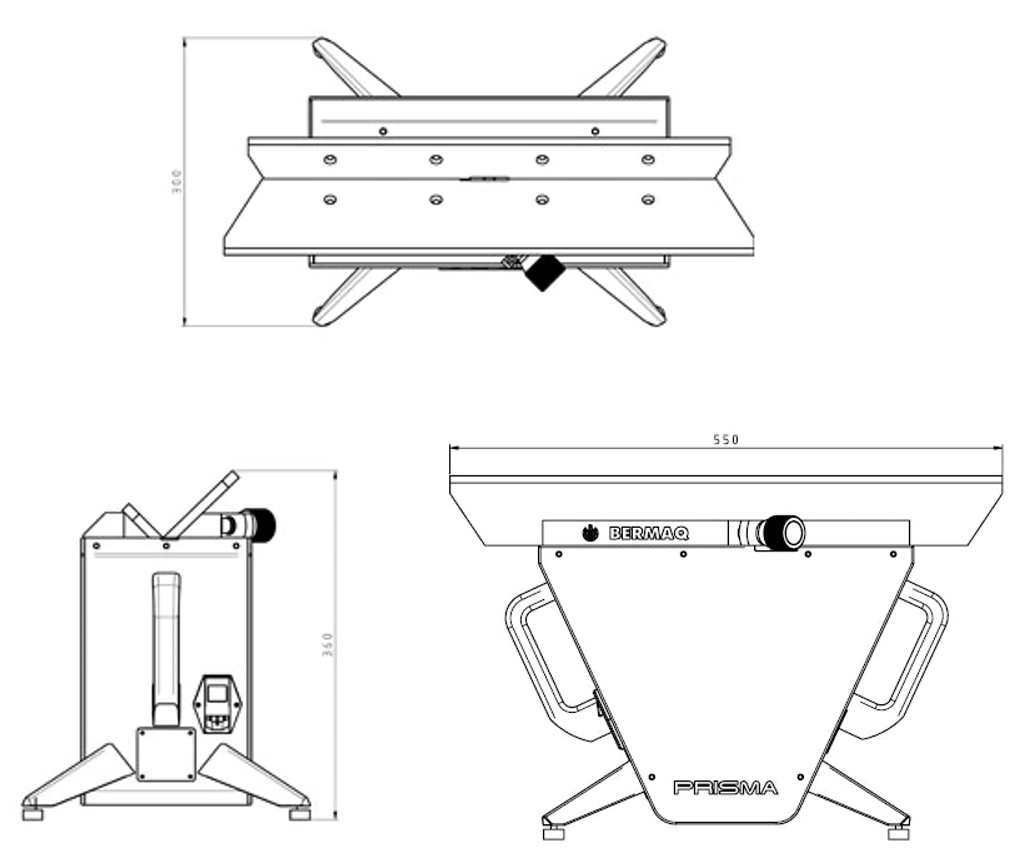

  • Outside dimensions: 550 x 300 x 360 mm
  • Weight: 16 kg Power: 600W
  • CE Safety Regulations
  • Manual power supply *

Applications
  • Acrylic boxes and urns
  • Acrylic displays
  • Acrylic decorative elements
  • Elements for stands
  • Gift objects and costume jewelry
  • Pictures and frames
  • Trophies and awards

Included tools
Cutting and polishing tools for transparent finish (black/red):
  • EIMQ-131003-LA: Transparent finishing tool (red)
  • EIMQ-131001-LA: Roughing tool (black)

 Exclusive mini acrylic bevelling machine with reduced dimensions capable of achieving high-quality finishes. It is a portable desktop machine created for polishing the edges of methacrylate, PC, aluminum, resins, PMMA and other non-ferrous materials. Thanks to its original BERMAQ diamond tools, this mini edge polisher achieves clear and glossy finishes effortlessly. It is ideal for polishing small pieces.

In addition to its small size, the two handles of the machine allow it to be easily moved. Affordable for both the fabricator who polishes small pieces and the installer who needs to do the finishing touches on-site.

The PRISMA is a unique portable edge polisher manufactured exclusively by BERMAQ®. This model completes the range of the WORLD’S MOST COMPACT edge polishers together with the BOX portable mini polisher.

In fact, the PRISMA and the BOX are the perfect couple for acrylic product manufacturers. The PRISMA has the ability to polish the edge corner removing only 0.1mm in addition to chamfers and bevels at angles of 44º and 45º. It also has the ability to achieve a complete bevel on pieces from 0 to 8mm thick. For other bevels there is no maximum part thickness, although a maximum of 500mm is recommended.

On the other hand, with the BOX, it is possible to polish straight edges on small pieces, although it is possible to reach pieces up to 1 meter long with its BOX EXTENDER accessory. Both machines are very economically priced and can meet both straight and bevel edge polishing needs. Best of all, being compact and portable machines can be placed anywhere in the workshop and easily transported to other locations.

The PRISMA has the ability to polish the edge corner removing only 0.1mm in addition to chamfers and bevels at angles of 44º and 45º. It also has the ability to achieve a complete bevel on pieces from 0 to 8mm thick. For other bevels there is no maximum part thickness, although a maximum of 500mm is recommended.

Both the PRISMA and the BOX are characterized by their great versatility when polishing a wide variety of materials (methacrylate, acrylic, PC, aluminum, resins, PMMA, and other non-ferrous materials) and achieving in each of them an unbeatable result. The finishes achieved with these machines are easily identifiable thanks to the gloss, smoothness, and transparency achieved. This high quality on all surfaces is due to the diversity of BERMAQ® diamond tools (possibility of different finishes).

These portable table-top edge polishers are sold with chip suction included and with a set of diamond tools as standard (cutting and transparent finish). Sold exclusively through the manufacturer (BERMAQ®) and officially certified distributors. The BOX and PRISMA methacrylate polishers are unique in the world. Manufactured entirely in Spain with European parts.

The PRISMA mini bevelling machine is a pioneer in the plastic polishing market as it allows to achieve top-of-the-range results but with a much lower investment. In addition, thanks to its compact size, it takes up very little space, can be placed anywhere, and is easily transportable, which makes it a multipurpose and functional machine. It is a great investment for those companies that need to differentiate themselves from their competitors since the PRISMA will offer them a strong advantage in the quality of the finishes.

The portable bevelling machine PRISMA for acrylic and PMMA is a pioneer in the plastic polishing market, since it allows to achieve top-of-the-range results but with a much lower investment. This BERMAQ® machine has become a revolution in the world of methacrylate because of its great versatility in polishing different materials, its high performance, and, of course, the high-quality finishes it offers.

Characteristics

  • Characteristics: Working length: 700mm *
  • Maximum thickness: 500mm *
  • Maximum thickness (complete bevel): 8mm
  • Minimum thickness: 0,5mm
  • Cutting depth: 0mm to 3mm *
  • Maximum chamfer width: 11mm
  • Milling motor speed: 7000 to 12000 RPM
  • Power supply: 220 V 1PH+n // 50Hz / 60Hz
  • Outside dimensions: 550 x 300 x 360 mm
  • Weight: 16 kg Power: 600W
  • CE Safety Regulations
  • Manual power supply *

Applications
  • Acrylic boxes and urns
  • Acrylic displays
  • Acrylic decorative elements
  • Elements for stands
  • Gift objects and costume jewelry
  • Pictures and frames
  • Trophies and awards

Included tools
Cutting and polishing tools for transparent finish (black/red):
  • EIMQ-131003-LA: Transparent finishing tool (red)
  • EIMQ-131001-LA: Roughing tool (black)
