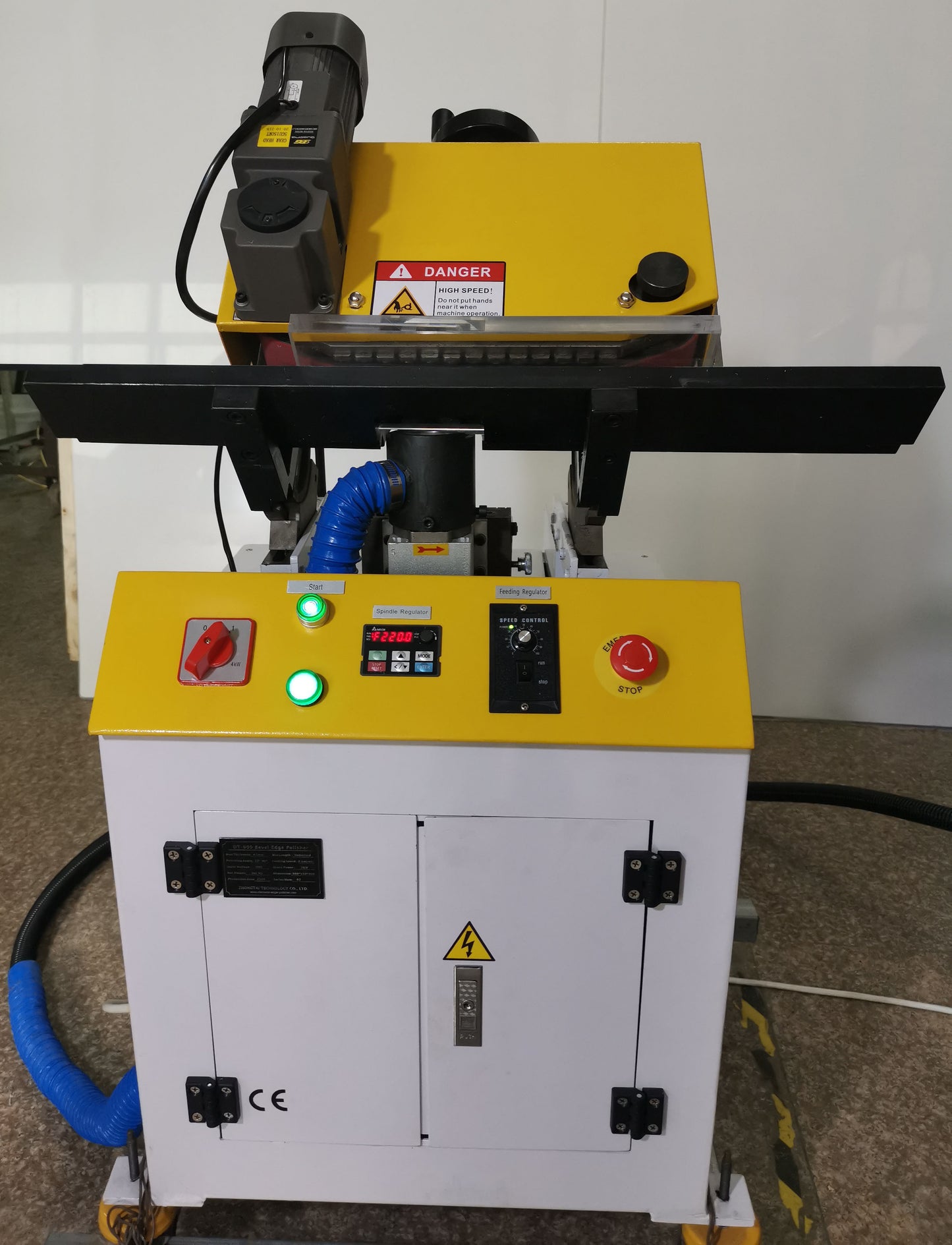

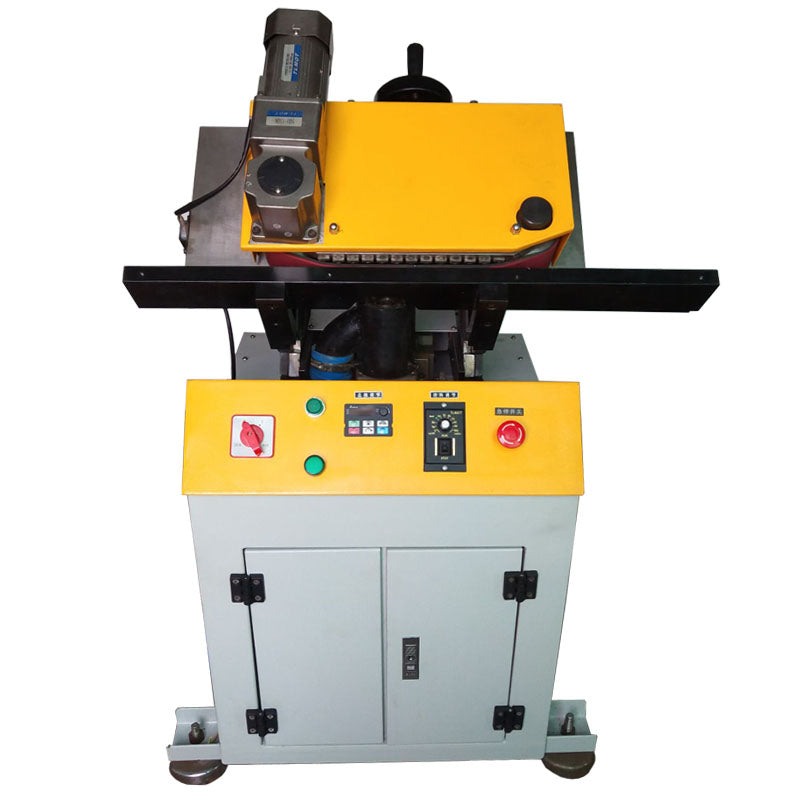

PQ-900 Diamond Bevel Edge Polishing Machine

SKU: PQ-900

Indicative Price Ex-Works Melbourne Metro

$21,000.00 AUD
$21,000.00 AUD
or Call Us Now: 1300 722 868

Model: DT-900
Product Description:
A. This machine excels at polishing both bevel and flat edges, allowing for adjustable polishing angles ranging from 15 to 90 degrees.

  1. It can effectively polish materials with a maximum thickness of up to 45mm, and its length capacity is unrestricted.

  2. Featuring premium Diamond Tools, this device ensures superior polishing effects and a longer operational lifespan.

  3. With two roughing blades and one finishing blade, this system guarantees high speed and precision in its operation.

  4. The machine incorporates top-notch components: Mitsubishi belts from Japan, SKF Bearings from Switzerland, Coil springs from Germany, and a Delta inverter from Taiwan.

  5. Boasting a high-quality spindle motor and inverter, this device guarantees impressive speed, precision, and stability.

  6. Despite its high integration and small footprint, the machine maintains a considerable size, eliminating the need for a large working room.

  7. The innovative cutting hub design prevents blade breakage, enhancing the machine's durability.



Product Features:

  1. Versatile Material Capability: This machine is proficient in polishing a variety of materials including Acrylic, Organic Glass, PMMA, Plastic, PC (poly C), PS board, and more.

  2. Exquisite Polishing Quality: Following diamond polishing, surfaces attain a mirror-like smoothness, free from bubbles and devoid of deficiencies often associated with traditional cloth wheel or flame polishing. This machine is indispensable for producing high-quality Acrylic, PMMA, PC, and PS board products.

  3. Precision and Cost Efficiency: Combining precision with minimal labour costs, the machine ensures immaculate polishing without wastage of materials.

  4. Integrated High-Power Dust Collector: The machine is equipped with a powerful dust collector that effectively captures dust and prevents splashes during the polishing process.

  5. Safety and User-Friendly Operation: Operating on automation, the machine heightens safety by minimizing the risk of labour-related injuries.

  6. Environmentally Friendly Design: Characterized by its low noise, low energy consumption, and lack of dust emissions, the machine maintains an eco-friendly profile.

  7. CE Certified: Holding the CE certification, this machine complies with essential health, safety, and environmental standards.



Detailed Parameters:

Model

PQ-900 Bevel Edge Polisher

Maximum Cutting length

Unlimited

Maximum Cutting width

40(mm)

Cutting Mode

End surface cutting

Cutting Angle

15~90 Degree

Cutting Depth

0.5mm

Cutting Speed

>1000mm/min (Suggest 600mm/min)

Spindle Speed

6600 RPM

Spindle Motor

2KW
Spindle End Pulsation

¡Ü0.01MM
Work table of motion straightness error

¡Ü0.05MM

Fixed Material Mode

Manual Crank handle

Diamond Tools

2xPCD Blades & 1x Monocrystal Blade

Dust Collector Interface

40mm

Machine Dimensions

800x550x900 mm

Input Power

220V/1PH/50~60Hz

Rated Power

2.2KW

Weight

205 KG

Model: DT-900
Product Description:
A. This machine excels at polishing both bevel and flat edges, allowing for adjustable polishing angles ranging from 15 to 90 degrees.

  1. It can effectively polish materials with a maximum thickness of up to 45mm, and its length capacity is unrestricted.

  2. Featuring premium Diamond Tools, this device ensures superior polishing effects and a longer operational lifespan.

  3. With two roughing blades and one finishing blade, this system guarantees high speed and precision in its operation.

  4. The machine incorporates top-notch components: Mitsubishi belts from Japan, SKF Bearings from Switzerland, Coil springs from Germany, and a Delta inverter from Taiwan.

  5. Boasting a high-quality spindle motor and inverter, this device guarantees impressive speed, precision, and stability.

  6. Despite its high integration and small footprint, the machine maintains a considerable size, eliminating the need for a large working room.

  7. The innovative cutting hub design prevents blade breakage, enhancing the machine's durability.



Product Features:

  1. Versatile Material Capability: This machine is proficient in polishing a variety of materials including Acrylic, Organic Glass, PMMA, Plastic, PC (poly C), PS board, and more.

  2. Exquisite Polishing Quality: Following diamond polishing, surfaces attain a mirror-like smoothness, free from bubbles and devoid of deficiencies often associated with traditional cloth wheel or flame polishing. This machine is indispensable for producing high-quality Acrylic, PMMA, PC, and PS board products.

  3. Precision and Cost Efficiency: Combining precision with minimal labour costs, the machine ensures immaculate polishing without wastage of materials.

  4. Integrated High-Power Dust Collector: The machine is equipped with a powerful dust collector that effectively captures dust and prevents splashes during the polishing process.

  5. Safety and User-Friendly Operation: Operating on automation, the machine heightens safety by minimizing the risk of labour-related injuries.

  6. Environmentally Friendly Design: Characterized by its low noise, low energy consumption, and lack of dust emissions, the machine maintains an eco-friendly profile.

  7. CE Certified: Holding the CE certification, this machine complies with essential health, safety, and environmental standards.



Detailed Parameters:

Model

PQ-900 Bevel Edge Polisher

Maximum Cutting length

Unlimited

Maximum Cutting width

40(mm)

Cutting Mode

End surface cutting

Cutting Angle

15~90 Degree

Cutting Depth

0.5mm

Cutting Speed

>1000mm/min (Suggest 600mm/min)

Spindle Speed

6600 RPM

Spindle Motor

2KW
Spindle End Pulsation

¡Ü0.01MM
Work table of motion straightness error

¡Ü0.05MM

Fixed Material Mode

Manual Crank handle

Diamond Tools

2xPCD Blades & 1x Monocrystal Blade

Dust Collector Interface

40mm

Machine Dimensions

800x550x900 mm

Input Power

220V/1PH/50~60Hz

Rated Power

2.2KW

Weight

205 KG
