PLASQUIP CALCULATOR
Plan the bend before choosing your heating setup
Estimate heating-zone width, minimum radius, sheet temperature and a suitable Shannon profile.
Available first week of October
Key features
- Operates on low voltage to secure electrical stability

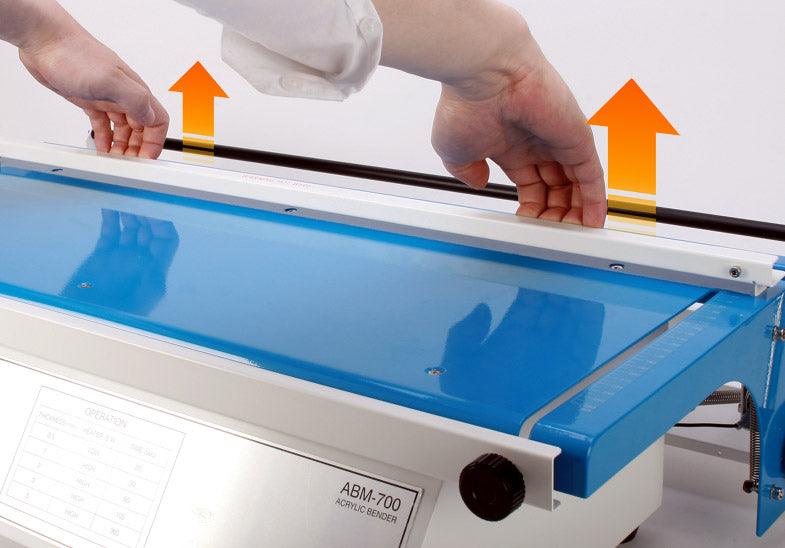

- Push handle enables accurate bending

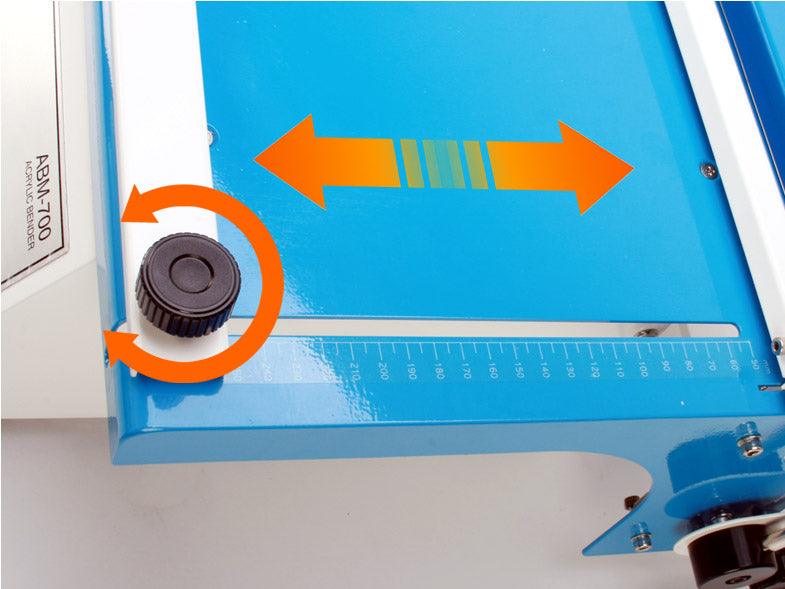

- Angle setting equipment enables the same angle to be duplicated one after another

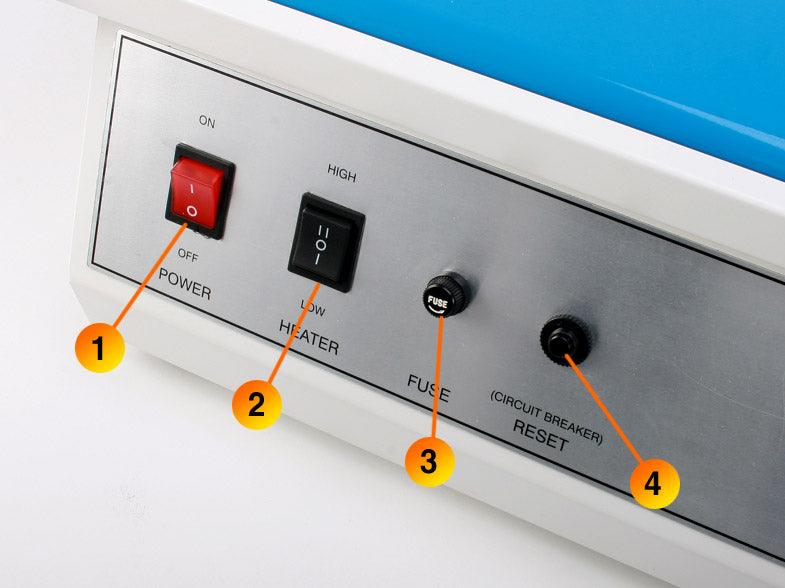

- Heating level can be adjusted for different thicknesses of the materials
Specifications
| Heating capacity width | 700mm |
| Wire thickness | Ø 0.9mm |
| Heating type | Nichrome wire |
| Power | Single phase 220V 50/60(Hz), 180W |
| Dimensions | 850 x 410 x 220mm |
| Weight | 10kg |
Availability
This item is normally in stock. If out of stock lead time is normally 14 to 21 days. If this item is required urgently then it’s best to check with us before ordering.
