OR-5000 Orbitwrap Maxi Stretch Wrapper 2.5m Wrap Height - 1.65m Table - 150-400% Powered Pre-Stretc

SKU: OR-5000
Regular price
$22,851.40 AUD
Regular price
Sale price
$22,851.40 AUD

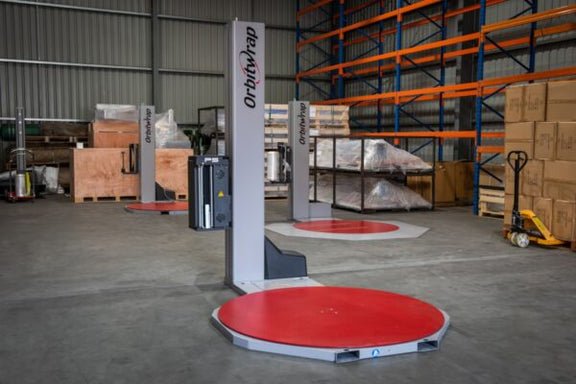

The OR-5000 stretch wrapper 2.5m wrap height is a heavy-duty, powered pre-stretch machine built for high-volume palletising operations that demand consistent load containment and controlled film consumption. Fitted with a 1.65m diameter turntable and a dual-motor pre-stretch carriage adjustable from 120% to 400%, it gives operators precise control over how film is applied across every cycle - helping to reduce material costs without compromising load security.

Key Features of the OR-5000 Stretch Wrapper 2.5m Wrap Height

The OR-5000 stretch wrapper with 2.5m wrap height is equipped with a range of features designed to support continuous production environments:

  • Powered dual-motor pre-stretch carriage: Adjustable from 120% to 400%, allowing significant reductions in film usage per pallet while maintaining reliable load containment. Higher stretch ratios mean fewer rolls consumed per shift.
  • Variable film carriage and turntable speeds: Operators can adjust wrap tension and cycle time to suit different load types and weights across a production run.
  • Photocell eye for automatic height detection: The machine reads the height of each load automatically and adjusts the wrap cycle without requiring manual input. An optional black photocell eye is available for wrapping dark or black products.
  • Automatic and manual wrapping programs: Fully automatic mode supports consistent throughput, while manual mode accommodates non-standard or irregular loads.
  • Soft-start and stop turntable drive: Reduces the risk of load shifting on unstable or top-heavy pallets at the beginning and end of each wrap cycle.
  • Heavy-duty industrial chain-driven turntable: Designed to withstand the repetitive demands of continuous production environments.
  • Safety crush prevention device: Fitted to the carriage to reduce the risk of operator injury during normal operation.
  • Forklift relocation slots: Allow the machine to be repositioned within a facility without the need for specialist lifting equipment.
  • 1.65m standard turntable diameter: Upgrade options are available to 1800mm, 2200mm, or 2400mm to accommodate larger pallet footprints.

Available Configuration Options

The OR-5000 stretch wrapper 2.5m wrap height can be configured to match specific site requirements. Mast height options include 2400mm, 2700mm, and a 2700mm mast paired with an 1800mm diameter turntable. Additional wrapping heights of 2700mm, 3000mm, 3300mm, and 3700mm are available for operations handling taller loads. A mechanical top press is offered for loads that are difficult to stabilise at the top during wrapping, and a black photocell eye upgrade is available for facilities that regularly wrap dark-coloured products.

Typical Applications

The OR-5000 stretch wrapper with 2.5m wrap height suits warehouses, distribution centres, and manufacturing facilities where pallets are wrapped continuously throughout the working day. Its wide pre-stretch range makes it practical for operations looking to reduce film expenditure at scale. It is well suited to food and beverage, building materials, industrial components, and any sector where pallet loads vary in height or weight and consistent containment is essential. The variable speed controls and selectable wrapping programs also make it adaptable to facilities running mixed pallet types on the same line.

If your operation requires weighing pallets before or after the wrap cycle, the Or-3000/4000/5000 1650mm Table Platform Scale - 3000kg is a compatible accessory designed to work with this turntable size. To discuss which mast height and turntable configuration suits your operation, contact our team for a tailored quote.

The OR-5000 stretch wrapper 2.5m wrap height is a heavy-duty, powered pre-stretch machine built for high-volume palletising operations that demand consistent load containment and controlled film consumption. Fitted with a 1.65m diameter turntable and a dual-motor pre-stretch carriage adjustable from 120% to 400%, it gives operators precise control over how film is applied across every cycle - helping to reduce material costs without compromising load security.

Key Features of the OR-5000 Stretch Wrapper 2.5m Wrap Height

The OR-5000 stretch wrapper with 2.5m wrap height is equipped with a range of features designed to support continuous production environments:

  • Powered dual-motor pre-stretch carriage: Adjustable from 120% to 400%, allowing significant reductions in film usage per pallet while maintaining reliable load containment. Higher stretch ratios mean fewer rolls consumed per shift.
  • Variable film carriage and turntable speeds: Operators can adjust wrap tension and cycle time to suit different load types and weights across a production run.
  • Photocell eye for automatic height detection: The machine reads the height of each load automatically and adjusts the wrap cycle without requiring manual input. An optional black photocell eye is available for wrapping dark or black products.
  • Automatic and manual wrapping programs: Fully automatic mode supports consistent throughput, while manual mode accommodates non-standard or irregular loads.
  • Soft-start and stop turntable drive: Reduces the risk of load shifting on unstable or top-heavy pallets at the beginning and end of each wrap cycle.
  • Heavy-duty industrial chain-driven turntable: Designed to withstand the repetitive demands of continuous production environments.
  • Safety crush prevention device: Fitted to the carriage to reduce the risk of operator injury during normal operation.
  • Forklift relocation slots: Allow the machine to be repositioned within a facility without the need for specialist lifting equipment.
  • 1.65m standard turntable diameter: Upgrade options are available to 1800mm, 2200mm, or 2400mm to accommodate larger pallet footprints.

Available Configuration Options

The OR-5000 stretch wrapper 2.5m wrap height can be configured to match specific site requirements. Mast height options include 2400mm, 2700mm, and a 2700mm mast paired with an 1800mm diameter turntable. Additional wrapping heights of 2700mm, 3000mm, 3300mm, and 3700mm are available for operations handling taller loads. A mechanical top press is offered for loads that are difficult to stabilise at the top during wrapping, and a black photocell eye upgrade is available for facilities that regularly wrap dark-coloured products.

Typical Applications

The OR-5000 stretch wrapper with 2.5m wrap height suits warehouses, distribution centres, and manufacturing facilities where pallets are wrapped continuously throughout the working day. Its wide pre-stretch range makes it practical for operations looking to reduce film expenditure at scale. It is well suited to food and beverage, building materials, industrial components, and any sector where pallet loads vary in height or weight and consistent containment is essential. The variable speed controls and selectable wrapping programs also make it adaptable to facilities running mixed pallet types on the same line.

If your operation requires weighing pallets before or after the wrap cycle, the Or-3000/4000/5000 1650mm Table Platform Scale - 3000kg is a compatible accessory designed to work with this turntable size. To discuss which mast height and turntable configuration suits your operation, contact our team for a tailored quote.
