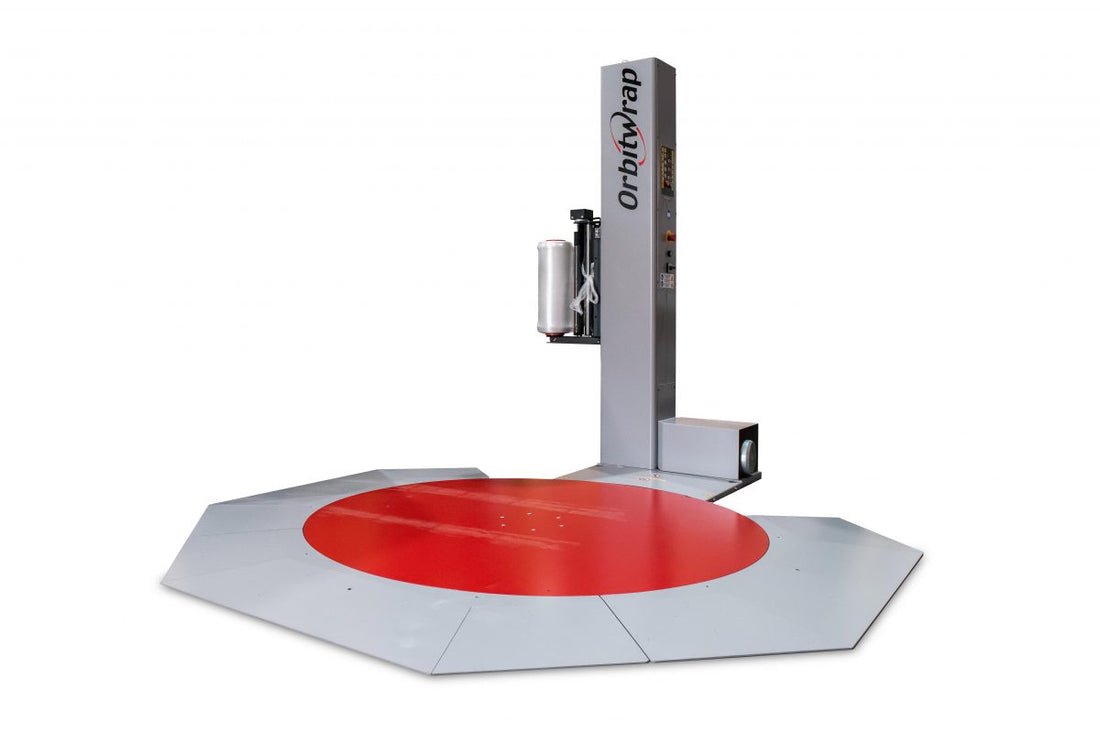

OR-4000L Orbitwrap Low-Profile Turntable Stretch Wrapper 2.2m Wrap Height - 1.65m Table - Electronic Tension Contr

SKU: OR-4000L
Regular price
$22,077.00 AUD
Regular price
Sale price
$22,077.00 AUD

The OR-4000L low-profile stretch wrapper 2.2m is a turntable pallet wrapping machine built for operations that load pallets at floor level using a standard pallet truck. With a turntable height of just 26mm, it accepts pallet trucks directly - no floor pit, no ramp modification, and no elevated loading platform required. A built-in ramp is included for smooth, safe pallet entry onto the turntable.

Key Features of the OR-4000L Low-Profile Stretch Wrapper

The OR-4000L low-profile stretch wrapper 2.2m is designed around an electromagnetic brake film carriage that delivers controlled, consistent film tension throughout every wrap cycle. Electronic tension control protects loads from over-tensioning damage while ensuring adequate film stretch for secure unitisation. The features below are included as standard:

  • 26mm turntable height - accepts standard pallet trucks without a pit or ramp modification
  • Built-in ramp for smooth, safe pallet entry
  • 1.65m (1650mm) diameter turntable to accommodate standard pallet sizes
  • 2.2m (2200mm) standard wrap height; optional heights of 2500mm, 2700mm, 3000mm, 3300mm, and 3700mm available
  • Electromagnetic brake film carriage for electronic tension control
  • Variable film carriage and turntable speeds for flexible wrapping configuration
  • Photocell eye for automatic load height detection - no manual adjustment needed between loads
  • Automatic and manual wrapping programs with 3 + 1 programmable settings
  • Soft-start and soft-stop turntable drive to reduce load shifting during acceleration and deceleration
  • Heavy-duty industrial chain driven turntable for durability in continuous use
  • Safety crush prevention device fitted to the carriage
  • Easy-to-read operating panel for straightforward daily operation
  • Optional black photocell eye available for detecting dark or black products
  • Available mast heights: 2400mm and 2700mm; 2700mm mast also available with 1800mm diameter turntable

Typical Applications

The OR-4000L low-profile stretch wrapper 2.2m suits distribution centres, manufacturing facilities, and warehouses where pallets are built at floor level and moved by pallet jack. Its low-profile turntable removes the need for elevated loading infrastructure, making it practical for operations handling mixed or irregular loads, food and beverage pallets, hardware and building materials, or general freight consolidation. The programmable wrap settings allow different wrap recipes to be stored for varying load types, reducing operator setup time between product runs. The soft-start and soft-stop turntable function also makes this machine a sound choice for stabilising top-heavy or unstable loads during the wrap cycle.

The OR-4000L low-profile stretch wrapper is well suited to sites that need a reliable, low-maintenance solution without the floor modifications that higher-profile turntables typically require. The 3 + 1 programmable settings give operators the ability to configure consistent wrap profiles for different SKUs or load sizes without manual recalibration each time. For sites that also require integrated weighing, the Or-3000/4000/5000 1650mm Table Platform Scale - 3000kg is designed to work directly with the OR-4000L's 1.65m turntable. For operations needing wrapping flexibility without a fixed installation, a portable wrapping solution may be considered as a complementary option.

The OR-4000L low-profile stretch wrapper 2.2m is a turntable pallet wrapping machine built for operations that load pallets at floor level using a standard pallet truck. With a turntable height of just 26mm, it accepts pallet trucks directly - no floor pit, no ramp modification, and no elevated loading platform required. A built-in ramp is included for smooth, safe pallet entry onto the turntable.

Key Features of the OR-4000L Low-Profile Stretch Wrapper

The OR-4000L low-profile stretch wrapper 2.2m is designed around an electromagnetic brake film carriage that delivers controlled, consistent film tension throughout every wrap cycle. Electronic tension control protects loads from over-tensioning damage while ensuring adequate film stretch for secure unitisation. The features below are included as standard:

  • 26mm turntable height - accepts standard pallet trucks without a pit or ramp modification
  • Built-in ramp for smooth, safe pallet entry
  • 1.65m (1650mm) diameter turntable to accommodate standard pallet sizes
  • 2.2m (2200mm) standard wrap height; optional heights of 2500mm, 2700mm, 3000mm, 3300mm, and 3700mm available
  • Electromagnetic brake film carriage for electronic tension control
  • Variable film carriage and turntable speeds for flexible wrapping configuration
  • Photocell eye for automatic load height detection - no manual adjustment needed between loads
  • Automatic and manual wrapping programs with 3 + 1 programmable settings
  • Soft-start and soft-stop turntable drive to reduce load shifting during acceleration and deceleration
  • Heavy-duty industrial chain driven turntable for durability in continuous use
  • Safety crush prevention device fitted to the carriage
  • Easy-to-read operating panel for straightforward daily operation
  • Optional black photocell eye available for detecting dark or black products
  • Available mast heights: 2400mm and 2700mm; 2700mm mast also available with 1800mm diameter turntable

Typical Applications

The OR-4000L low-profile stretch wrapper 2.2m suits distribution centres, manufacturing facilities, and warehouses where pallets are built at floor level and moved by pallet jack. Its low-profile turntable removes the need for elevated loading infrastructure, making it practical for operations handling mixed or irregular loads, food and beverage pallets, hardware and building materials, or general freight consolidation. The programmable wrap settings allow different wrap recipes to be stored for varying load types, reducing operator setup time between product runs. The soft-start and soft-stop turntable function also makes this machine a sound choice for stabilising top-heavy or unstable loads during the wrap cycle.

The OR-4000L low-profile stretch wrapper is well suited to sites that need a reliable, low-maintenance solution without the floor modifications that higher-profile turntables typically require. The 3 + 1 programmable settings give operators the ability to configure consistent wrap profiles for different SKUs or load sizes without manual recalibration each time. For sites that also require integrated weighing, the Or-3000/4000/5000 1650mm Table Platform Scale - 3000kg is designed to work directly with the OR-4000L's 1.65m turntable. For operations needing wrapping flexibility without a fixed installation, a portable wrapping solution may be considered as a complementary option.
