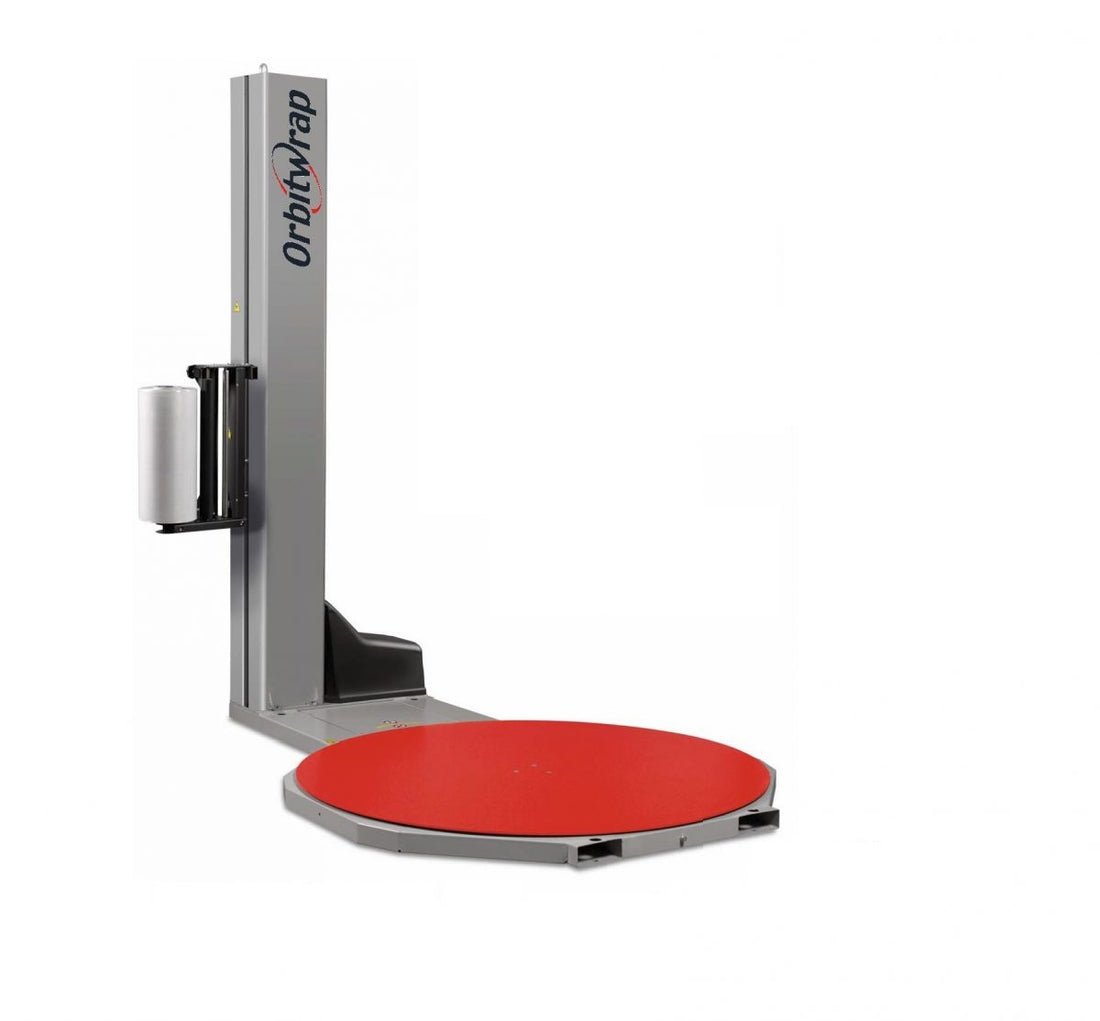

The OR-3000 stretch wrapper friction brake 2.2m is a semi-automatic pallet wrapping machine made in Italy, designed for warehouses, distribution centres, and manufacturing facilities that need dependable wrapping performance without the added complexity of a powered pre-stretch system. With a 2.2-metre maximum wrap height, a 1650mm diameter turntable, and a 2000 kg load capacity, it handles the majority of standard pallet sizes encountered in Australian operations.
Key Features of the OR-3000 Stretch Wrapper Friction Brake
The OR-3000 stretch wrapper friction brake 2.2m combines a practical, straightforward feature set with simple day-to-day operation. Standard specifications and capabilities include:
- 2.2-metre maximum wrap height - suitable for standard and tall pallet loads
- 1650mm diameter turntable - accommodates a wide range of pallet footprints
- 2000 kg load capacity
- Friction brake film carriage - provides passive film tension; a simple, cost-effective tension control method for general pallet wrapping tasks
- Semi-automatic wrapping cycle - operator initiates the wrap; the machine handles height detection and film carriage travel automatically
- Photoelectric sensor - automatically detects pallet height for consistent film coverage
- Soft start/stop system - reduces load shifting during turntable rotation
- Easy-to-use control panel
- Adjustable film carriage - accommodates different pallet sizes and shapes
- 230VAC power supply
- Made in Italy
- Available mast heights: 2400mm or 2700mm. The 2700mm mast is also available paired with an 1800mm diameter turntable for wider pallet footprints
- Ex-stock in Melbourne - available for next-working-day dispatch
Optional Accessories
The OR-3000 can be configured with the following optional additions:
- Black photocell eye - for detecting black or dark-coloured products that a standard photocell may not read reliably
- Pallet truck ramp - allows easy forklift or pallet jack access to the turntable
- Platform scale (3000 kg) - the compatible OR-3000/4000/5000 1650mm table platform scale is available as a separate accessory for weighing loads directly on the turntable
Typical Applications
The OR-3000 stretch wrapper friction brake 2.2m suits operations wrapping general goods, boxed products, or stable unitised loads on a regular basis where a passive tension system is sufficient for the film and load types in use. The semi-automatic cycle allows staff to initiate a wrap and attend to other tasks while the machine completes the cycle, improving throughput without additional complexity. The soft start/stop system is particularly useful where load stability is a concern, reducing the risk of items shifting on the pallet during rotation. With a 2000 kg capacity and 1650mm turntable, it covers the majority of standard pallet configurations found across Australian warehousing and logistics operations.
Choosing the Right Configuration
The OR-3000 stretch wrapper friction brake is available with a 2400mm or 2700mm mast height. The 2700mm mast option is also offered with a larger 1800mm diameter turntable to accommodate wider pallet footprints. If your operation requires powered pre-stretch film delivery rather than a friction brake system, the Orbitwrap Advanced Stretch Wrapper with 250% pre-stretch carriage offers that capability at the same 2.2-metre wrap height and 1.65-metre table size.
The OR-3000 stretch wrapper friction brake 2.2m is held ex-stock in Melbourne and can be dispatched the following working day. Contact us to confirm the right mast height and turntable configuration for your site.
