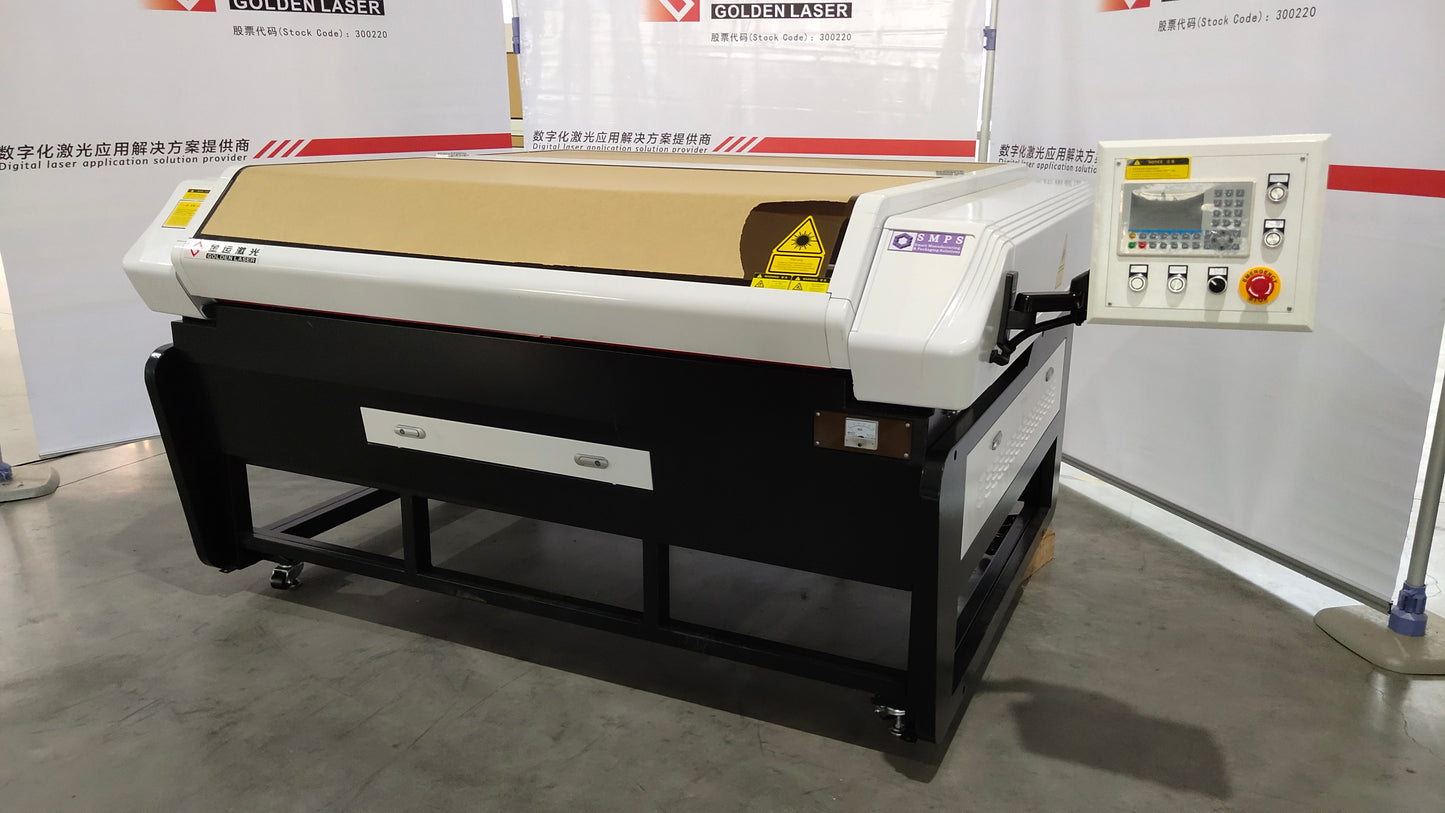

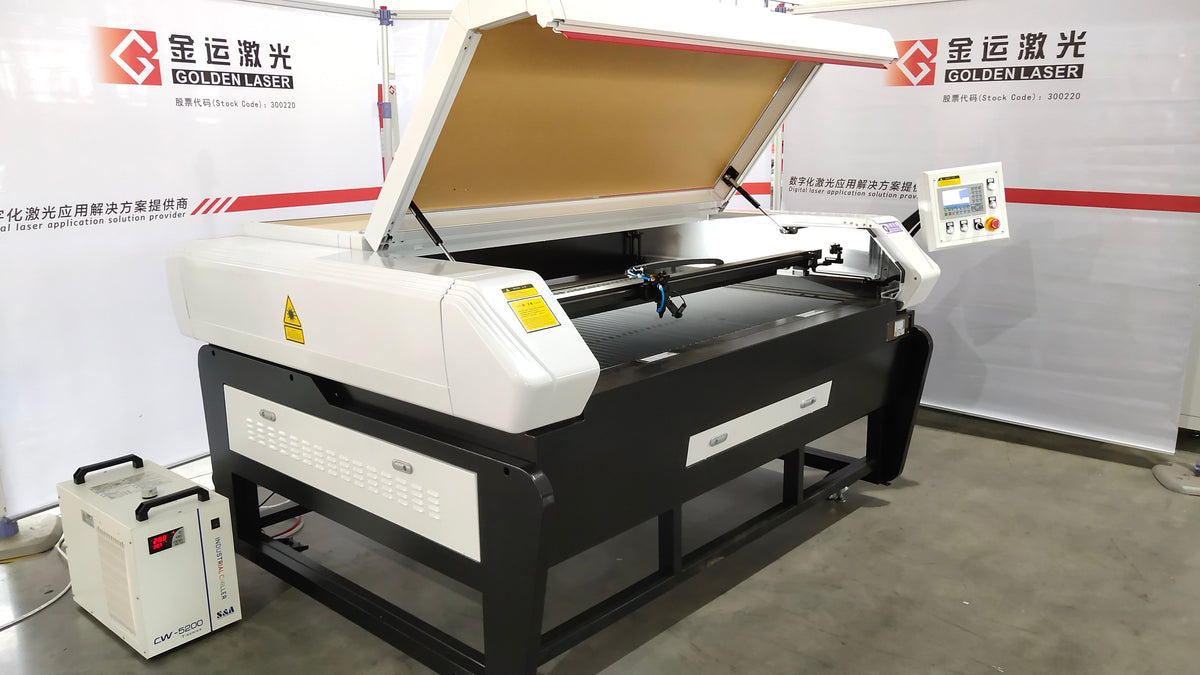

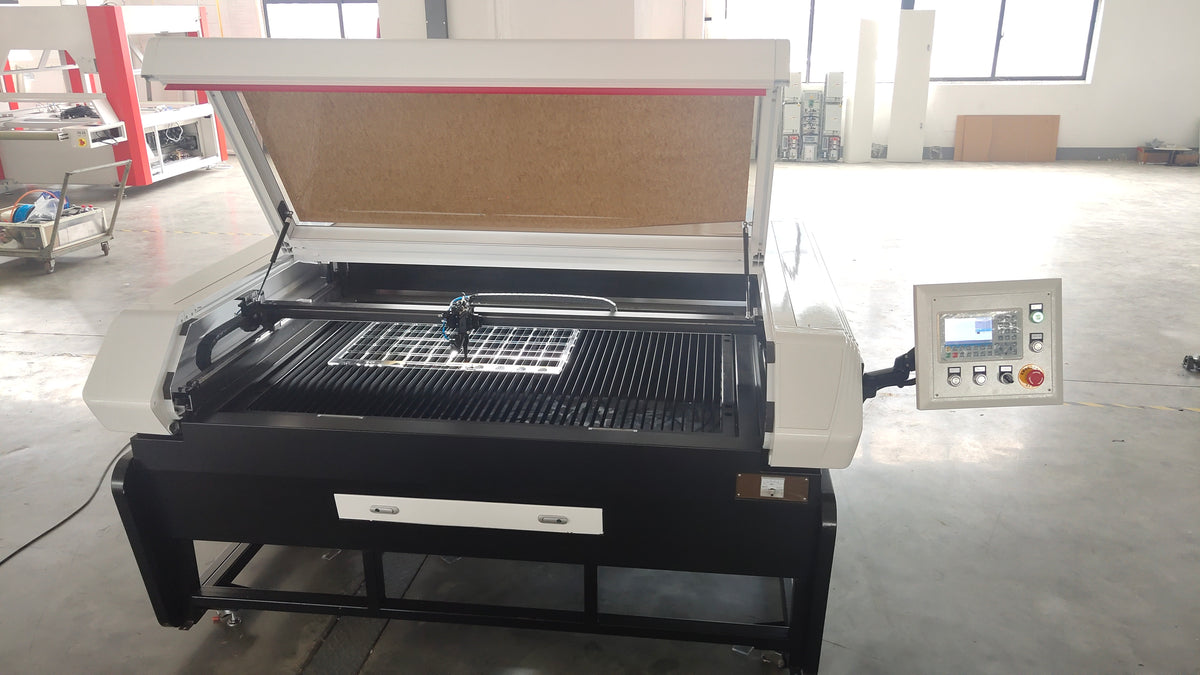

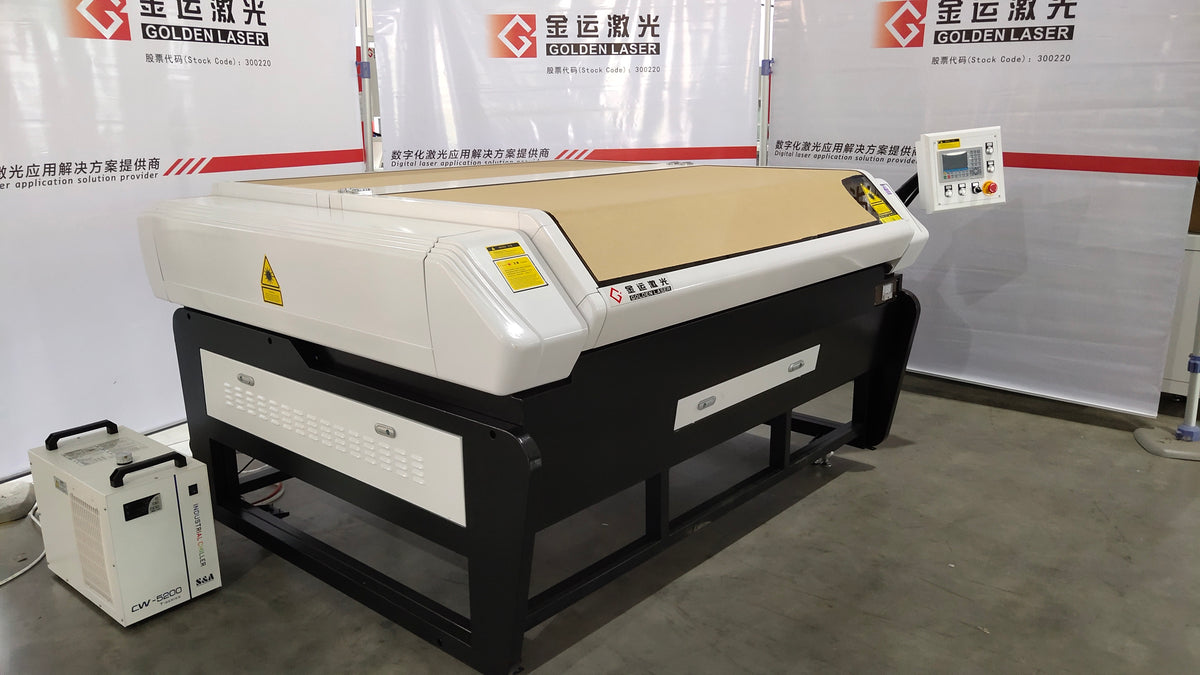

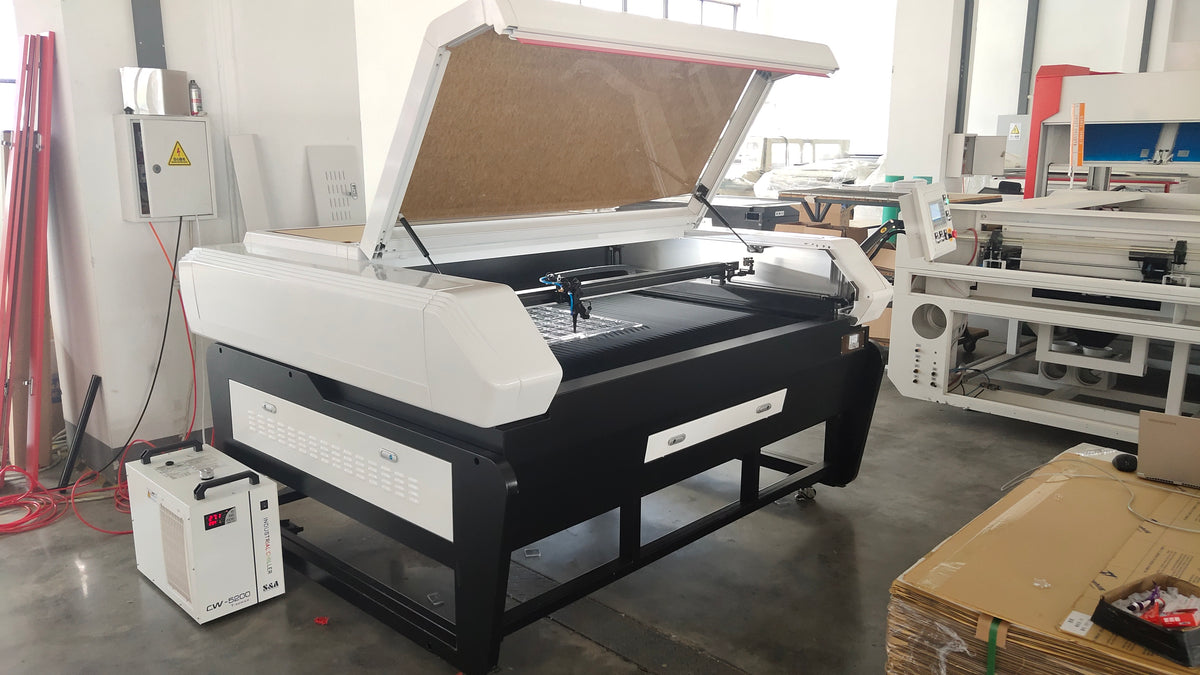

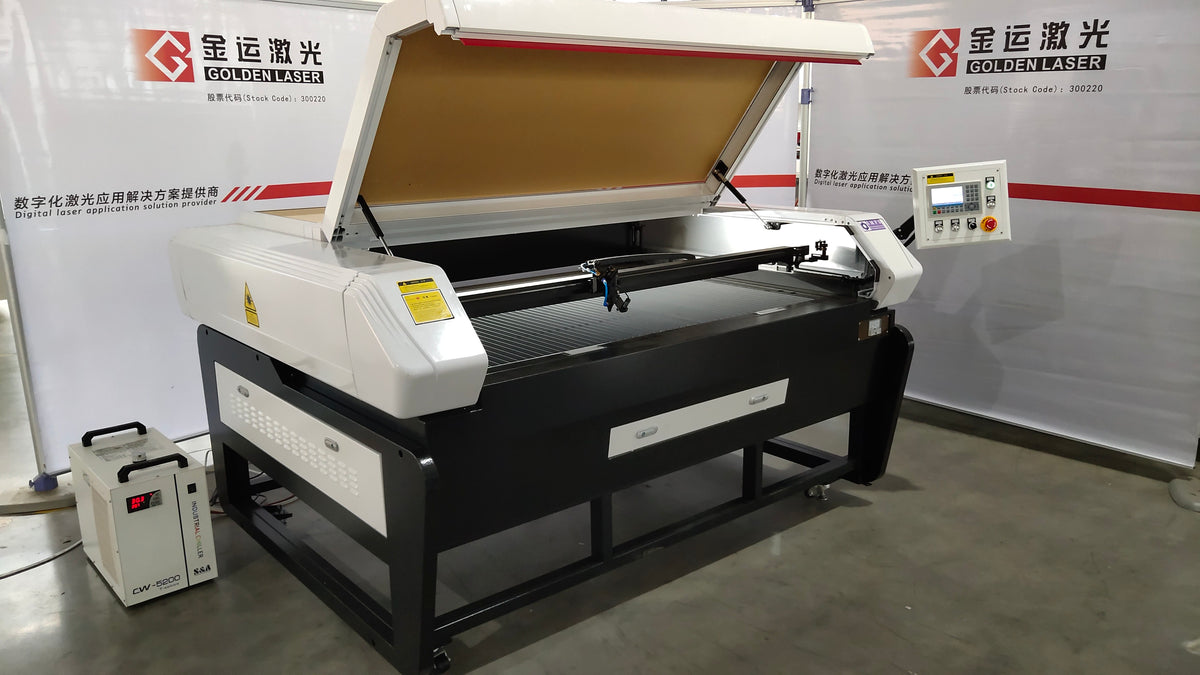

Laser Cutting Engraving Machine with Electric Lift Table

Regular price
$16,500.00 AUD
Regular price
$15,500.00 AUD
Sale price
$16,500.00 AUD

GOLDEN LASER MARS SERIES MJG13090SG DESIGNED AND BUILT TO THE SPECIFICATION OF SMPS.

Exclusively sold by Plasquip and Smart Manufacturing & Packaging Solutions.

1300mm×900mm or 1000mm x 600mm table dimensions
Motorized lifting worktable. Lift table goes up to 150mm
CO2 glass laser tube 80 watts ~ 300 watts
Honeycomb table and knife table options
Chiller, compressor & exhaust fan included


THE QUALITY/FEATURE/PRICE PACKAGE IS UNBEATABLE


Product Application
With its high power and good levels of control, Co2 lasers can be used for applications requiring precision or mass production. Co2 laser engravers and cutters are highly precise and can be used to create designs, decorations, and the like on just about any material you can think of, including wood, plastic, metal, fabrics and paper to name a few. Co2 laser have found wide usage in the signage industry and are widely used to make items such as COVID safety screens. This machine is designed with everyone minder low power models are perfect for the home user and the more powerful machines can handle the most demanding businesses and industrial uses. This machine is designed with a sheet feed through system which allows full-size 2400 x 1200mm sheets to be processed. Just perfect for uses that are looking to process full size sheets.

Adopting the industrialised assembly line mass production pioneered in the laser industry, the MARS Series Laser Machine has the features of beautiful appearance, stable structure, excellent performance and easy maintenance.

With electric lifting worktable, the laser machine can automatically adjust the height of working table to satisfy the demands of cutting different thicknesses materials. The lifting height can reach 150mm which allows the cutting of box shapes. This model has only recently updated to a Ruida controller and works perfectly with RDWorks and is compatible with exporting files from variety of software programs such as Illustrator, Photoshop and Solidworks

Warranty
These machines come with a 12 month warranty on the machine and also the Laser Tube for 110W and above. You won't find others offering that length f warranty on a Glass Laser Tube.

Warranty on the 80W laser tube is 6 Months.


Specifications

Model No. MJG-13090SG
Laser type CO2 DC glass laser tube
Laser power 80W / 110W / 150W / 300W
Working area 1300mm×900mm or 1000mm x 600mm
Working table Honeycomb working table / knife working table
Table Movement 0 – 150mm
Cutting Speed 0 – 24,000mm/min
Positioning accuracy ±0.1mm

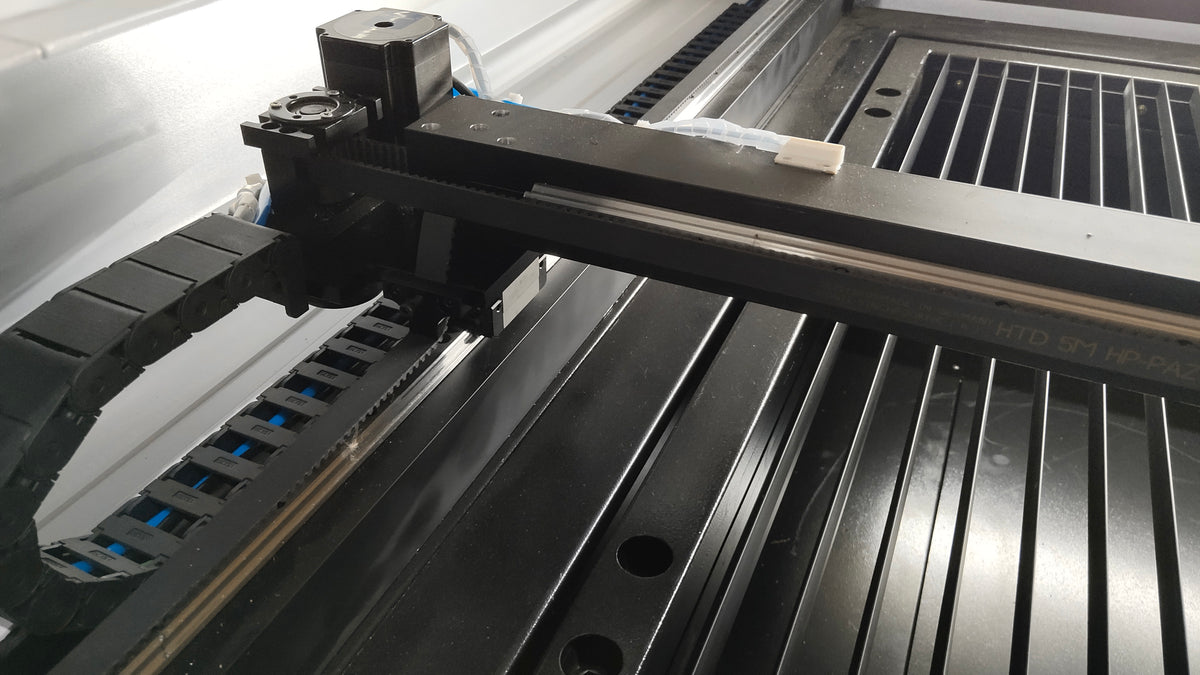

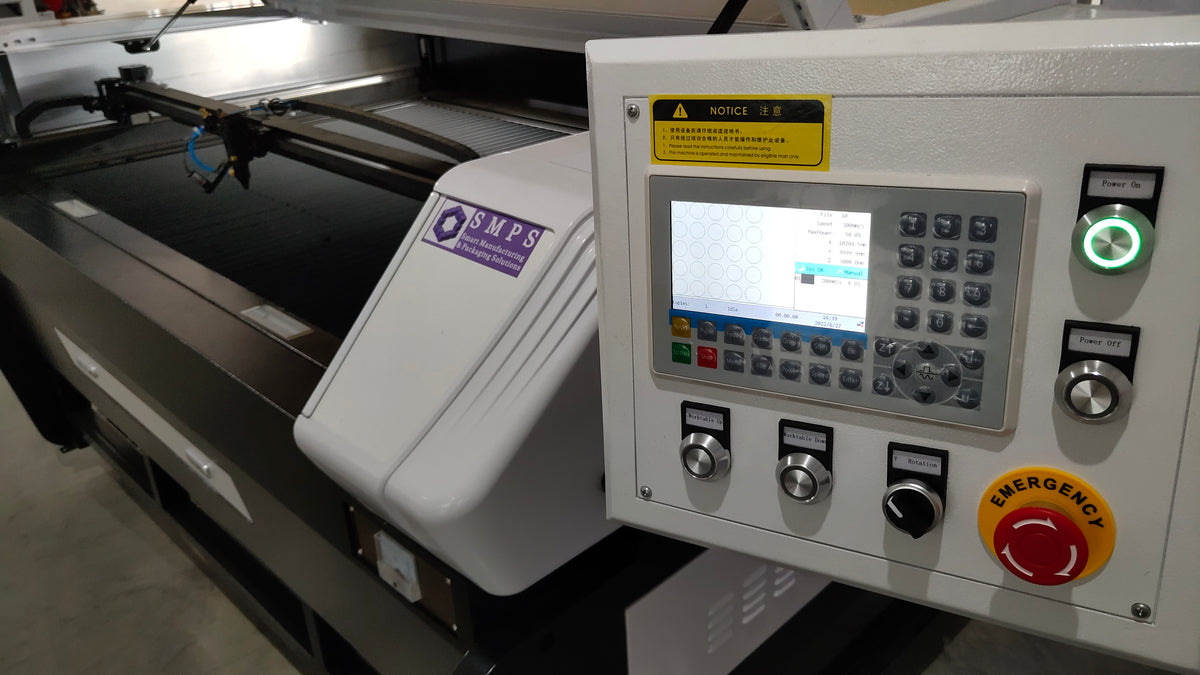

Motion system RUIDA CONTROLLER -Step motor
Cooling system Constant temperature water chiller
Exhaust system 550W or 1100W Exhaust fan
Air blower Mini air compressor
Power supply AC220V±5%  50 / 60Hz
Graphic Format Supported PLT, DXF, AI, BMP, DST, etc.
External dimensions 2150mm×1930mm×1230mm
Net weight 500Kg
Options Auto focus system, rotary engraving device, Servo motor



Our Cutting Power
Our SLW Glass Laser Tubes are widely used in textile industry, medical, industrial and other areas and has the advantages of long working life, good laser beam quality, high power, stable performance, fast response and so on, is the ideal accessory products for laser cutting machine, laser engraving machine, medical laser machine and other equipment.

SLW has a production area of 2000m2, and a 800m2 class 1000 dust clean room. Plus SLW have their own light Industrial workshop, equipped with light lathe, CNC grinding machines, high precision parallel light pipe, ultra high vacuum gas distribution station and ultra high vacuum helium mass spectrometer leak detector.

Simply put you cannot buy a better Glass Laser tube than an SLW. But we don't end there all our machines come with the top of the Line II-VI optics, without great quality optics you don't get the best cutting performance and there is no better optics than II-VI

Service and Support
At Plasquip we offer free life time phone and on line support and our technicians can install and service your machine. So when you buy your machine we are not just disappearing after the sale. We are here to help.


See the latest 150W version in action

Golden LaserSMPS 13090SG from Peter Shephard on Vimeo.


ALL PRICES QUOTED INCLUDED DELIVERY TO CAPITAL CITIES IN AUSTRALIA. PRICES DO NOT INCLUDE INSTALLATION AND TRAINING. FOR DELIVERY COST OUTSIDE OF THE CAPITAL CITIES AND INSTALLATION AND TRAINING COST PLEASE CONTACT US.

YES WE ARE NOT THE CHEAPEST BUT WE DO OFFER THE BEST VALUE FOR MONEY.

GOLDEN LASER MARS SERIES MJG13090SG DESIGNED AND BUILT TO THE SPECIFICATION OF SMPS.

Exclusively sold by Plasquip and Smart Manufacturing & Packaging Solutions.

1300mm×900mm or 1000mm x 600mm table dimensions
Motorized lifting worktable. Lift table goes up to 150mm
CO2 glass laser tube 80 watts ~ 300 watts
Honeycomb table and knife table options
Chiller, compressor & exhaust fan included


THE QUALITY/FEATURE/PRICE PACKAGE IS UNBEATABLE


Product Application
With its high power and good levels of control, Co2 lasers can be used for applications requiring precision or mass production. Co2 laser engravers and cutters are highly precise and can be used to create designs, decorations, and the like on just about any material you can think of, including wood, plastic, metal, fabrics and paper to name a few. Co2 laser have found wide usage in the signage industry and are widely used to make items such as COVID safety screens. This machine is designed with everyone minder low power models are perfect for the home user and the more powerful machines can handle the most demanding businesses and industrial uses. This machine is designed with a sheet feed through system which allows full-size 2400 x 1200mm sheets to be processed. Just perfect for uses that are looking to process full size sheets.

Adopting the industrialised assembly line mass production pioneered in the laser industry, the MARS Series Laser Machine has the features of beautiful appearance, stable structure, excellent performance and easy maintenance.

With electric lifting worktable, the laser machine can automatically adjust the height of working table to satisfy the demands of cutting different thicknesses materials. The lifting height can reach 150mm which allows the cutting of box shapes. This model has only recently updated to a Ruida controller and works perfectly with RDWorks and is compatible with exporting files from variety of software programs such as Illustrator, Photoshop and Solidworks

Warranty
These machines come with a 12 month warranty on the machine and also the Laser Tube for 110W and above. You won't find others offering that length f warranty on a Glass Laser Tube.

Warranty on the 80W laser tube is 6 Months.


Specifications

Model No. MJG-13090SG
Laser type CO2 DC glass laser tube
Laser power 80W / 110W / 150W / 300W
Working area 1300mm×900mm or 1000mm x 600mm
Working table Honeycomb working table / knife working table
Table Movement 0 – 150mm
Cutting Speed 0 – 24,000mm/min
Positioning accuracy ±0.1mm
Motion system RUIDA CONTROLLER -Step motor
Cooling system Constant temperature water chiller
Exhaust system 550W or 1100W Exhaust fan
Air blower Mini air compressor
Power supply AC220V±5%  50 / 60Hz
Graphic Format Supported PLT, DXF, AI, BMP, DST, etc.
External dimensions 2150mm×1930mm×1230mm
Net weight 500Kg
Options Auto focus system, rotary engraving device, Servo motor



Our Cutting Power
Our SLW Glass Laser Tubes are widely used in textile industry, medical, industrial and other areas and has the advantages of long working life, good laser beam quality, high power, stable performance, fast response and so on, is the ideal accessory products for laser cutting machine, laser engraving machine, medical laser machine and other equipment.

SLW has a production area of 2000m2, and a 800m2 class 1000 dust clean room. Plus SLW have their own light Industrial workshop, equipped with light lathe, CNC grinding machines, high precision parallel light pipe, ultra high vacuum gas distribution station and ultra high vacuum helium mass spectrometer leak detector.

Simply put you cannot buy a better Glass Laser tube than an SLW. But we don't end there all our machines come with the top of the Line II-VI optics, without great quality optics you don't get the best cutting performance and there is no better optics than II-VI

Service and Support
At Plasquip we offer free life time phone and on line support and our technicians can install and service your machine. So when you buy your machine we are not just disappearing after the sale. We are here to help.


See the latest 150W version in action

Golden LaserSMPS 13090SG from Peter Shephard on Vimeo.


ALL PRICES QUOTED INCLUDED DELIVERY TO CAPITAL CITIES IN AUSTRALIA. PRICES DO NOT INCLUDE INSTALLATION AND TRAINING. FOR DELIVERY COST OUTSIDE OF THE CAPITAL CITIES AND INSTALLATION AND TRAINING COST PLEASE CONTACT US.

YES WE ARE NOT THE CHEAPEST BUT WE DO OFFER THE BEST VALUE FOR MONEY.
