Synchronized motion meets perfect balance, engineered for consistent accuracy.
Part of HARSLE's SyncBend series — Tandem & Synchronized Systems, built for extra-long workpieces (e.g. lighting poles, wind towers).

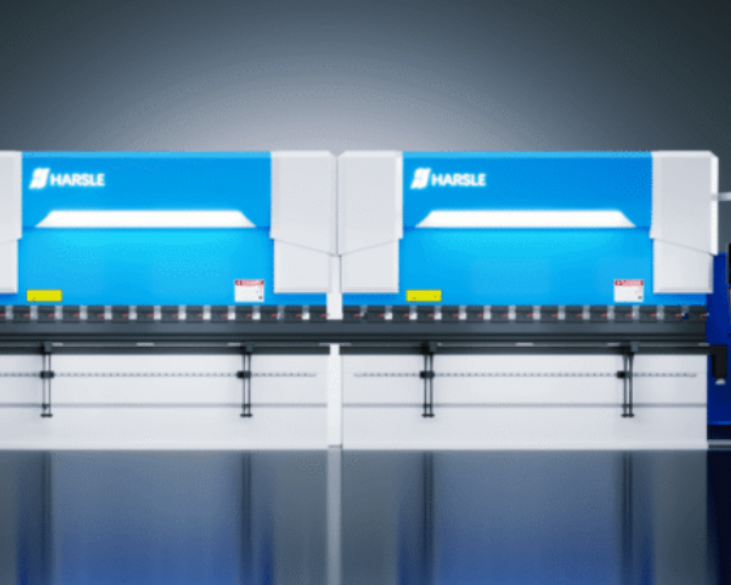

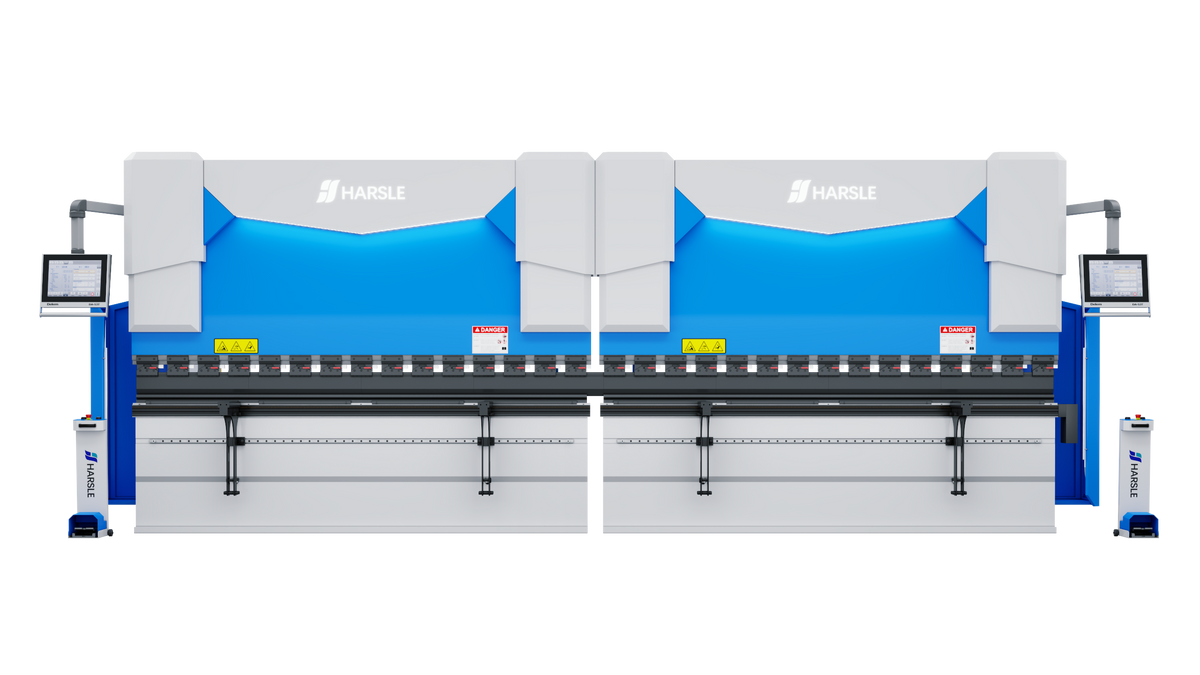

This 2000120 configuration delivers 2000 tonnes (20000 kN) of bending force across a 12000×2mm bending length.
- Linked (synchronized) or fully independent tandem operation
- Zero-latency real-time synchronization across machines
- Engineered for ultra-long, oversized workpieces
- Giga-platform processing for large-scale fabrication
- Laser protection and light curtain supplied as standard; AKAS upgrade available
CNC Control Options
- DELEM 58Tx: 18.5-inch touchscreen with graphical programming, bending-process calculation and collision checking.
- DELEM 53Tx: 15.6-inch touchscreen with integrated 2D programming for intuitive, accurate operation.
Flexible Mobility & Super Span
Supports both synchronized (linked) and fully independent operation, adapting to different production needs while handling ultra-long workpieces with consistent, precise bending across the full span.
Safety Systems
- Light Curtain (Standard): Infrared light curtain safety system provides full-length protection along the bending zone, instantly halting ram movement when the safety field is breached.
- Laser Protection (Standard): Laser-based safety device mounted on the ram provides a narrow detection zone close to the tooling point, allowing faster approach speeds without compromising protection.
- AKAS Laser Protection (Upgrade): Advanced AKAS laser protection with automatic height adjustment delivers smarter safety, enabling maximum productivity without compromising operator protection.
Automation & Handling
- Zero-Latency Synchronization: Advanced real-time synchronization technology ensures instant response and flawless coordination between machines, maintaining identical bending accuracy across every unit.
- Giga-Platform Processing: Built for large-scale fabrication, handling oversized components with high load capacity and exceptional structural stability.
Precision Tooling
Punches & Dies: gooseneck, acute, radius, hemming and multi-V profiles, hardened to 58-62 HRC. Quick-Clamp Systems: tool changes in under 3 minutes, WILA/Amada/Euro compatible. ±0.01mm CNC precision-ground for repeatable bending angles.
