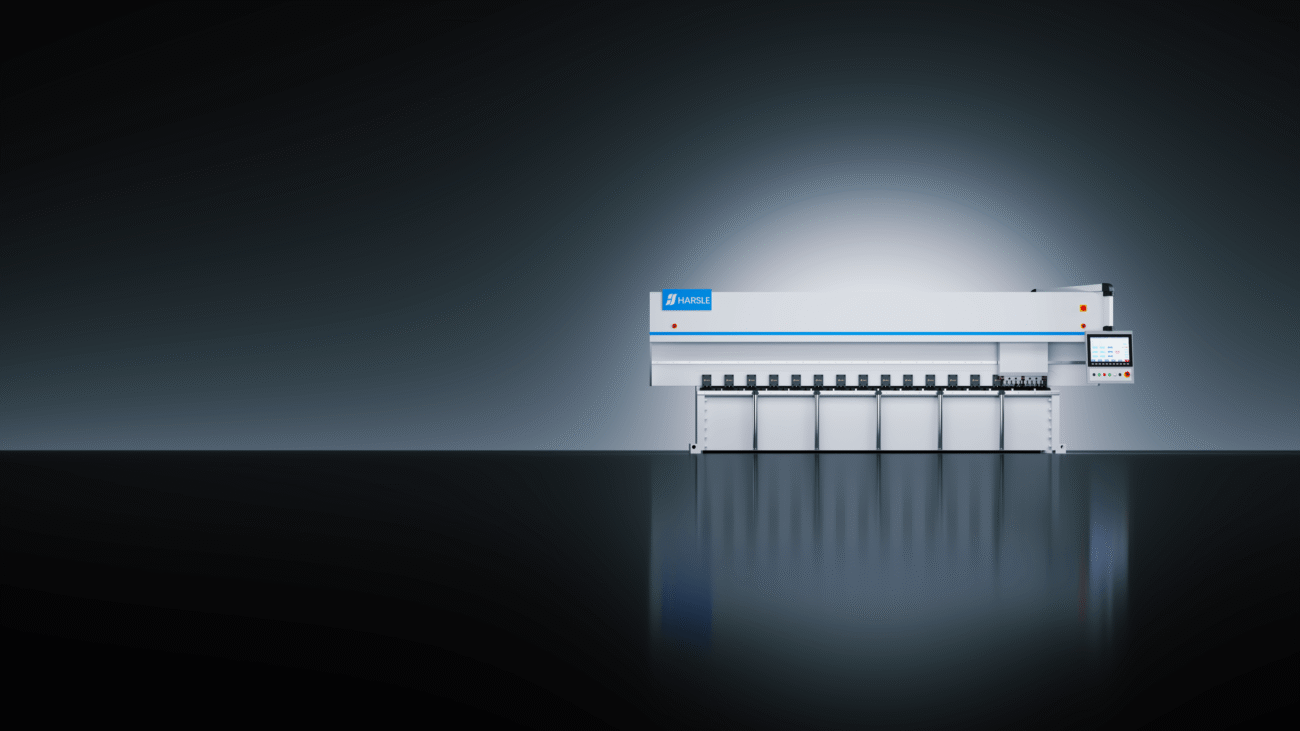

HARSLE ProGroove 1542 V Grooving Machine — 4200×1500mm
Freight quoted separately
Request a written quotation to confirm the selected configuration, availability and delivery cost.
Request a quote including freightProduct information
Precision vertical grooving with stable performance and flexible operation.
Part of HARSLE's ProGroove series — Vertical V-Grooving Machine Series, built for high-precision decorative work, elevator panels, signage, architectural cladding.
This 1542 configuration processes sheets up to 4200mm × 1500mm, handling material thickness from 0.4-8mm.
- Vertical structure with compact, space-saving footprint
- Vertical blade cutting ensures even force distribution
- Dual blade clamps (Z1/Z2) for fast, efficient blade changes
- Hydraulic clamping — quick locking + lateral clamp for sheet stability
- Foldable front support + rear support for flexible handling
- Optional laser cutting function for expanded processing capability
- ±0.01mm worktable flatness
CNC Axes
- X Axis (Grooving): Controls lateral movement of the tool holder
- Y Axis (Positioning): Handles forward/backward movement of the worktable
- Z Axis (Feeding): Manages vertical movement and cutting depth
Key Specifications
| Machining Capacity Length | 4200 mm |
| Machining Capacity Width | 1500 mm |
| Machining Capacity Thickness | 0.4-8 mm |
| X Axis Max Speed | 90 m/min |
| Y Axis Max Speed | 90 m/min |
| Z Axis Max Speed | 30 m/min |
| Worktable Flatness | ±0.01mm |
| Clamping Cylinder Diameter | 45 mm |
| Dimensions (L*W*H) | 5600*2300*2100 mm |
Frequently Asked Questions
What sheet size can the ProGroove 1542 process?
The ProGroove 1542 handles sheets up to 4200mm long × 1500mm wide, with material thickness from 0.4-8mm. Always choose a model slightly larger than your maximum sheet size to allow comfortable handling and positioning.
Have more questions about HARSLE V grooving machines? See our HARSLE V Grooving Machines FAQ.
