Heavy-duty strength meets extreme stability. Engineered for maximum tonnage.

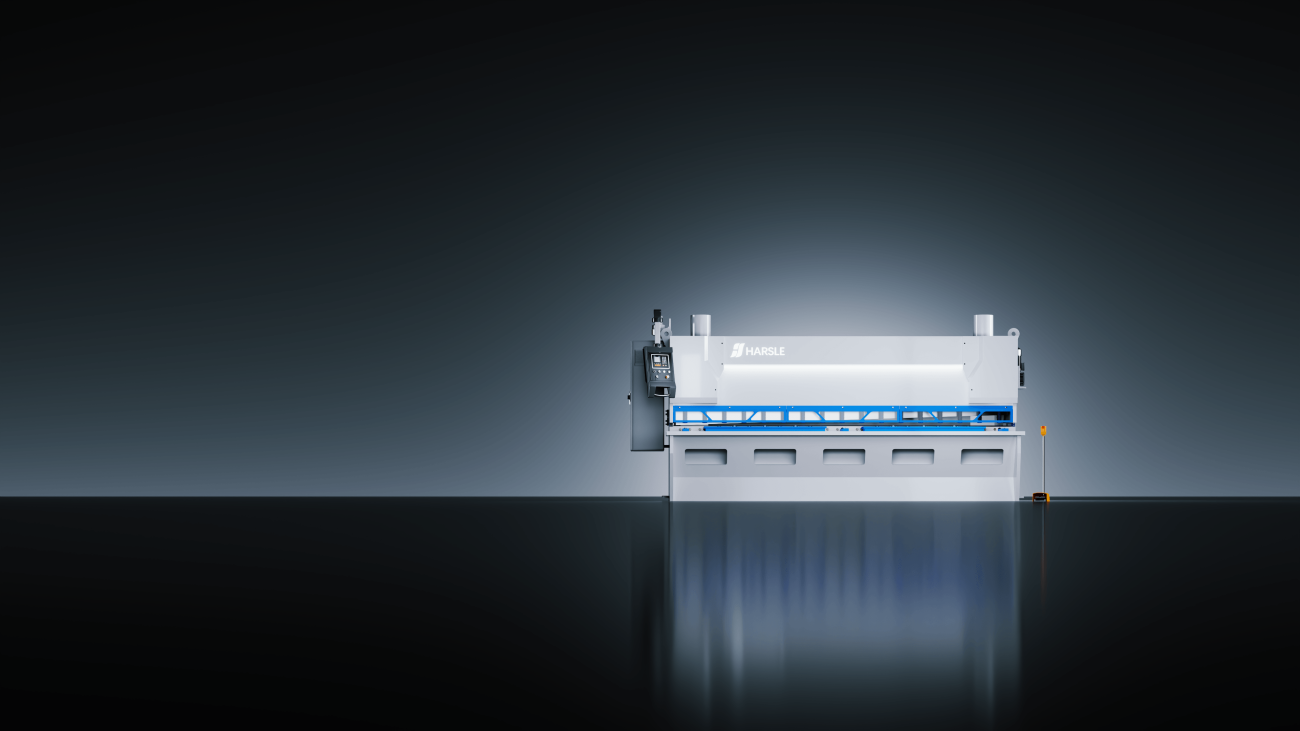

Part of HARSLE's PrimeShear series — Guillotine Shearing Machine Series, built for Thick plate shearing, high-precision industrial cutting, heavy-duty production.
This 0832 configuration cuts material up to 8mm thick, with a maximum cutting length of 3200mm.
- Adjustable blade gap for different materials and thicknesses
- Adjustable cutting angle reduces deformation and improves cut quality
- Smart control options from E21S up to full CNC DAC360Tx
- Automatic safety door switch stops operation when opened
- Optional Anti-Twist System prevents blade deformation during cutting
- Optional servo pump unit for energy-efficient, low-noise hydraulics
- Optional iLoader integrated lifting system for heavy sheet handling
| Max Cutting Thickness | 8 mm |
| Max Cutting Length | 3200 mm |
| Throat Depth | 120 mm |
| Cutting Speed | 10~15 cuts/min |
| Cutting Angle | 0.5~2° |
| Spring Pressure Cylinder | 12 pcs |
| Blade Number | 3 pcs |
| Blade Length | 1100 mm |
| Dimensions (L*W*H) | 3950*1700*2250 mm |
Frequently Asked Questions
What size PrimeShear do I need for 8mm material?
The PrimeShear 0832 cuts mild steel up to 8mm thick, with a maximum cutting length of 3200mm. For harder materials, reduce the rated thickness accordingly (stainless steel is roughly 65% of the mild steel capacity, aluminum roughly 130%). Always choose a model with 20-30% extra capacity for occasional thicker materials.
Have more questions about HARSLE shearing machines? See our HARSLE Shearing Machines FAQ.
