Indicative Price Ex-Works Melbourne Metro

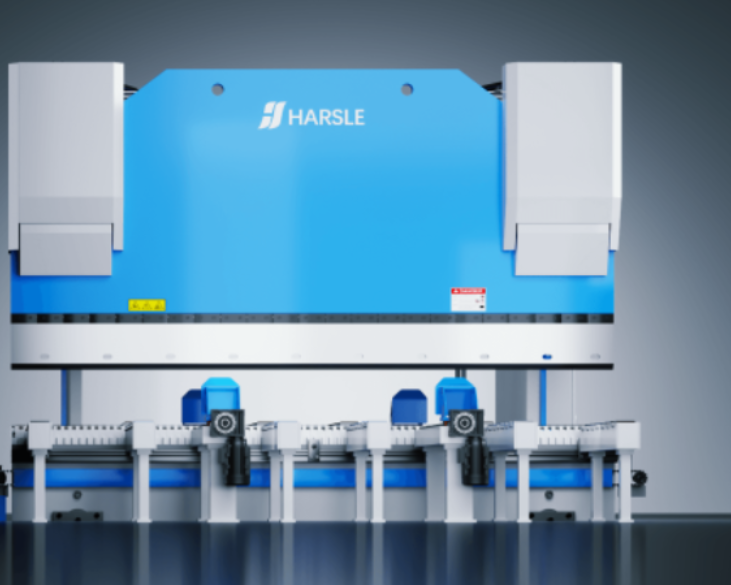

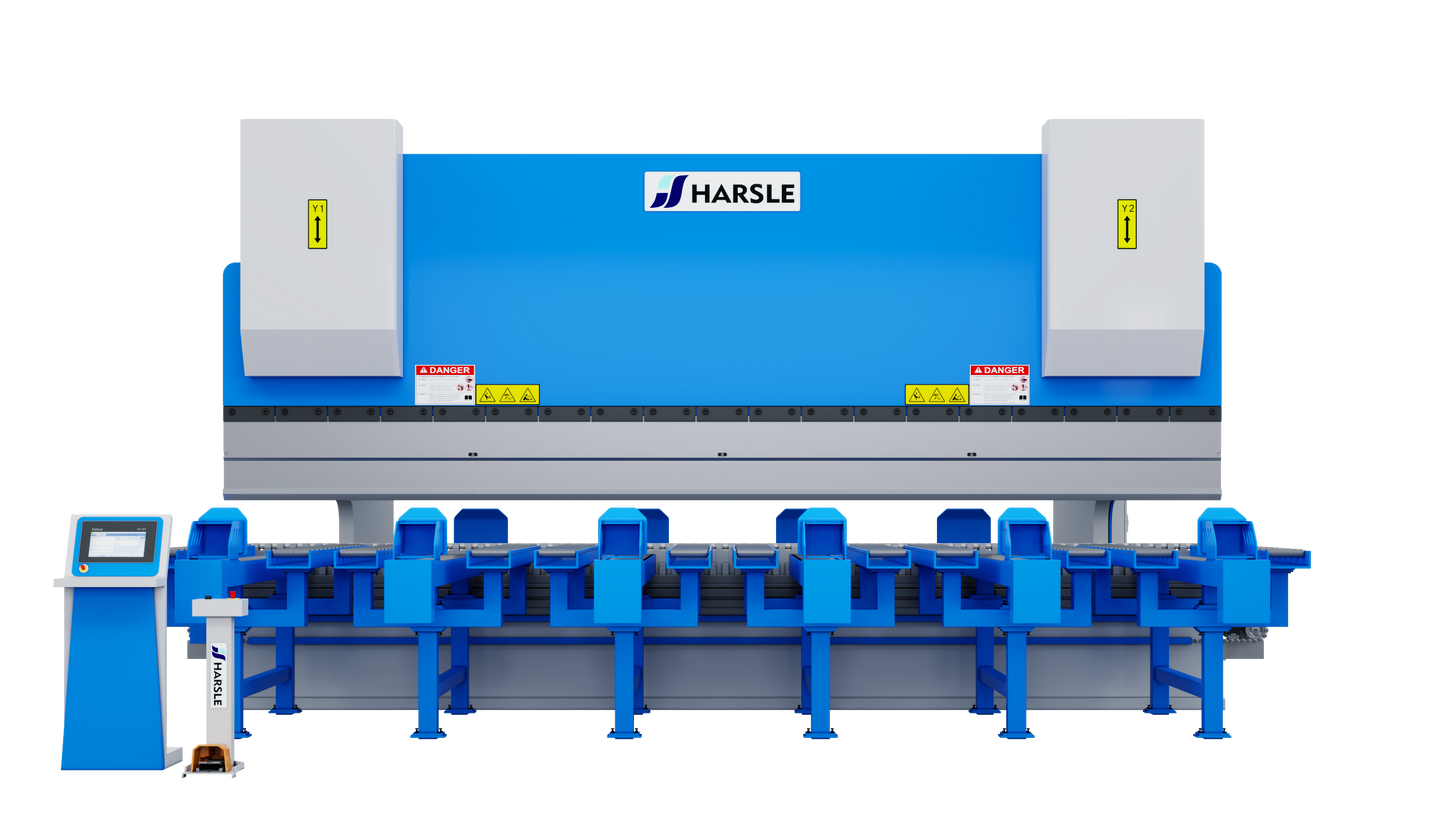

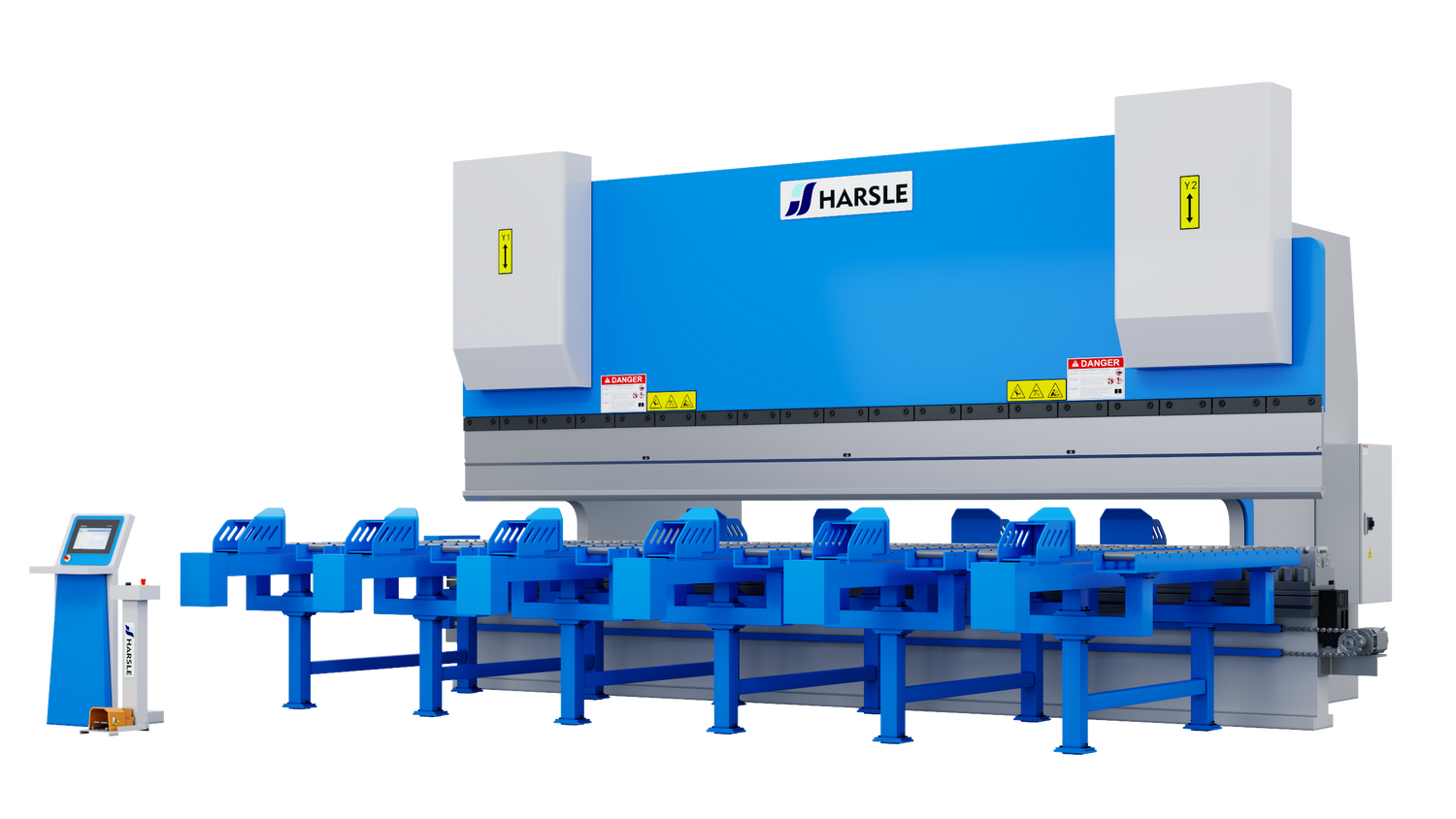

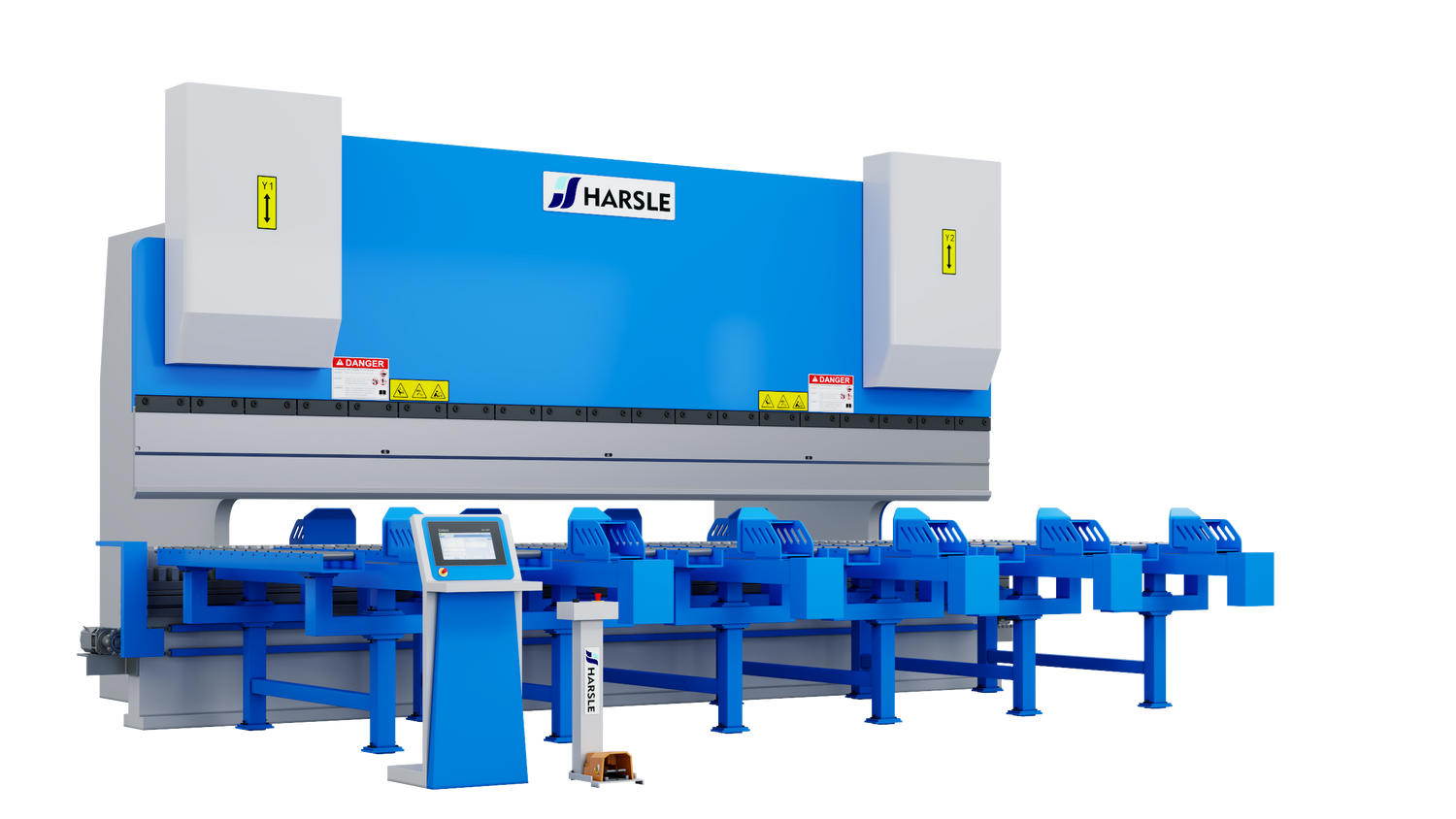

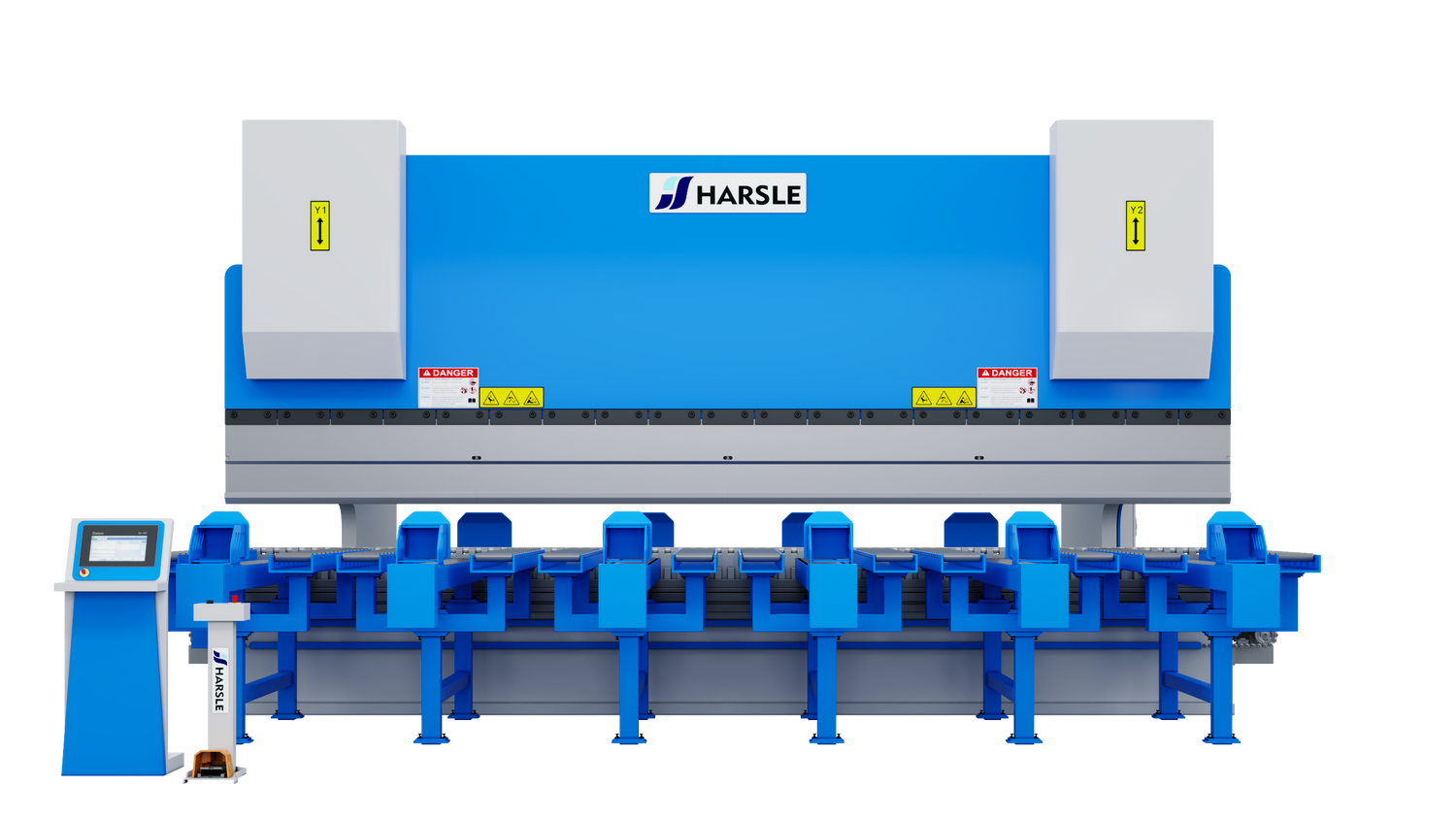

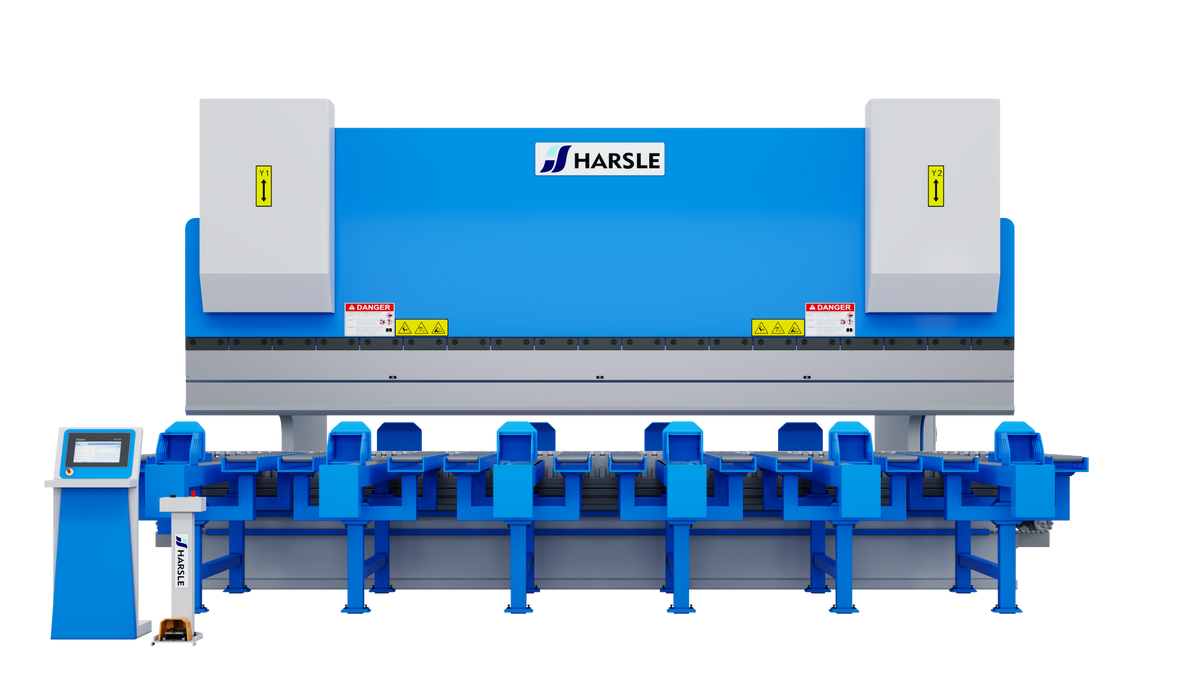

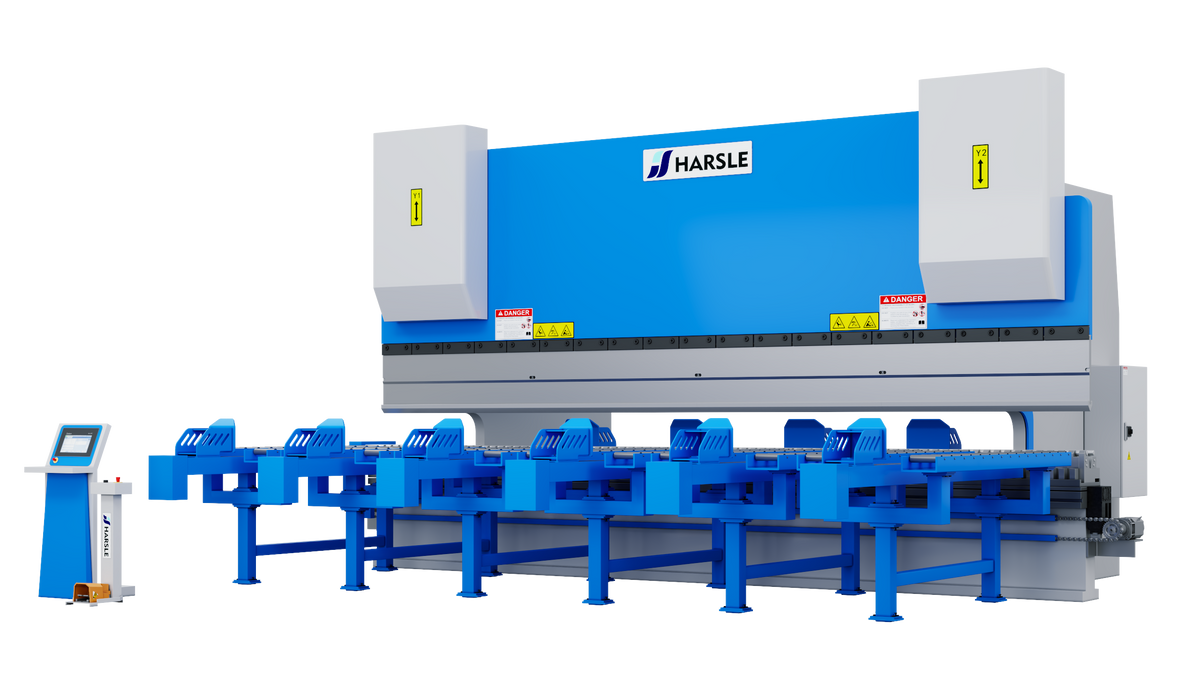

Heavy-duty strength meets extreme stability, engineered for maximum tonnage.
Part of HARSLE's MegaBend series — Heavy-Duty & Large-Scale Bending, built for heavy infrastructure & shipbuilding.
This 80060 configuration delivers 800 tonnes (8000 kN) of bending force across a 6000mm bending length.
A heavy-duty welded structure delivers exceptional rigidity and stability for high-tonnage, high-load bending, handling thick and high-strength materials with consistent accuracy.
Punches & Dies: gooseneck, acute, radius, hemming and multi-V profiles, hardened to 58-62 HRC. Quick-Clamp Systems: tool changes in under 3 minutes, WILA/Amada/Euro compatible. ±0.01mm CNC precision-ground for repeatable bending angles.
| Bending Force | 8000 kN |
| Bending Length | 6000 mm |
| Column Distance | 5000 mm |
| Throat Depth | 600 mm |
| Ram Stroke | 350 mm |
| Daylight (Open Height) | 800 mm |
| Motor | 2x32 KW Servo |
| Down Speed | 90 mm/s |
| Dimensions (L*W*H) | 6260*3650*5300 mm |
What tonnage is the MegaBend 80060?
The MegaBend 80060 delivers 8000 kN (800 tonnes) of bending force across a 6000mm bending length. Required tonnage for a job depends on material type, thickness and bending length — as a guideline, Tonnage = (650 x S^2 x L) / V, where S is material thickness (mm), L is bending length (m) and V is die opening (mm); the V-opening should be roughly 8x material thickness for stock up to 3mm, and 10-12x for heavier plates.
Have more questions about HARSLE press brakes? See our HARSLE Press Brakes FAQ.
Heavy-duty strength meets extreme stability, engineered for maximum tonnage.
Part of HARSLE's MegaBend series — Heavy-Duty & Large-Scale Bending, built for heavy infrastructure & shipbuilding.
This 80060 configuration delivers 800 tonnes (8000 kN) of bending force across a 6000mm bending length.
A heavy-duty welded structure delivers exceptional rigidity and stability for high-tonnage, high-load bending, handling thick and high-strength materials with consistent accuracy.
Punches & Dies: gooseneck, acute, radius, hemming and multi-V profiles, hardened to 58-62 HRC. Quick-Clamp Systems: tool changes in under 3 minutes, WILA/Amada/Euro compatible. ±0.01mm CNC precision-ground for repeatable bending angles.
| Bending Force | 8000 kN |
| Bending Length | 6000 mm |
| Column Distance | 5000 mm |
| Throat Depth | 600 mm |
| Ram Stroke | 350 mm |
| Daylight (Open Height) | 800 mm |
| Motor | 2x32 KW Servo |
| Down Speed | 90 mm/s |
| Dimensions (L*W*H) | 6260*3650*5300 mm |
What tonnage is the MegaBend 80060?
The MegaBend 80060 delivers 8000 kN (800 tonnes) of bending force across a 6000mm bending length. Required tonnage for a job depends on material type, thickness and bending length — as a guideline, Tonnage = (650 x S^2 x L) / V, where S is material thickness (mm), L is bending length (m) and V is die opening (mm); the V-opening should be roughly 8x material thickness for stock up to 3mm, and 10-12x for heavier plates.
Have more questions about HARSLE press brakes? See our HARSLE Press Brakes FAQ.
